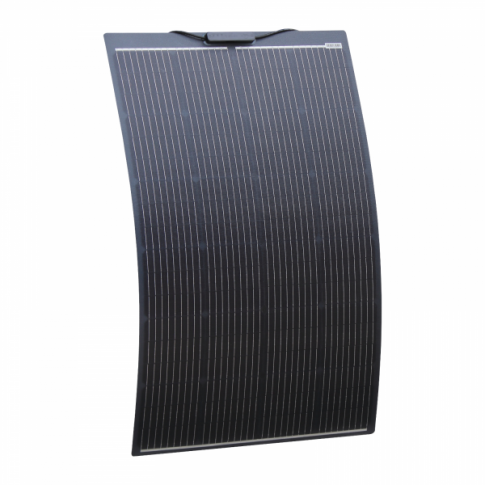

150W black semi-flexible fibreglass solar panel with durable ETFE coating
150W black semi-flexible fibreglass solar panel with durable ETFE coating
SKU:FLPROCB-150M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
150W Semi-Flexible Solar Panel [FLPROCB-150M]
ETFE Coated & Fibreglass Reinforced for Marine & RV Use
The FLPROCB-150M is a high-performance 150W semi-flexible solar panel engineered for harsh environments where traditional rigid panels are unsuitable. Built with high-efficiency 9-busbar monocrystalline cells, this panel maximizes energy harvest even in low-light or cloudy conditions. The black fibreglass-reinforced base provides a sleek, discreet aesthetic, making it ideal for dark-coloured roofs on campervans, motorhomes, and yachts.
Key Features
- ✔ 9-Busbar Cells: Increased efficiency and reliability.
- ✔ ETFE Finish: Anti-reflective, self-cleaning textured surface.
- ✔ Ultra-Thin: Only 2mm profile for aerodynamic installation.
- ✔ Marine Grade: Highly resistant to salt water environments.
- ✔ Lightweight: Fibreglass core weighs only 2.85kg.
Technical Specs
| Peak Power (Pmax) | 150W |
| Max Power Voltage (Vmp) | 19.8V |
| Max Power Current (Imp) | 7.58A |
| Open Circuit Voltage (Voc) | 23.4V |
| Short Circuit Current (Isc) | 8.03A |

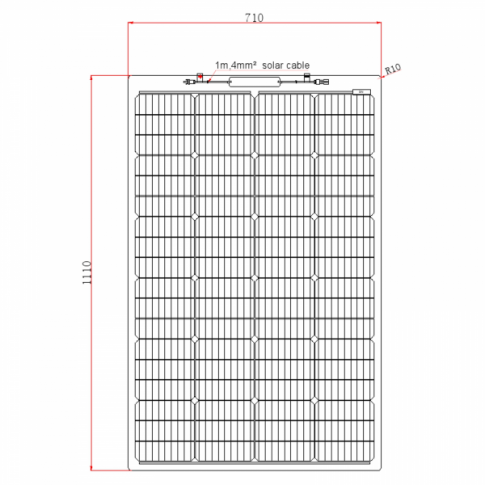

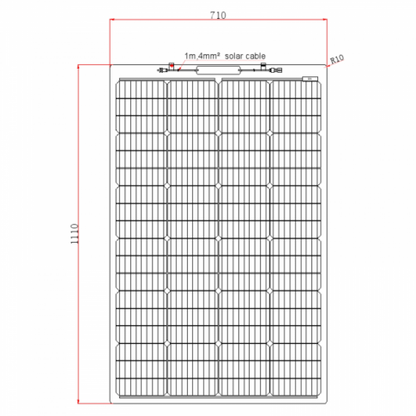

| Dimensions | 1110 x 710 x 2 mm |
| Weight | 2.85 kg |
Application & Fitment Guide
| System Type | Typical Application | Notes |
|---|---|---|
| Marine | Boats, Yachts, Narrowboats | Salt-water resistant ETFE coating |
| Automotive | Campervans, RVs, Horseboxes | Low profile, aerodynamically efficient |
| Off-Grid | Portable Power, Sheds, Cabins | Suitable for 12V/24V battery systems |
OEM & Industry References
| SKU / Part Number | FLPROCB-150M |
| Series Reference | FLPROC / FLPRO Series (Photonic Universe) |
| Cell Technology | Monocrystalline 9-Busbar |
Installation Guide
This panel is designed for permanent mounting on flat or slightly curved surfaces (maximum arch height determined by panel length). It can be secured using high-strength structural adhesive (e.g., Sikaflex) or via the factory-installed eyelets (if applicable to your specific batch). Ensure the mounting surface is clean and degreased before bonding. Professional electrical installation is recommended for connection to charge controllers.
Questions & Answers
What is the benefit of ETFE over standard PET flexible panels?
ETFE (Ethylene Tetrafluoroethylene) is a high-strength polymer that is more transparent, durable, and temperature-resistant than PET. It doesn't yellow or delaminate over time and provides better performance in hazy conditions due to its anti-reflective properties.
Can this panel be used with a 12V system?
Yes, with a Vmp of 19.8V, this panel is optimized for charging 12V battery banks via a standard PWM or MPPT solar charge controller.
Is the backing plate made of metal or plastic?
This specific model uses a fibreglass reinforced plastic (FRP) backing, which provides a balance of rigidity and flexibility while remaining completely corrosion-proof.
Note: Technical specifications are sourced from the FLPROCB-150M manufacturer data. Please ensure your solar controller is rated for at least 10A to accommodate the short-circuit current of this panel.
