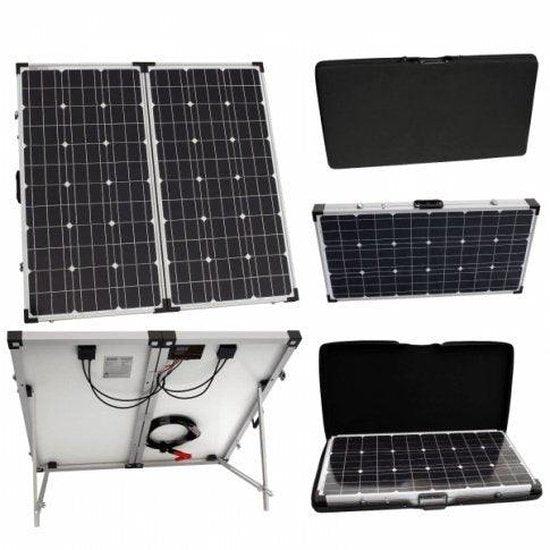

150W 12V Folding Solar Charging Kit
For Camper, Caravan, Boat & Off-Grid Systems | SWD-FWP-150M
The Photonic Universe 150W 12V Folding Solar Charging Kit, model SWD-FWP-150M, offers a reliable and portable power solution for 12V battery systems. Designed for ease of use and durability, this kit is ideal for keeping batteries charged in campers, caravans, boats, and various off-grid setups, providing consistent power without reliance on grid connections.
This premium solar kit is ready for immediate deployment, featuring high-efficiency monocrystalline solar panels and an advanced 10A solar charge controller. Its robust, waterproof design ensures enduring performance in diverse outdoor conditions, giving you the freedom to power essential systems wherever your adventures lead.
VERSATILE POWER: Ideal for 12V battery charging in mobile and off-grid applications, ensuring power on the go.
Key Features

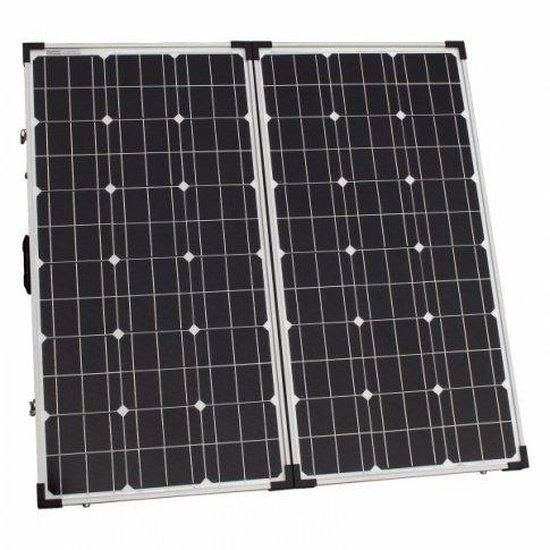

| ▶ 150W Monocrystalline Panels — Two 75W panels deliver efficient 12V charging. |
| ▶ Advanced 10A Charge Controller — Fully automated, IP67 waterproof for all weather conditions. |

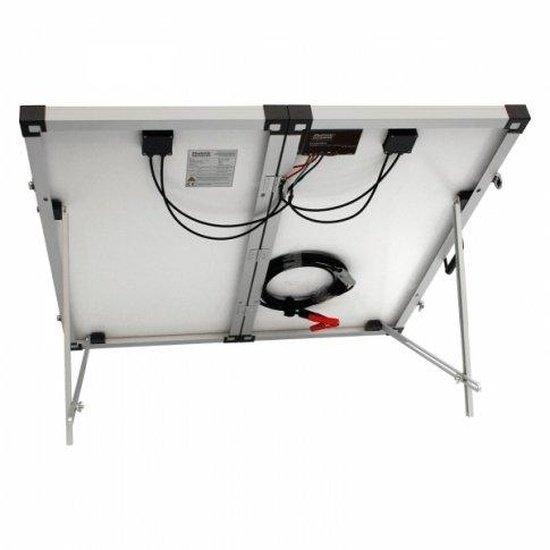

| ▶ Adjustable Aluminium Stand — Quick and easy setup for optimal sun exposure. |
| ▶ Complete Connectivity — Includes 5m cable with battery plug, fuse, and crocodile clips. |

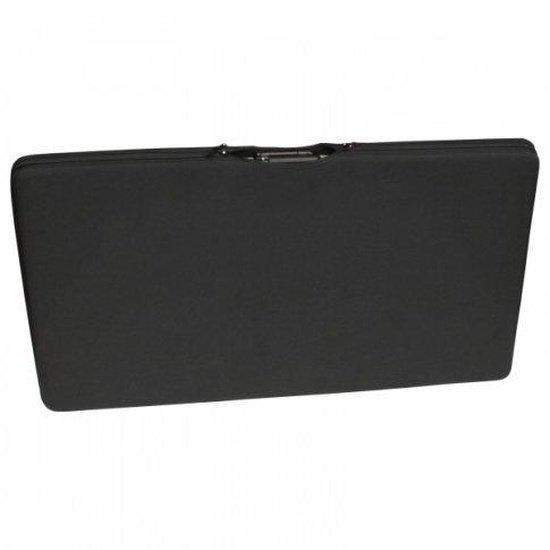

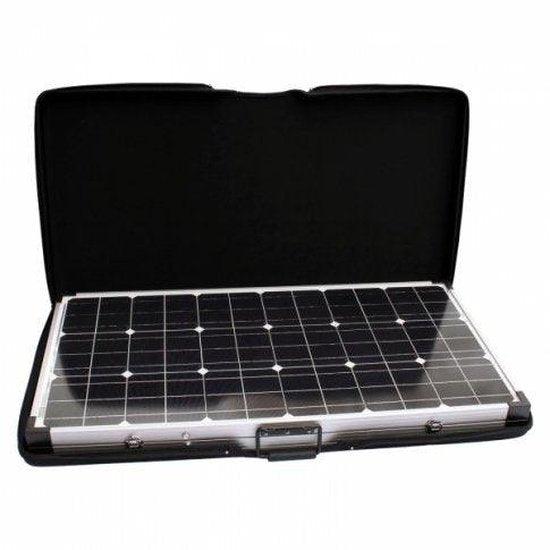

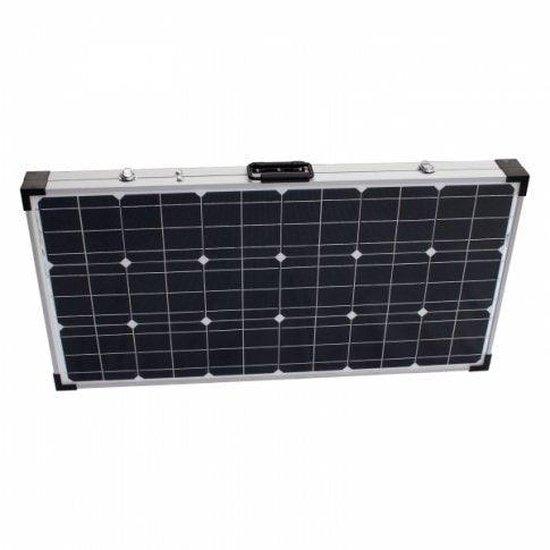

| ▶ Robust Portability — Features a handle, latches, and a protective case with foam and reinforced corners. |
| ▶ PWM Charging Technology — Enhances charging efficiency and extends battery lifespan. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power | 150W |
| Maximum Power Voltage (Vmp) | 17.5V |
| Maximum Power Current (Imp) | 8.32A (4.16A per panel) |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 9.0A (4.5A per panel) |
| Power Allowance | +/- 3% |
| Folded Dimensions | 51 x 101 x 7cm |
| Weight | 15kg |
Advanced Controller Features
The integrated 10A solar charge controller goes beyond basic charging, offering sophisticated battery management and monitoring capabilities:
- Smart Battery Management: Utilises advanced PWM technology to optimise charging efficiency, extend battery life, and can even help recover lost battery capacity. It constantly monitors your battery's state and supports various 12V lead-acid battery types, including sealed, gel, and flooded, ensuring optimal charging parameters for each.
- Comprehensive Protection: Safeguards your battery and system against common electrical issues such as reverse current at night, incorrect polarity, short circuits, overcharge, over-discharge, overload, and overheating.
-
Advanced Monitoring & Control Options: For detailed system oversight and customisation, the controller offers communication ports for:
- Remote Meter MT50: Connect an optional remote meter (with RJ45 cable) for real-time system performance viewing and setting adjustments via an LCD screen.
- Wi-Fi Module: Use an optional Wi-Fi module (with RJ45 cable) to create a Wi-Fi network, enabling wireless system management and parameter adjustments via a free mobile app (Android & iOS).
- PC/Laptop Connection: Link directly to a PC or laptop with an optional USB cable to monitor and adjust settings through a free computer program (Windows only).
Typical Applications
| Application | Description |
|---|---|
| Campers & Motorhomes | Provides essential power for lights, pumps, and small appliances during camping trips and touring. |
| Caravans | Keeps leisure batteries topped up, extending stays in off-grid locations. |
| Boats & Yachts | Powers navigation equipment, lighting, and other 12V marine electronics. |
| Off-Grid Systems | Suitable for remote cabins, sheds, or temporary power needs where grid access is unavailable. |
Built-In Protection Functions
The integrated 10A solar charge controller provides comprehensive protection for your battery and system, including: Overcharge Protection • Reverse Current Protection (at night) • Reverse Polarity Protection • Short Circuit Protection • Over-Discharge Protection • Overload Protection • Overheating Protection. This ensures safe and reliable operation in various conditions.
Common Questions
What battery types are compatible with this kit?
This kit is designed to charge 12V sealed, gel, and flooded lead-acid batteries. The advanced charge controller automatically optimises charging parameters for these battery types.
Is the kit suitable for all weather conditions?
Yes, the entire kit, including the 10A solar charge controller, is IP67 waterproof rated. This means it is completely sealed and suitable for reliable performance in rain, splashes, and other challenging weather.
Can I monitor the charging status and adjust settings?
Yes, the advanced charge controller supports optional accessories like a remote meter (MT50), a Wi-Fi module for mobile app control, or a direct USB connection to a PC for detailed monitoring and parameter adjustments.
What is included in the kit?
The kit includes two 75W monocrystalline solar panels (150W total), an integrated 10A IP67 waterproof solar charge controller, an adjustable aluminium stand, a 5m battery cable with plug and fuse, crocodile clips, a protective storage case, and an instruction manual.
Installation Notes
- Ensure the kit is connected to a 12V lead-acid battery system.
- Position the panels in direct sunlight, adjusting the stand for optimal angle.
- Keep the Anderson plug and metal connectors on the battery cable dry, despite the kit's overall waterproof design.
- Refer to the included instruction manual for detailed setup guidance.
Before You Buy
- Verify your battery type is compatible (sealed, gel, or flooded 12V lead-acid).
- Confirm the 150W output meets your specific power requirements.
- Consider any optional accessories (remote meter, Wi-Fi module, PC cable) for enhanced control.
- For permanent installations or complex setups, professional advice is recommended.
Always verify product specifications and compatibility with your existing system before purchase. This product is covered by a 1-year workmanship warranty on the solar panel (by Photonic Universe) and the solar charge controller (by the manufacturer). Solar cells are guaranteed to maintain at least 90% of nominal power output for 10 years and 80% for 25 years.
