1500W 12V pure sine wave power inverter with On/Off remote control
1500W 12V pure sine wave power inverter with On/Off remote control
SKU:IPR-1500
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
1500W 12V Pure Sine Wave Power Inverter
Off-Grid & Mobile Power Solution | Remote Control Included

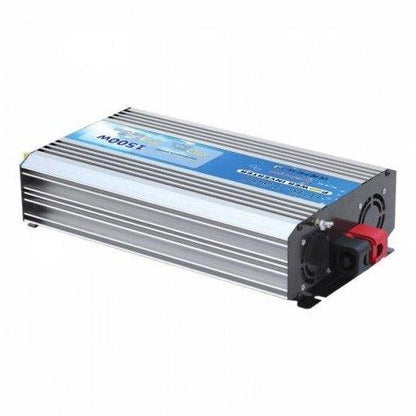

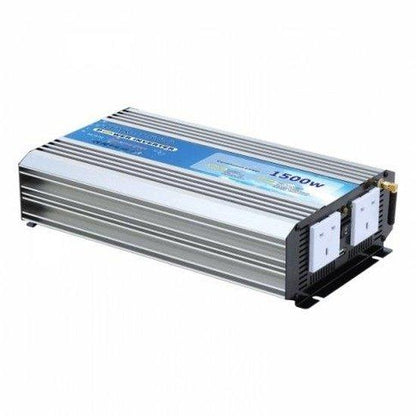

The Photonic Universe IPR-1500 is a robust 1500W 12V pure sine wave power inverter designed to convert 12V DC battery power into stable 230V AC mains electricity. Ideal for off-grid systems, mobile applications, and backup power, this inverter allows you to run standard household appliances from a battery bank.
Featuring a continuous power output of 1500W and a surge capacity of up to 3000W, it can handle appliances requiring higher starting power. The pure sine wave output ensures compatibility with sensitive electronics and motor-driven devices, providing clean power almost identical to grid electricity. It also includes a 2A USB port for charging compatible devices and comes with a wireless On/Off remote control for convenient operation.
KEY SPECIFICATION: Delivers 1500W continuous pure sine wave AC power from a 12V DC source.
Key Features
| ▶ Pure Sine Wave Output — Provides clean, stable power suitable for all appliances, including sensitive electronics and inductive loads. |
| ▶ High Continuous Power — Generates 1500W of continuous AC power for reliable operation of multiple devices. |
| ▶ 3000W Surge Capacity — Offers a peak power reserve for starting appliances with high initial current demands. |
| ▶ Integrated USB Port — Features a 2A USB output for convenient charging of mobile phones, tablets, and other USB-compatible devices. |
| ▶ Wireless Remote Control — Includes an On/Off remote with approximately 50m radius for flexible power management. |
| ▶ Comprehensive Protection — Built-in safeguards against over-discharge, overload, overheating, and short-circuit ensure safe operation. |
| ▶ UK Mains Compatibility — Delivers 230-240V AC at 50Hz, matching standard UK household electricity. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (DC) | 12V (10-15V) |
| Output Voltage (AC) | 230-240V |
| Output Frequency | 50 Hz |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | < 3% |
| Continuous Power | 1500W |
| Surge Power (Peak) | 3000W |
| Peak Efficiency | 90% |
| Low Battery Shut Down | 10.0V ± 0.5V DC |
| Low Battery Alarm | 10.5V ± 0.5V DC |
| High Voltage Shut Down | 15.5V ± 0.5V DC |
| Thermal Shut Down | 60 ± 5°C |
| Rated USB Output | 2A |
| Remote Control Radius | Approx. 50m |
| Dimensions (L x W x H) | 405 x 220 x 90 mm |
| Weight | 4.4 kg |
Operating & Power Guidance
This 12V pure sine wave inverter efficiently converts direct current (DC) from your battery into alternating current (AC) suitable for powering standard 230V appliances. The pure sine wave output is crucial for sensitive electronics like laptops, medical equipment, and appliances with electric motors (e.g., fridges, pumps), as it prevents damage and ensures optimal performance that modified sine wave inverters cannot provide.
To ensure stable operation, it is vital to connect the inverter to a 12V battery or battery bank with sufficient capacity to meet the power demands of your connected appliances. Always consider the continuous power rating (1500W) for ongoing use and the surge power rating (3000W) for initial startup loads. Proper ventilation around the inverter is also essential to prevent overheating.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Powering domestic appliances such as TVs, fridges, and charging devices while on the move. |
| Boats & Marine | Providing AC power for navigation equipment, galley appliances, and entertainment systems on vessels. |
| Off-Grid Cabins | Enabling mains electricity in remote properties without access to the national grid. |
| Backup Power | A reliable solution for essential appliances during power cuts or emergencies. |
| Remote Work Sites | Supplying power for tools, lighting, and communication devices in areas without grid access. |
Built-In Protection Functions
The Photonic Universe IPR-1500 inverter is equipped with multiple safety features to protect both the unit and your connected devices. These include automatic shutdown for over-discharge • overload • overheating • short-circuit • low battery voltage • and high input voltage. These safeguards ensure reliable and safe operation in various conditions.
Common Questions
What is a pure sine wave inverter?
A pure sine wave inverter produces an AC waveform that is almost identical to the electricity supplied by utility companies. This makes it suitable for all types of electrical appliances, especially sensitive electronics and those with motors, which can be damaged by modified sine wave inverters.
What appliances can this inverter power?
This 1500W inverter can power a wide range of 230V AC appliances up to its continuous power rating, such as TVs, fridges, radios, lights, and can charge laptops or mobile phones. Its 3000W surge capacity helps start appliances like small pumps or power tools.
How do I connect this inverter to my battery?
Simply connect the inverter directly to your 12V battery or battery bank using appropriately sized cables. Ensure correct polarity (positive to positive, negative to negative) and secure connections. Avoid connecting it to the "load" terminals of a solar charge controller, as the power draw may be too high.
What is the purpose of the remote control?
The wireless On/Off remote control allows you to switch the inverter on or off from a distance of up to 50 metres. This is particularly useful when the inverter is installed in a less accessible location, such as a battery compartment or engine bay.
Installation Notes
- Ensure the inverter is installed in a dry, well-ventilated area, away from direct sunlight and heat sources.
- Mount the inverter on a solid, non-flammable surface, ideally at eye level for easy access to controls.
- Use appropriately sized DC cables and fuses between the battery and the inverter to prevent overheating and ensure safety.
- Always disconnect the battery before making or changing any connections to the inverter.
- For optimal performance, ensure your 12V battery bank is adequately sized for your power consumption needs.
Before You Buy
- Verify your battery system is 12V DC to match this inverter's input requirements.
- Calculate the total continuous wattage of all appliances you intend to run simultaneously.
- Consider the surge (starting) power of motor-driven appliances, ensuring it does not exceed 3000W.
- Ensure you have suitable battery capacity (Ah) to support your desired run times.
- Consult a qualified electrician or solar installer if you are unsure about system design or installation.
Please verify all specifications and compatibility requirements before purchase. Professional installation is recommended. This product is covered by a 1-year manufacturer warranty.
