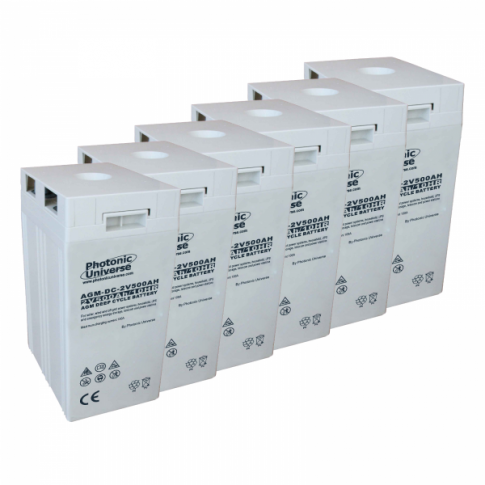

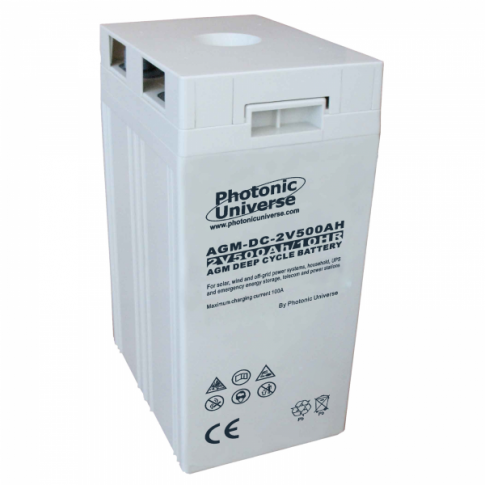

12V 500Ah AGM deep cycle battery bank (6 x 2V batteries) for large power systems and energy storage

12V 500Ah AGM deep cycle battery bank (6 x 2V batteries) for large power systems and energy storage

AGM500AH-6SET

£1,099.99 GBP
£1,099.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

12V 500Ah AGM Battery Set (AGM500AH-6SET)

6kWh High-Capacity Deep Cycle Energy Storage

The Solarika AGM500AH-6SET is a professional-grade 12V battery bank designed for high-demand energy storage. By utilizing six individual 2V 500Ah AGM cells connected in series, this system provides significantly better longevity and charging balance compared to standard 12V battery blocks. With a total capacity of 6kWh, it is engineered for deep discharge cycles, making it the ideal backbone for large-scale solar arrays, off-grid cabins, and emergency backup systems.

RELIABILITY: Built with thicker lead plates and advanced Absorbed Glass Mat (AGM) technology, ensuring maintenance-free operation and exceptional resistance to vibration and internal degradation.

Key Features

  • ✔ Balanced Series Charging: 2V cells ensure even wear and longer service life.
  • ✔ Deep Cycle Performance: Thicker plates for enhanced depth of discharge.
  • ✔ Maintenance-Free: Sealed VRLA design requires no water topping.
  • ✔ High Safety: Non-spillable and leak-proof construction.
  • ✔ Ready to Install: Includes metal busbar connectors.

Technical Specs

Nominal Voltage (Bank) 12V (6 x 2V)
Capacity (C10/C20) 500Ah / 508Ah
Total Energy 6kWh
Terminal Type M10 Bolts
Max Charging Current 100A
Cycle Life (30% DOD) ~1200 Cycles
Total Weight Approx. 170kg

Application & Fitment Guide

System Type Application Notes
Solar PV / Wind Ideal for 12V off-grid residential or commercial storage arrays.
Marine / Canal Boat Heavy-duty house bank for long-duration power without engine start.
UPS / Backup Critical standby power for telecommunications and networking.
Mobile Off-Grid Large motorhomes and expedition vehicles requiring high Ah capacity.

OEM Cross Reference

Manufacturer SKU AGM500AH-6SET
Industry Code 2V 500Ah / 12V 500Ah Set
Alternative Ref Photonic Universe 500Ah Bank, B0793SBW8M

Installation Guide

1. Ensure all 6 batteries are placed on a level, stable surface capable of supporting 170kg.
2. Use the provided metal busbar connectors to link the batteries in series (Positive to Negative).
3. Check all M10 terminal bolts are tightened to the specified torque to prevent arcing.
4. Connect the main system Positive to the first cell and Negative to the last cell in the series chain.

Questions & Answers

Is this a genuine Solarika part?

Yes, this is a premium quality Solarika energy storage solution, manufactured to exact specifications for off-grid performance.

How do I know if it is compatible?

This set creates a 12V 500Ah bank. It is compatible with any 12V inverter or charge controller capable of handling AGM battery profiles.

Why use 2V cells instead of a single 12V battery?

Individual 2V cells allow for much thicker internal lead plates and a more balanced charge/discharge cycle. This configuration prevents the "weak cell" syndrome common in 12V blocks, significantly extending the bank's overall lifespan.

Note: Please verify your system voltage requirements before purchasing. This set is configured for 12V operation. For 24V or 48V systems, additional units will be required.
