120W 12V solar charging kit with 10A controller and 5m cable
120W 12V solar charging kit with 10A controller and 5m cable
SKU:SWD-120M-PU1024B
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
120W 12V Solar Charging Kit
Monocrystalline Panel | 10A PWM Charge Controller | 5m Cable
The Photonic Universe 120W 12V Solar Charging Kit provides a reliable and efficient solution for off-grid power needs. This comprehensive kit includes a high-efficiency 120W monocrystalline solar panel, a 10A 12V/24V PWM solar charge controller, and a 5-meter solar cable, making it ideal for charging 12V batteries in various applications.
Designed for permanent outdoor installation, the waterproof solar panel delivers consistent, free electricity for camper vans, motorhomes, boats, sheds, farms, and remote monitoring equipment. The advanced charge controller ensures optimal battery health and system protection, supporting multiple battery types and offering advanced monitoring capabilities.

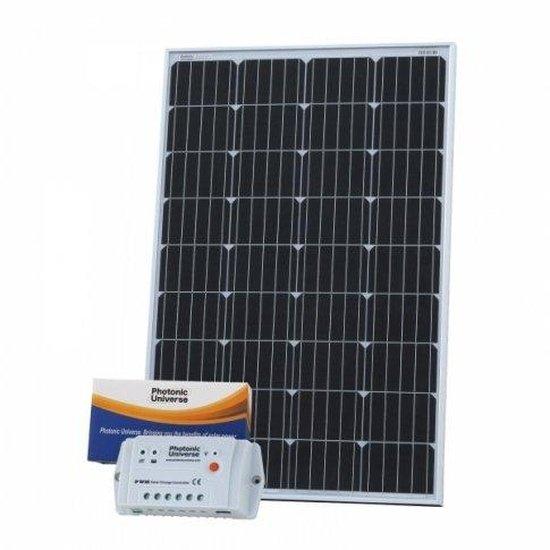

KIT CONTENTS: 120W Monocrystalline Solar Panel, 10A PWM Solar Charge Controller, 5m Solar Cable with MC4 Connectors.
Key Features
| ▶ High-Efficiency Solar Panel — 120W monocrystalline panel with innovative 5 busbar cells for superior power extraction. |
| ▶ Durable & Weatherproof Design — Sealed aluminium frame and waterproof construction ensure long-term outdoor performance. |
| ▶ Optimised Cable Length — Includes 5m of high-quality solar cable with MC4 connectors for flexible installation and minimal power loss. |
| ▶ Advanced PWM Charge Controller — 10A 12V/24V controller with PWM technology to enhance battery charge acceptance and extend lifespan. |
| ▶ Comprehensive Battery Protection — Features automatic cut-off for over-charging, deep discharge, reverse current, overload, short circuit, and overheating. |
| ▶ Versatile Battery Compatibility — Supports Sealed, Gel, Flooded, and user-defined battery types for broad application. |
| ▶ Monitoring & Programming Options — Compatible with remote meter (MT50), Wi-Fi module, or PC software for detailed system management. |
Technical Specifications

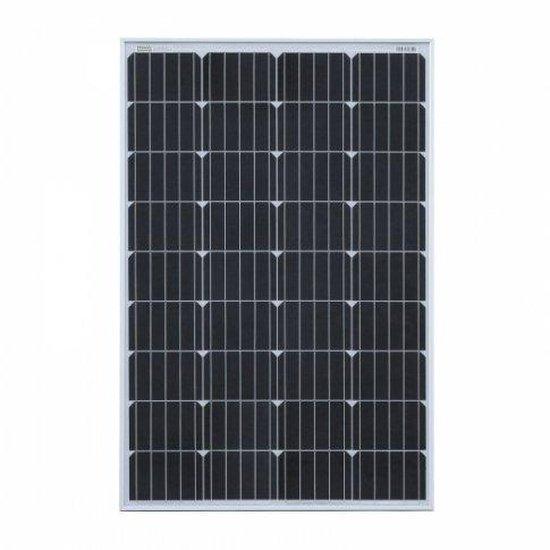

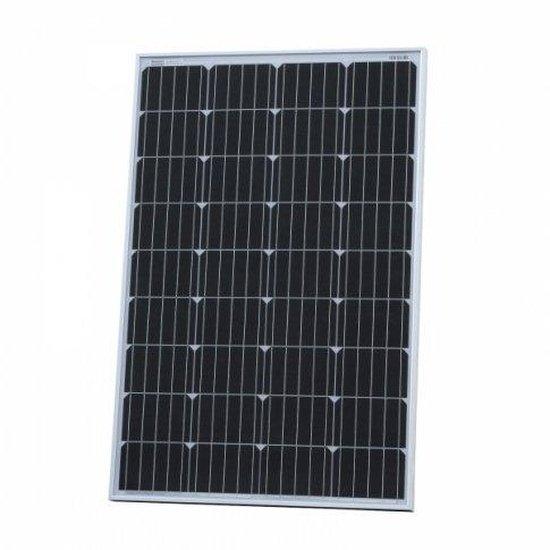

Solar Panel (120W Monocrystalline)
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 120W |
| Maximum Power Voltage (Vmp) | 20.2V |
| Maximum Power Current (Imp) | 5.94A |
| Open Circuit Voltage (Voc) | 23.9V |
| Short Circuit Current (Isc) | 6.31A |
| Power Allowance Range | +/- 3% |

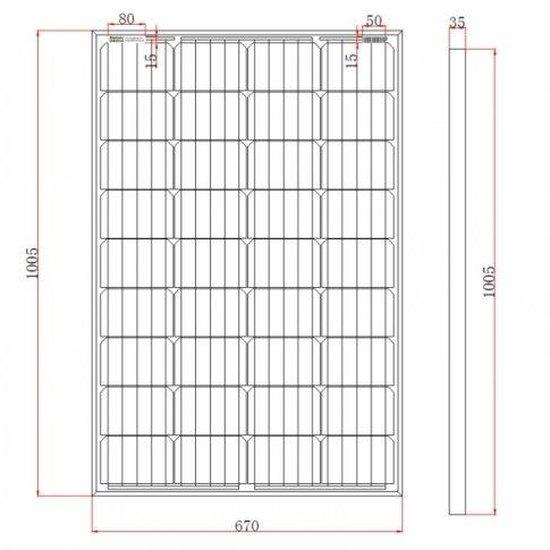

| Dimensions (L x W x H) | 100.5 x 67 x 3.5 cm |
| Weight | 8.3 kg |

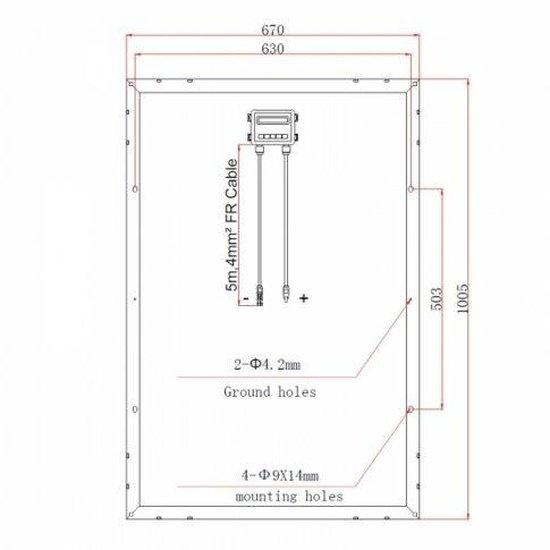

| Mounting Holes | 4 (9 x 14 mm) |

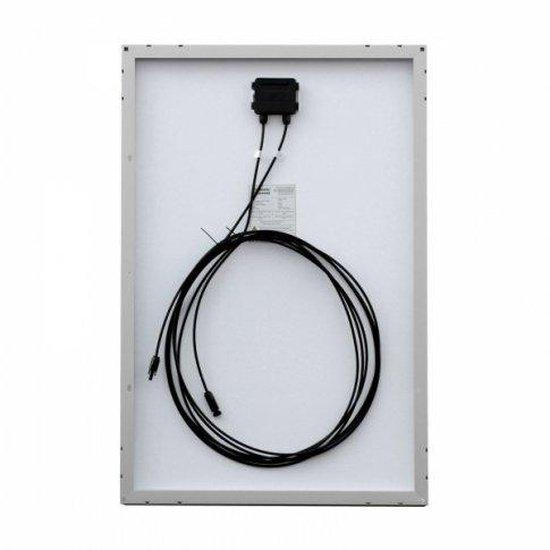

| Cable | 2 x 5m, 4.0mm² single core |
| Connectors | Male & Female MC4 |

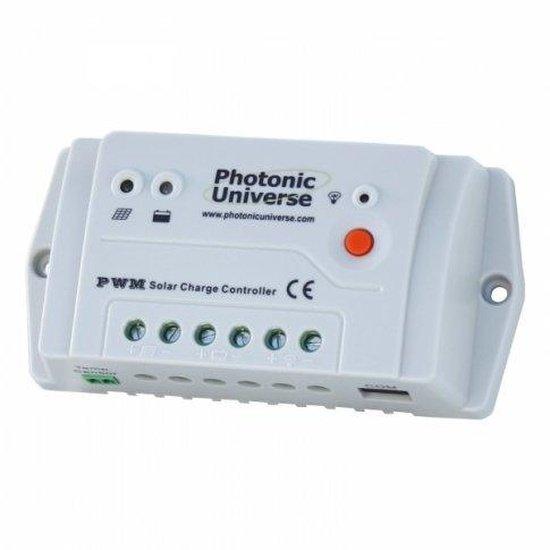

Charge Controller (10A PWM)
| Parameter | Value |
|---|---|
| Rated Current | 10A |
| System Voltage | 12V / 24V Auto-select |
| Max. Solar Input Voltage | 50V |
| Max. Solar Input Power (12V) | 160W |
| Max. Solar Input Power (24V) | 320W |
| Self-Consumption | <8.4mA (12V) / <7.8mA (24V) |
| Working Temperature | -35°C to +50°C |
| Dimensions (L x W x H) | 13.8 x 6.9 x 3.7 cm |
| Weight | 130 g |
Charging & Battery Modes
The included 10A PWM solar charge controller is designed for intelligent battery management, ensuring efficient and safe charging. It automatically detects 12V or 24V battery systems and employs Pulse Width Modulation (PWM) technology to optimise the charging process, which can improve charge acceptance and potentially recover lost battery capacity.
This controller is compatible with Sealed, Gel, and Flooded lead-acid batteries, with 'Sealed' as the default setting. For specific battery requirements, a user-defined battery type can be configured via optional communication methods. It also features a built-in temperature sensor for automatic charging compensation and terminals for an optional remote temperature sensor for enhanced accuracy.
Advanced communication options allow for comprehensive monitoring and parameter programming. Users can connect a remote meter (MT50), a Wi-Fi module for mobile app access (Solar Station Monitor for Android/iOS), or an RJ45 to USB cable for PC software (Solar Station Monitor for Windows). These interfaces provide access to real-time data such as voltage, current, battery state of charge, and accumulated energy, along with customisation of charging stages and load settings.
Typical Applications
| Application | Description |
|---|---|
| Camper Vans & Motorhomes | Provides reliable 12V power for leisure batteries, supporting lighting, appliances, and electronic devices on the go. |
| Boats & Marine Systems | Ideal for charging 12V marine batteries, powering navigation, communication, and onboard amenities. |
| Sheds & Outbuildings | Supplies off-grid electricity for lighting, tools, and small electronics in remote or unpowered structures. |
| Remote Monitoring & Telecoms | Powers essential equipment in isolated locations where grid access is unavailable. |
| Direct DC Applications | Can directly power applications not sensitive to voltage/current changes, such as electric motors or pumps. |
Built-In Protection Functions
The Photonic Universe 10A solar charge controller incorporates multiple safety features to protect your battery and system. These include automatic cut-off for over-charging and deep discharge • protection against reverse current flow from the battery to the solar panel at night • overload protection • short circuit protection • and overheating protection. These safeguards ensure reliable and safe operation, prolonging the lifespan of your battery bank.
Common Questions
What is included in this solar charging kit?
This kit includes a 120W monocrystalline solar panel, a 10A 12V/24V PWM solar charge controller, and 5 metres of solar cable with MC4 connectors. It is an essentials kit, so mounting accessories and battery cables are not included.
Can the charge controller be installed outdoors?
No, the 10A solar charge controller included in this kit is not waterproof and must be mounted indoors in a dry, protected environment.
What battery types are compatible with the controller?
The controller is compatible with Sealed, Gel, and Flooded lead-acid batteries. It also supports a user-defined battery type, which can be configured using optional communication methods.
Is the solar panel suitable for all weather conditions?
Yes, the 120W monocrystalline solar panel features a durable, sealed aluminium frame and a waterproof design, making it suitable for permanent outdoor use in all weather conditions.
Installation Notes
- The solar panel can be installed on a flat roof using appropriate mounting brackets (not included).
- Ensure the solar charge controller is mounted indoors in a dry, well-ventilated area, as it is not waterproof.
- Refer to the detailed user manual for the charge controller, which includes a wiring diagram and installation instructions.
- All electrical connections should be secure and properly insulated to prevent issues.
- Consider the optimal angle and orientation for the solar panel to maximise sunlight exposure throughout the day.
Before You Buy
- This kit is an essentials package; mounting accessories and battery cables are sold separately.
- Verify your battery type (Sealed, Gel, Flooded) to ensure correct controller settings.
- Consider if you require additional monitoring or programming accessories (e.g., remote meter, Wi-Fi module) for advanced system management.
- Ensure you have adequate space for the solar panel dimensions (100.5 x 67 x 3.5 cm) for your intended installation.
- Note that due to warehouse arrangements, the solar panel and controller may be delivered in separate packages.
Always verify product specifications and compatibility with your existing system before purchase. This product is covered by a 1-year warranty from Photonic Universe for the controller and panel workmanship. Solar cells are guaranteed to produce at least 90% of nominal power for 10 years and 80% for 25 years by the cell manufacturer.
