RELIABILITY: Built with a corrosion-resistant aluminium frame and tempered glass, designed to withstand high winds (2400 Pa) and snow loads (5400 Pa).

Key Features

• ✔ Dual Battery Charging: Charge two independent 12V batteries.

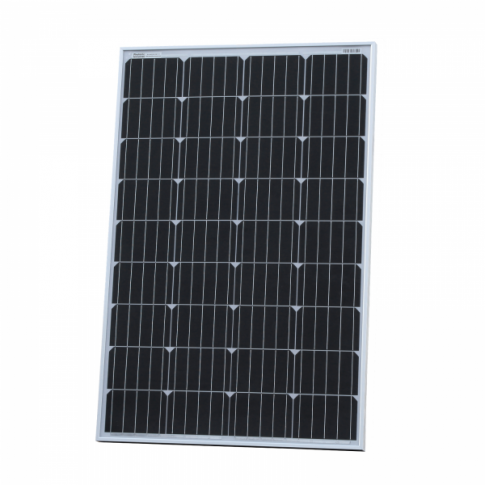

• ✔ High Efficiency: Grade-A monocrystalline cells.
• ✔ Full Protection: Built-in overcharge & reverse current protection.

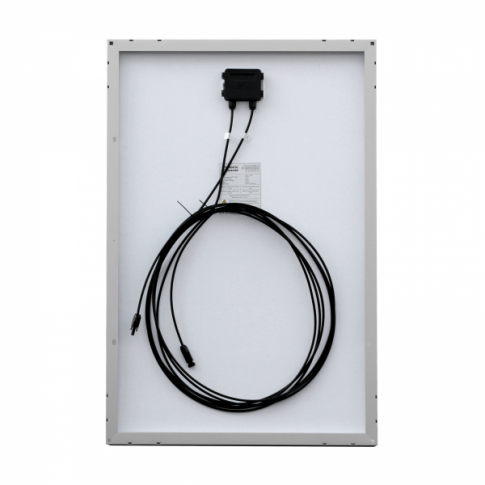

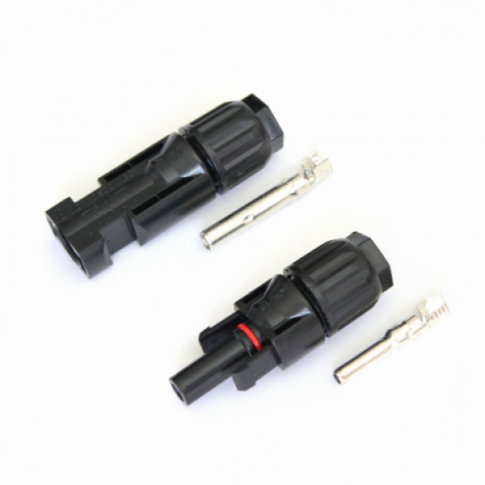

• ✔ Weatherproof: IP65 rated junction box and MC4 connectors.

Technical Specs

Peak Power (Pmax)	120W
Max Power Voltage (Vmp)	20.2V
Max Power Current (Imp)	5.94A
Open Circuit Voltage (Voc)	23.9V
Short Circuit Current (Isc)	6.31A

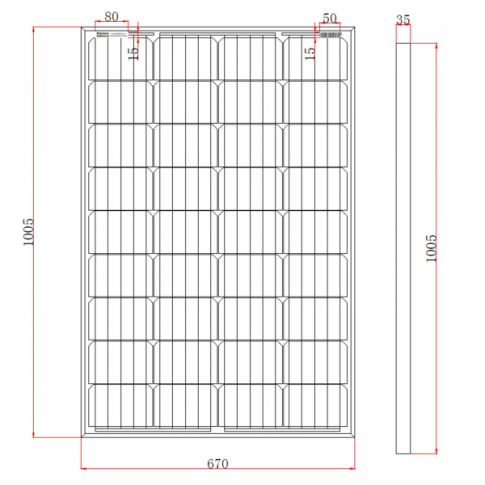

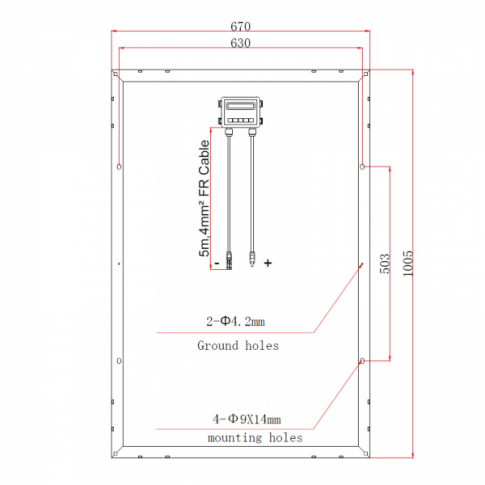

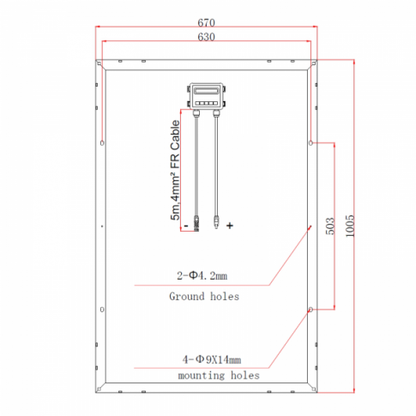

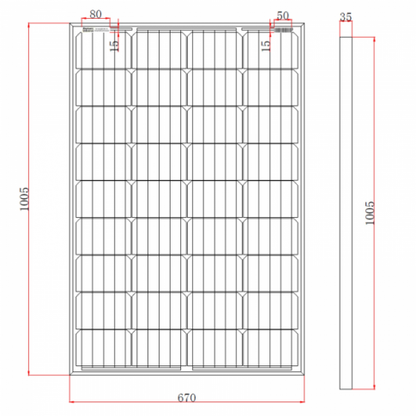

Dimensions	1005 x 670 x 35 mm
Weight	8.3 kg

Application	System Type	Battery Compatibility
Caravans / Motorhomes	12V DC Off-Grid	Sealed, Gel, Flooded (AGM)
Boats / Marine	Dual Battery Banks	Leisure and Starter Batteries
Campervans	Mobile Power Kit	Single or Dual 12V Setups

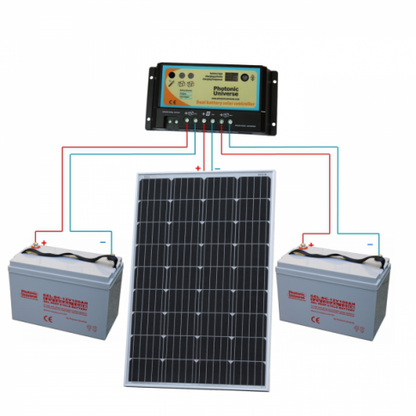

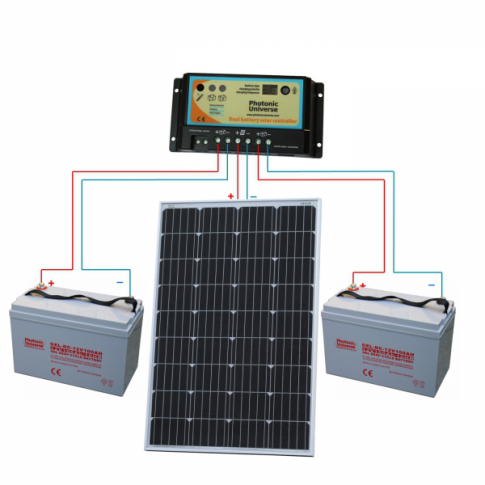

1. Connect your 12V batteries to the dual controller first (Starter and Leisure banks).
2. Once the controller identifies the batteries, connect the MC4 cables from the solar panel.

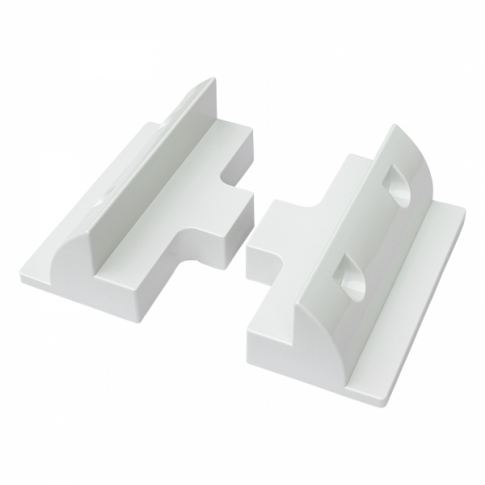

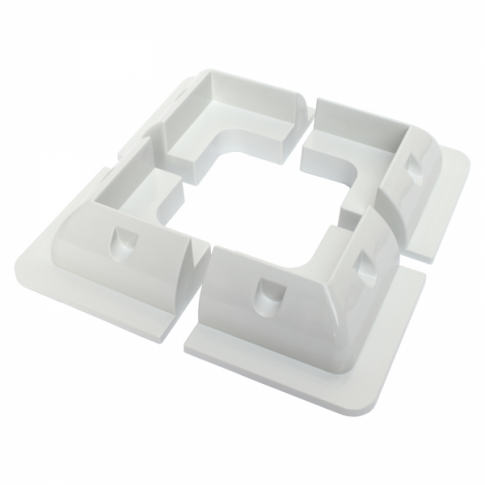

3. Mount the panel using the provided corner and side brackets, ensuring a secure bond to the roof surface.
4. Verify charging status via the LED indicators on the 10A PWM controller.

Is this a genuine original part?

This is a premium high-efficiency solar kit distributed by Solarika, manufactured to meet exact technical specifications for off-grid 12V applications.

How do I know if it is compatible?

If you have a 12V system and want to charge two separate batteries, this SKU is the correct fit. Ensure your roof space accommodates the 100.5cm x 67cm footprint.

Can I adjust the charging priority?

Yes, the included 10A dual battery controller allows you to set charging ratios (e.g., 80% to leisure and 20% to starter battery) or automatically divert 100% to one battery if the other is full.
