RELIABILITY: Integrated Red LED indicators light up instantly when a fuse blows, allowing for rapid troubleshooting and minimal downtime in the field.

Key Features

• ✔ 12 Independent Circuits
• ✔ LED Blown-Fuse Identification

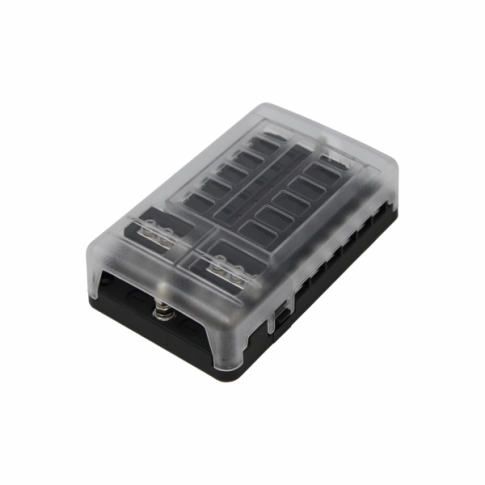

• ✔ Transparent Protective Cover

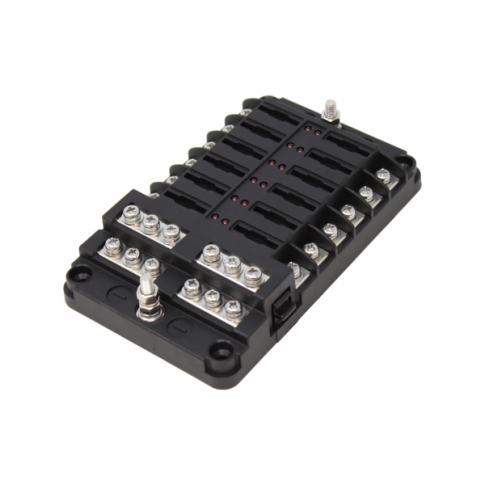

• ✔ Negative Busbar Included
• ✔ High Conductivity Copper Terminals

Technical Specs

Voltage Rating	32V DC Max
Amperage Max	100A (Per Block)
Circuit Max	30A (Per Circuit)
Fuse Type	Standard Blade (ATC/ATO)
Input Stud	M5 Threaded (#10-32)
Output Screw	M4 Threaded (#8-32)
Base Material	Flame-Retardant PBT

System Type	Applications	Notes
12V DC Systems	Cars, Vans, 4x4, Campers	Ideal for auxiliary lights & fridges
24V DC Systems	Trucks, Lorries, Buses	Heavy-duty 100A total capacity
Marine / Solar	Boats, Yachts, Off-grid cabins	Corrosion-resistant terminals

1. Secure the fuse block to a flat surface using the provided mounting holes. 2. Connect the main positive feed to the M5 center stud. 3. Connect the main negative feed to the negative busbar stud. 4. Attach individual circuit wires to the M4 screw terminals. 5. Insert appropriate ATC/ATO fuses for each circuit. 6. Snap on the dust-proof cover and apply identification stickers.

Is this a genuine original part?

This is a premium quality Solarika aftermarket replacement part, manufactured to meet or exceed original equipment standards for electrical safety and conductivity.

What does the red light mean?

Each of the 12 circuits has a dedicated red LED. If a fuse blows, the LED for that specific circuit will illuminate, allowing you to identify the fault instantly without testing every fuse.

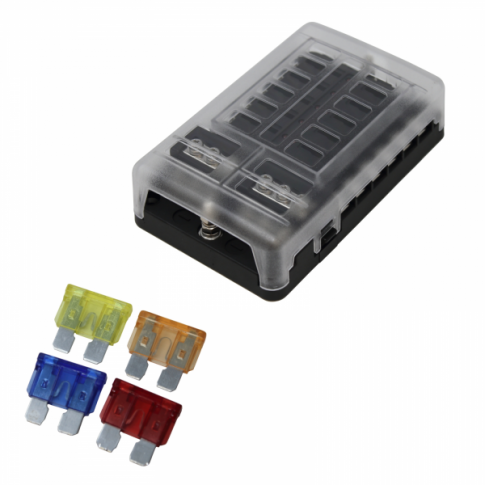

Does it include the fuses?

Most FB-12WAY kits include a starter set of fuses (typically 5A, 10A, 15A, and 20A) along with identification stickers, but please refer to the specific package contents listed above.
