RELIABILITY: Built with a heavy-duty anodized aluminum frame and toughened safety glass to withstand harsh outdoor environments.

Key Features

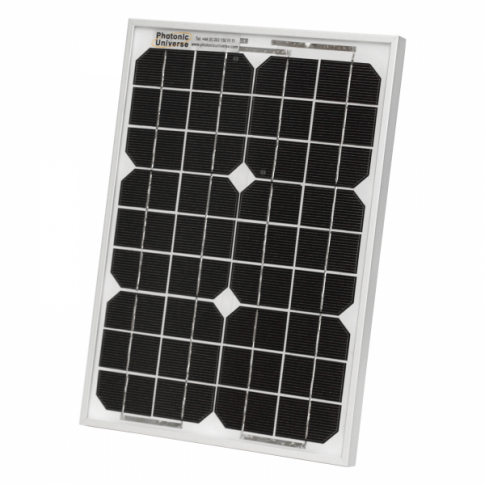

• ✔ Monocrystalline Cells: Superior efficiency and performance.

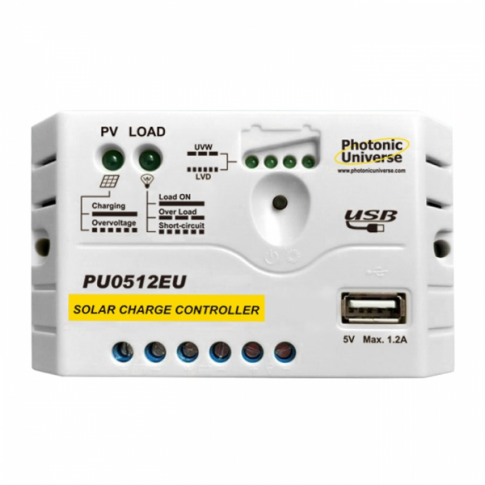

• ✔ 5A PWM Controller: Protects against overcharging and discharge.
• ✔ USB Charging Port: Integrated 5V/1.2A port for mobile devices.

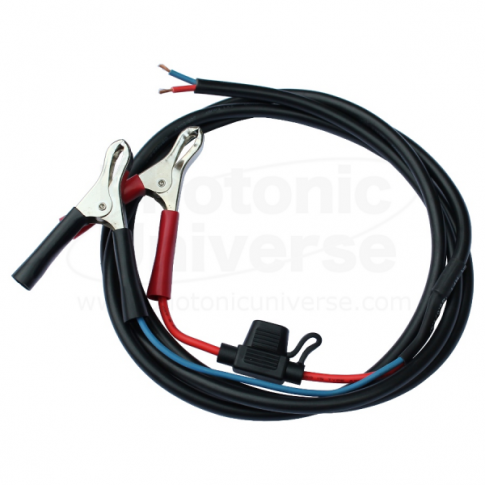

• ✔ Plug & Play: Includes crocodile clips and fused battery cable.

Technical Specs

Peak Power (Pmax):	10W
Voltage (Vmp):	17.5V
Current (Imp):	0.57A
Open Circuit Voltage (Voc):	21.6V
Controller Rating:	5A PWM (12V)
Dimensions:	340 x 240 x 20 mm
Weight:	1.3 kg

Application	Battery Type	Notes
Car / Van / Motorbike	12V Lead Acid / AGM	Perfect for seasonal storage maintenance.
Boat / Marine	12V Sealed / Gel / Wet	Anodized frame resists corrosion.
Leisure / Caravans	12V Deep Cycle	Maintains charge for alarm/tracker systems.

1. Connect the battery cable (with crocodile clips) to the solar charge controller.
2. Connect the crocodile clips to your 12V battery (Red to +, Black to -).
3. Connect the solar panel cable to the PV terminals on the charge controller.
4. Position the panel in direct sunlight for maximum charging efficiency.

Note: The solar panel is waterproof and suitable for permanent outdoor use, however, the charge controller should be mounted in a dry, ventilated area.

Is this a genuine original part?

This is a premium quality Solarika kit, engineered to meet or exceed technical standards for BST-10M-12VKIT specifications.

How do I know if it is compatible?

This kit is compatible with any 12V battery system including Lead-Acid, Gel, and AGM. If your system requires 10W maintenance, this SKU is a direct match.

Can I charge my phone directly from the kit?

Yes, the included 5A PWM charge controller features a built-in 5V USB port, allowing you to charge mobile phones or tablets directly from solar power while the main battery is connected.
