10m single core extension cable 6.0mm2 with MC4 connectors
10m single core extension cable 6.0mm2 with MC4 connectors
SKU:10M60
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

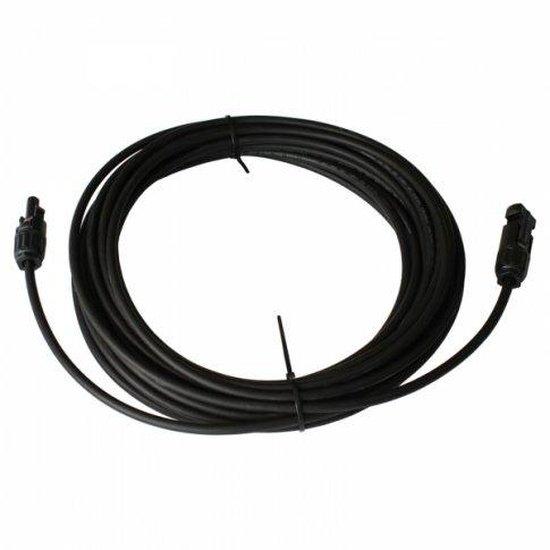

10m Single Core Solar Extension Cable
6.0mm² Cross Section | Pre-fitted MC4 Connectors | TUV Certified
This 10m single core solar extension cable from Photonic Universe is specifically designed for photovoltaic (PV) systems, ensuring efficient power transfer with minimal loss. Featuring a 6.0mm² cross-section and pre-fitted MC4 connectors, it provides a reliable and robust connection for your solar panels.
Constructed with tinned copper conductors and durable 120°C XLPE insulation, this cable is built to withstand diverse outdoor conditions, from extreme cold to high temperatures. Its TUV certification further assures compliance with stringent safety and performance standards for long-term reliability in solar installations.
KEY SPECIFICATION: Designed for high current transfer with minimal power loss in solar PV systems.
Key Features
| ▶ Optimal Power Transfer — 6.0mm² cross-section minimises voltage drop and power loss. |
| ▶ Pre-fitted MC4 Connectors — Male and female connectors for easy, secure, and waterproof connections. |
| ▶ Durable XLPE Insulation — 120°C XLPE jacket offers superior resistance to UV, ozone, and weathering. |
| ▶ TUV Certified Quality — Ensures compliance with international safety and performance standards. |
| ▶ Wide Temperature Range — Operates reliably in temperatures from -40°C to +120°C. |
| ▶ Tinned Copper Conductor — Provides excellent conductivity and corrosion resistance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Solar Extension Cable |
| Manufacturer | Photonic Universe |
| SKU | 10M60 |
| Cable Length | 10 metres |
| Core Type | Single Core |
| Cross Section | 6.0mm² |
| Conductor Material | Tinned Copper |
| Insulation & Jacket | 120°C XLPE |
| Working Temperature | -40°C to +120°C |
| Certification | TUV |
Operating & Power Guidance
This 6.0mm² solar cable is engineered for efficient power transmission in various solar PV setups. Its robust design ensures minimal energy loss, making it suitable for both smaller off-grid systems and larger on-grid installations.
| Application Type | Typical Suitability |
|---|---|
| Off-Grid 12V Systems | Generally sufficient for solar panels and systems up to 320W. |
| On-Grid PV Installations | Suitable for panels with higher power ratings, typically operating at 30-60V. |
| High Current Requirements | Designed to carry high currents with minimal power loss, crucial for system efficiency. |
Typical Applications
| Application | Description |
|---|---|
| Solar Panel Extensions | Extending the reach of solar panels to charge controllers or inverters. |
| Off-Grid Systems | Connecting components in 12V off-grid setups for caravans, motorhomes, and boats. |
| Residential & Commercial PV | Suitable for various residential and commercial solar power installations. |
Built-In Protection Functions
This Photonic Universe solar cable is designed with robust features to ensure safety and longevity in demanding outdoor environments. It offers excellent resistance to UV radiation, ozone, and weathering, preventing degradation from prolonged sun exposure. The 120°C XLPE insulation provides high thermal stability and electrical integrity, reducing the risk of electrical hazards such as short circuits and overheating. Furthermore, its TUV certification verifies that the cable meets rigorous international standards for fire resistance, mechanical strength, and overall performance, ensuring reliable operation and enhanced safety for your PV system.
Common Questions
What are MC4 connectors?
MC4 connectors are the standard electrical connectors used for connecting solar panels in photovoltaic systems. They are designed to be waterproof, UV resistant, and feature a positive locking mechanism to ensure a secure connection that prevents accidental disconnection.
What systems is this 6.0mm² cable suitable for?
This 6.0mm² cable is generally sufficient for off-grid 12V solar panel systems up to 320W. It is also suitable for on-grid panels with higher power ratings, typically operating at 30-60V, where its capacity helps minimise power loss.
Can this cable be cut to a shorter length?
Yes, this 10m single core cable can be cut in half if required, creating two 5m tails. If cutting, ensure proper termination with appropriate tools and connectors to maintain safety and performance.
Why is TUV certification important for solar cables?
TUV certification signifies that the cable has been rigorously tested by an independent body and meets strict international standards for safety, quality, and performance. This includes resistance to UV, temperature extremes, and fire, ensuring the cable's durability and reliability in PV systems.
Installation Notes
- Ensure all connections are secure and waterproof to prevent moisture ingress.
- Route cables to minimise bending stress and protect from physical damage.
- Always adhere to local electrical codes and safety guidelines for PV installations.
- For optimal performance, avoid unnecessary cable length to reduce voltage drop.
Before You Buy
- Verify the required cable length for your specific solar panel layout.
- Confirm compatibility with your existing solar panels and MC4 connectors.
- Consider the total power and voltage of your system to ensure appropriate cable sizing.
- Consult a qualified installer if you are unsure about system compatibility or installation.
Please verify all specifications and compatibility requirements with your system before purchase. Product details are based on manufacturer specifications and general industry standards.
