10kW 48V TBB Power TYRANN Inverter charger
10kW 48V TBB Power TYRANN Inverter charger
SKU:TRN-48-10K
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

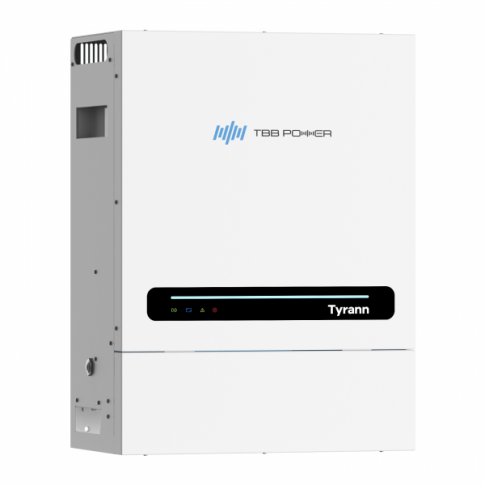

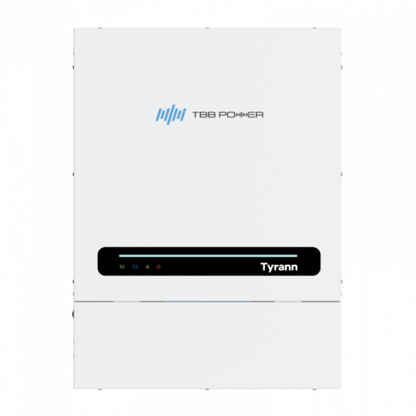

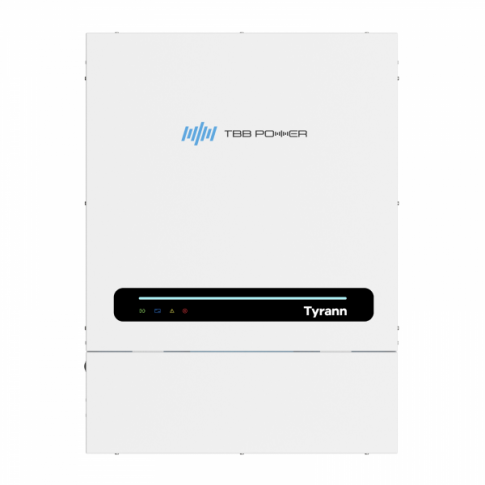

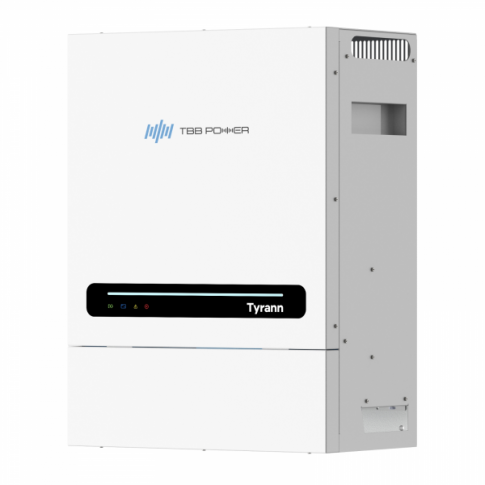

TBB Power Tyrann 10kW 48V Inverter Charger
SKU: TRN-48-10K | Professional Grade Off-Grid Power
The TRN-48-10K is a rugged, high-capacity 10kW 48V inverter charger from the TBB Power Tyrann series. Engineered for critical power applications and demanding off-grid environments, this unit combines a pure sine wave inverter, a sophisticated 140A battery charger, and an ultra-fast 100A automatic transfer switch. It is designed to provide seamless power for heavy-duty appliances, workshops, and Energy Storage Systems (ESS).
Key Features
- ✔ 10,000W Continuous Output
- ✔ 300% Surge Capacity (30kW)
- ✔ 96% Peak Efficiency
- ✔ 0ms Transfer Time (UPS Class)
- ✔ Built-in 100A AC Transfer Switch
- ✔ Lithium & Lead-Acid Compatible
Technical Specs
| Nominal Voltage | 48V DC |
| AC Output | 220-240V AC (50/60Hz) |
| Max Charging Current | 140A |
| Waveform | Pure Sine Wave |
| Dimensions | 672 x 498 x 290 mm |
| Weight | 74 kg |
| IP Rating | IP21 |
Compatibility / Fitment Guide
| System Type | Model/Application | Notes |
|---|---|---|
| Battery Banks | 48V LiFePO4 / GEL / AGM | Advanced battery management for multiple chemistries. |
| Solar Controllers | Solar Mate SP600 MPPT | Optimized integration with TBB solar controllers. |
| Monitoring | Nova App / Kinergy-II Wi-Fi | Requires TBB-KIN2 module for remote access. |
| ESS Components | E4 LCD Monitor / IC-METER | Unlocks grid-tie and zero-export capabilities. |
OEM Cross Reference
| Manufacturer | TBB Power |
| Series Name | Tyrann Inverter Charger |
| Reference SKU | TRN-48-10K / 10kW 48V Tyrann |
Installation Guide
Due to the significant weight (74kg) and 48V DC current requirements, professional installation is mandatory. Ensure cabling is sized correctly for a 140A charge/discharge rate and use appropriate fusing between the battery bank and the inverter. The unit supports wall mounting with adequate ventilation clearance.
Questions & Answers
Is this unit compatible with three-phase systems?
Yes, the Tyrann TRN series supports parallel and three-phase configurations to expand system capacity for larger industrial or residential loads.
How do I know if it is compatible?
Verify that your battery bank is 48V nominal. If you are replacing an existing TBB Power unit, check for the TRN-48-10K SKU on the side panel for a direct-fit replacement.
Can it work with high-frequency loads like motors?
Yes, the low-frequency transformer topology used in the Tyrann series provides an exceptional 300% surge rating, making it ideal for starting heavy inductive loads like air conditioners, pumps, and compressors.
Note: Please verify your system voltage and power requirements before purchasing. Distributed by Solarika.co.uk.
