10A dual battery solar charge controller with a remote LCD meter
10A dual battery solar charge controller with a remote LCD meter
SKU:DB1024-RM
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

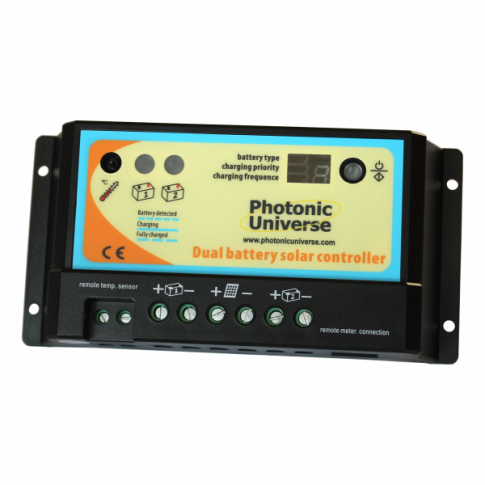

DB1024-RM Solar Charge Controller
Dual Battery Charging | 10A 12V/24V | Remote LCD Meter Included
The Solarika DB1024-RM is a high-efficiency 10A PWM solar charge controller specifically engineered for systems with two separate batteries (such as a starter battery and a leisure battery). This unit automatically manages the distribution of charge between the two batteries based on user-defined priority levels, ensuring your engine battery is always ready to go while your leisure battery stays topped up.
Key Features
- ✔ Independent charging for 2 batteries

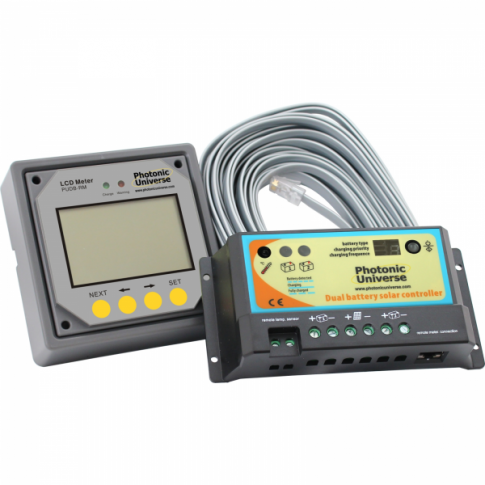

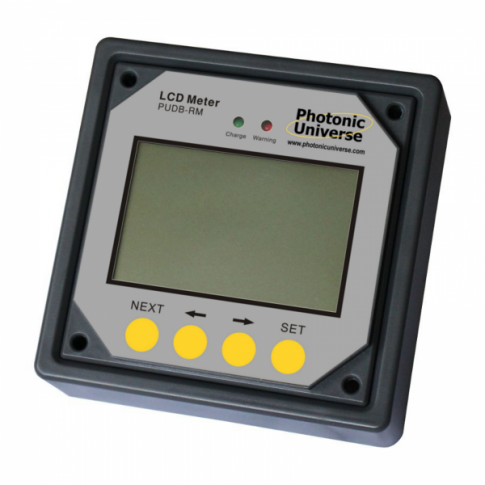

- ✔ Remote LCD display with 10m cable
- ✔ Smart PWM charging technology
- ✔ Automatic 12V/24V system detection
- ✔ Night-time reverse current protection
Technical Specs
| Rated Current: | 10A |
| System Voltage: | 12V / 24V Auto |
| Max Solar Input: | 160W (12V) / 320W (24V) |
| Battery Types: | Sealed, Gel, Flooded |
| Terminal Size: | Up to 4.0mm² |
| Self-Consumption: | 4mA (Night), 10mA (Charging) |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Motorhomes & RVs | Engine & Leisure Battery | Prioritise engine start battery |
| Marine / Boats | Starter & Service Banks | Corrosion-resistant connections |
| Off-Grid Kits | Sheds / Remote Lighting | Supports single battery use also |
OEM Cross Reference
| Manufacturer SKU | DB1024-RM |
| Alternative Ref | PUDB1024RM |
| Eos Ref | DB1024RM-KIT |
Installation Guide
1. Connect the batteries first (Battery 1 usually prioritized). 2. Connect the Solar Panel to the "Solar" terminals. 3. Connect the Remote Meter via the RJ45 port using the provided 10m cable. Set your battery type (Gel, Sealed, or Flooded) on the controller to ensure the correct charging profile.
Questions & Answers
Is this a genuine original part?
This is a premium quality Solarika solar component, manufactured to meet or exceed original equipment (OE) standards for off-grid power management.
How do I know if it is compatible?
If you have a 12V or 24V system with two battery banks and a solar panel up to 160W (for 12V), this is the correct controller. It works with all standard lead-acid battery types.
Can I use this with just one battery?
Yes, the controller will automatically detect if only one battery is connected and will direct 100% of the solar power to that single battery until you choose to add a second.
Note: Please verify your system voltage and panel wattage against the references above before purchasing. Domain: Solarika.co.uk
