RELIABILITY: Built with high-efficiency components (>90%) and advanced safety protocols including short circuit, overheat, and overcharge protection.

Key Features

• ✔ 4-Stage Charging (Bulk, Absorption, Float)
• ✔ Universal Battery Support (Lithium & Lead Acid)
• ✔ Inbuilt Fan Cooling for sustained 10A output
• ✔ DIP Switch selectable charging profiles
• ✔ Includes 1.5m UK 3-pin AC Mains Cable

Technical Specs

AC Input Voltage:	180V - 260V AC
DC Output Current:	10A
Nominal Output:	48V DC
Efficiency:	> 90%
Suggested Capacity:	30Ah - 100Ah
Dimensions:	221 x 155 x 70 mm
Weight:	1.4 kg

Battery Type	Chemistry	Typical Application
Lead Acid	Wet, AGM, Gel	Golf Carts, Mobility Scooters
Lithium Ion	NMC / Li-Ion	Electric Propulsion, E-Bikes
LiFePO4	Lithium Iron Phosphate	Solar Off-Grid, RV Power Walls

1. Ensure the AC mains power is off before connecting to the battery.

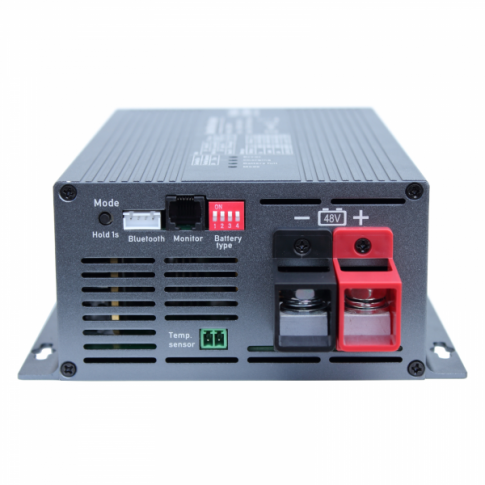

2. Select the correct battery profile using the DIP switches located on the unit (refer to manual for settings).
3. Connect the DC terminals to your 48V battery (Red to +, Black to -).
4. Plug into the AC supply and switch on. The LED indicators will show the current charging phase (Bulk/Abs/Float).

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for performance and safety.

How do I know if it is compatible?

Check that your battery system is 48V nominal. This charger supports standard lead-acid and lithium chemistries. If your SKU matches BC4810PRO, this is the exact technical replacement.

Can this charger be left connected permanently?

Yes. Once the battery reaches full charge, the charger automatically switches to Float/Maintenance mode to prevent overcharging while keeping the battery topped up.
