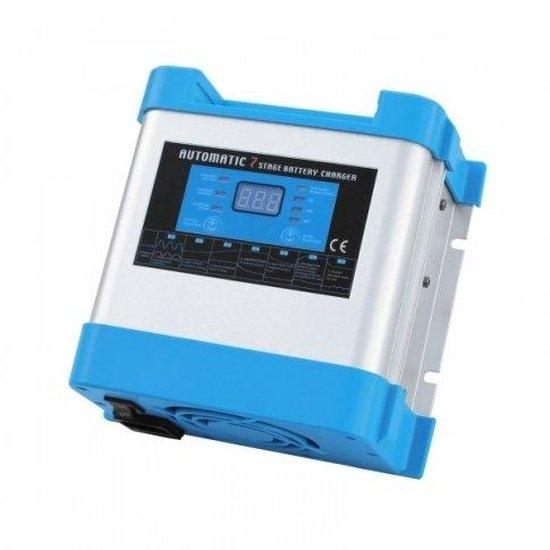

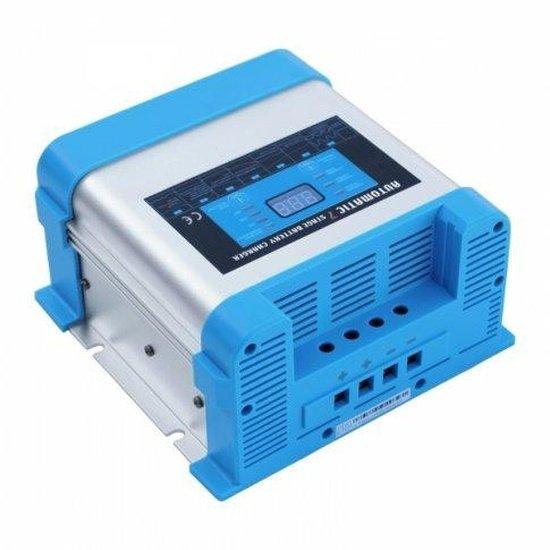

10A 24V Intelligent Automatic Multi-Stage Mains Battery Charger
Model BC2410 | 7-Stage Charging | Lead Acid, AGM, Gel, Wet Cell
The Photonic Universe 10A 24V Intelligent Automatic Multi-Stage Mains Battery Charger (Model BC2410) is engineered for safe and efficient unattended charging of a 24V battery bank from a standard 220-240V AC mains power source. This advanced charger features a sophisticated 7-stage charging process, ensuring faster and more effective charging while actively preventing voltage fluctuations.
Designed for versatility, this unit is compatible with various 24V Lead Acid battery types, including AGM, Gel, and traditional Wet cell batteries. It can also charge multiple 24V batteries connected in parallel, provided they are of the same type, capacity, and age.
COMPATIBILITY NOTE: Designed for 24V Lead Acid Batteries (AGM, Gel, Wet Cell) only.
Key Features
| ▶ Safe Unattended Charging — Built-in protections against DC short circuit, overheating, and overcharging allow continuous connection. |
| ▶ Advanced 7-Stage Process — Delivers faster, more efficient charging while eliminating voltage fluctuations. |
| ▶ Boost Charging Feature — Improves battery condition and recovers lost capacity from older batteries. |
| ▶ Dead Battery Recovery — Includes a desulphation stage to help restore flat batteries. |
| ▶ Power Pack Function — Provides a direct 24V DC supply to loads without a battery connected. |
| ▶ LCD Display & LEDs — Shows vital charging information (voltage, current, stages) and battery type. |

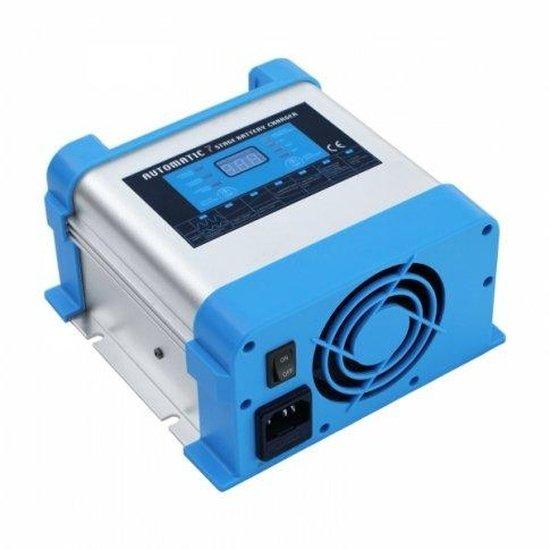

| ▶ Automatic Temperature Control — An inbuilt fan activates automatically to maintain optimal internal temperature. |
| ▶ Continuous Operation — Maintains charge even when energy is drawn from the battery during use. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (AC) | 190V - 265V (50 Hz) |
| DC Output Current | 10A |
| DC Output Voltage | 24V |
| Suggested Battery Capacity | 25 - 200Ah |
| Bulk/Absorption Voltage | 28.4V - 29.6V DC (selectable) |
| Float Charging Voltage | 26.4V - 27.6V DC (selectable) |
| Efficiency | < 88% |
| Operating Temperature | 0°C - 40°C |
| Dimensions (L x W x H) | 176 x 175 x 95 mm |
| Weight | 1.0 kg |
| Cooling | Inbuilt Fan (Automatic) |
| Output Type | Isolated DC Output |
Charging & Output Modes
This intelligent charger employs a comprehensive 7-stage charging algorithm to optimise battery health and extend lifespan:
| Stage | Description |
|---|---|
| 1. Desulphation | Breaks down sulphation that occurs in batteries left flat for extended periods. |
| 2. Soft Start | A preliminary charge process that gently introduces power to the battery, protecting it. |
| 3. Bulk Charge | Charges with maximum current until approximately 80% battery capacity is reached. |
| 4. Absorption Charge | Charging with declining current to maximise battery capacity up to 100%. |
| 5. Battery Test | Tests the battery's ability to accept and retain power; indicates if replacement is needed. |
| 6. Recondition | Automatically activated if needed, increasing voltage to create controlled gassing and mix battery acid. |
| 7. Float Charge | Maintains the battery at 100% charge without overcharging, allowing indefinite connection. |
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Efficiently charges 24V leisure batteries from campsite hook-ups or domestic mains. |
| Boats & Yachts | Maintains marine 24V battery banks when docked, ensuring readiness for use. |
| Off-Grid Systems | Provides reliable charging for 24V battery banks from a generator or temporary mains connection. |
| Workshops & Garages | Ideal for charging and maintaining 24V vehicle or equipment batteries. |
Built-In Protection Functions
The Photonic Universe BC2410 charger incorporates multiple safety features for reliable and worry-free operation. These include protection against: • Overcharging • DC Short Circuit • Overheating These safeguards ensure the longevity of your battery and the charger itself, allowing for safe, unattended charging.
Common Questions
What battery types are compatible with this charger?
This charger is specifically designed for 24V Lead Acid batteries, including common types such as AGM, Gel, and traditional Wet cell batteries.
Can I leave the charger connected to my battery indefinitely?
Yes, the intelligent 7-stage charging process includes a 'Float Charge' stage that safely maintains a full charge without overcharging or damaging the battery, making it suitable for long-term connection.
What is the "Power Pack Function"?
The Power Pack Function allows the charger to provide a direct 24V DC power supply to a load (e.g., a 24V fridge) even when no battery is connected. This is particularly useful during battery replacement or for temporary power needs.
Can I charge multiple 24V batteries at once?
Yes, this charger can be used to charge multiple 24V batteries connected in parallel. For optimal performance and safety, ensure that all batteries are of the same type, capacity, and age.
Installation Notes
- Ensure adequate ventilation around the charger and battery to prevent overheating.
- Always connect the charger to the battery first before plugging it into the mains AC power source.
- Observe correct polarity when connecting the DC battery cables to prevent damage.
- The charger is supplied with a 1.5m UK 3-pin mains AC cable and a 0.5m DC battery cable.
- Refer to the manufacturer's manual for detailed installation and safety guidelines.
Before You Buy
- Confirm your battery bank is a 24V Lead Acid type (AGM, Gel, or Wet cell).
- Verify the suggested battery capacity (25-200Ah) meets your specific requirements.
- Ensure you have access to a standard UK 220-240V AC mains power source.
- Consider the physical dimensions (176 x 175 x 95 mm) for your intended installation space.
- This product is designed for mains charging and is not a solar charge controller.
Please verify all specifications and compatibility requirements before purchase. This product is covered by a 1-year manufacturer warranty.
