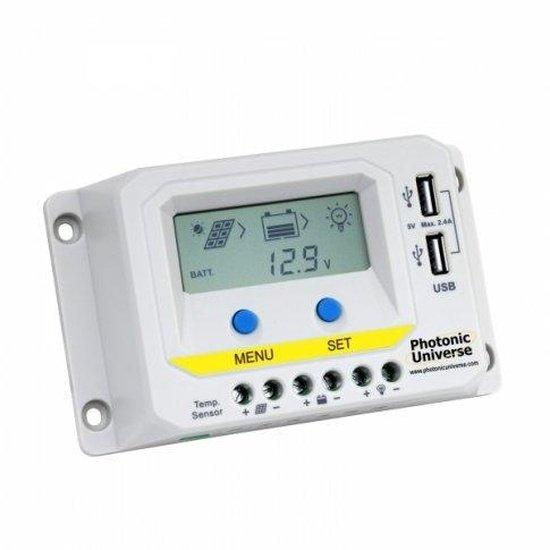

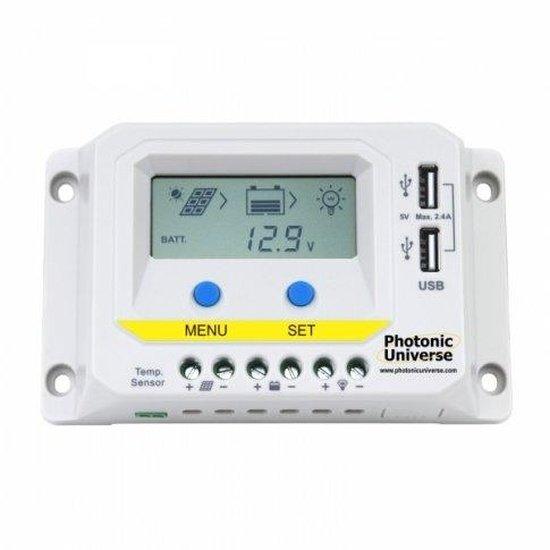

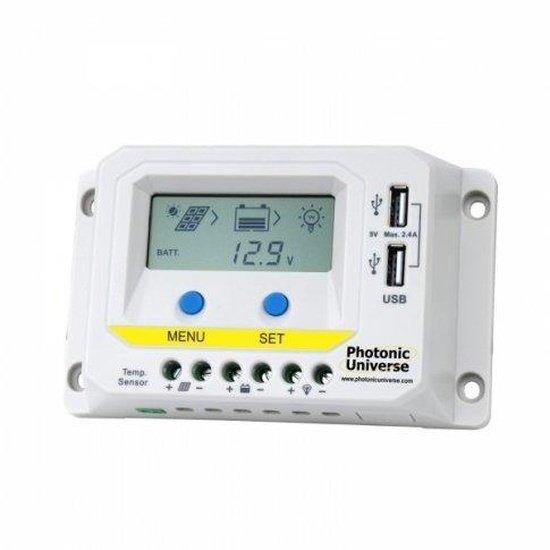

10A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)
10A 12V/24V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)
SKU:VS1024AU
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Discover the ultimate control for your solar power system with our 10A 12V/24V Solar Charge Controller. This intelligent regulator is your key to maximizing energy efficiency and extending battery life, all while providing convenient, fast charging for your mobile devices. It's designed for anyone seeking a reliable, user-friendly solution to manage their off-grid power with confidence and ease.
At the heart of this controller is its advanced technology, ensuring your solar panels and batteries work in perfect harmony. Experience peace of mind with comprehensive protection and detailed monitoring capabilities, all accessible through a clear LCD display.
- Intelligent Power Management: Our controller intelligently manages your solar charging process using PWM (Pulse Width Modulation) technology. This advanced method significantly boosts charge acceptance and helps extend your battery's lifespan, even aiding in recovering some lost battery capacity.
-
Comprehensive Battery Protection: Your battery bank is fully safeguarded. This controller includes robust electronic safety features to prevent:
- Reverse current flow at night (from battery to solar panel)
- Automatic cut-off to prevent over-charging
- Deep discharge
- Overheating
- Overload
- Short circuits
- Reverse polarity (for both solar panels and batteries)
-
Real-time Monitoring & User-Friendly Display: The integrated LCD display provides a wealth of information at your fingertips. Navigate easily using two multifunctional buttons to view:
- Real-time solar panel and battery performance data (voltage, current, battery state of charge, temperature)
- An energy statistics counter showing accumulated daily and monthly charge values, perfect for tracking performance over time.
- Versatile Load Management: Beyond charging, you can connect an optional 12V DC load, such as lighting or fans, directly to the controller. Enjoy various settings for night-time lighting applications, giving you flexible control over your power usage.
- Customizable Charging Programs: This controller offers multiple charging programs tailored for different battery types, including sealed, gel, or flooded batteries. It automatically detects if you're using a 12V or 24V battery system and adjusts its operation accordingly.
- Powerful Dual USB Output: Stay connected on the go! The controller features two 5V USB ports with a combined output of 2.4A. This allows for fast and efficient charging of your USB-compatible devices like mobile phones, tablets, and MP3 players.
For even greater precision, the controller includes terminals for an optional remote temperature sensor (sold separately). This sensor helps obtain a more exact temperature measurement, further optimizing the charging process for your batteries.
System Compatibility:
This versatile controller supports solar panel arrays with a combined power of up to 160W for 12V battery systems or a substantial 320W for 24V battery systems. With a wide solar input voltage range of up to 50V, it's capable of working with certain on-grid solar modules that have a higher voltage than standard 12V/24V setups, offering excellent flexibility for your solar project.
Key Specifications:
- Fully automated operation with auto 12V/24V system selection
- Rated charge/discharge current: 10A
- Maximum solar panel input power: 160W (12V system) / 320W (24V system)
- Maximum solar panel input voltage: 50V
- Temperature sensor for automatic compensation: -3mV/°C/2V (25°C)
- Working temperature range: -25°C to +55°C
- Minimal self-consumption: max. 9.2mA (12V) / 11.7mA (24V)
- 3 pairs of robust terminals (solar, battery, optional load)
- Terminals compatible with wires up to 4mm²
- Multiple mounting holes for straightforward installation
- Compact size: 14.2 x 8.5 x 4.1 cm
- Lightweight: 220 g
- Backed by a 1-year manufacturer warranty
Effortless Installation & Support:
Setting up your new solar charge controller is simple. Each unit comes with a detailed user manual clearly explaining wiring and operational steps. Should you require any assistance with installation or have technical questions, free support is readily available via email or phone to ensure your system runs smoothly.
Choose our 10A Solar Charge Controller and invest in a smarter, safer, and more efficient solar power system. Enjoy the peace of mind that comes with advanced battery protection, the convenience of dual USB charging, and the power of real-time performance monitoring. This controller is not just a component; it's the intelligent heart of your off-grid energy solution, built for durability and ease of use. Power your adventure, secure your energy, and stay connected with a controller designed for real-world reliability.
