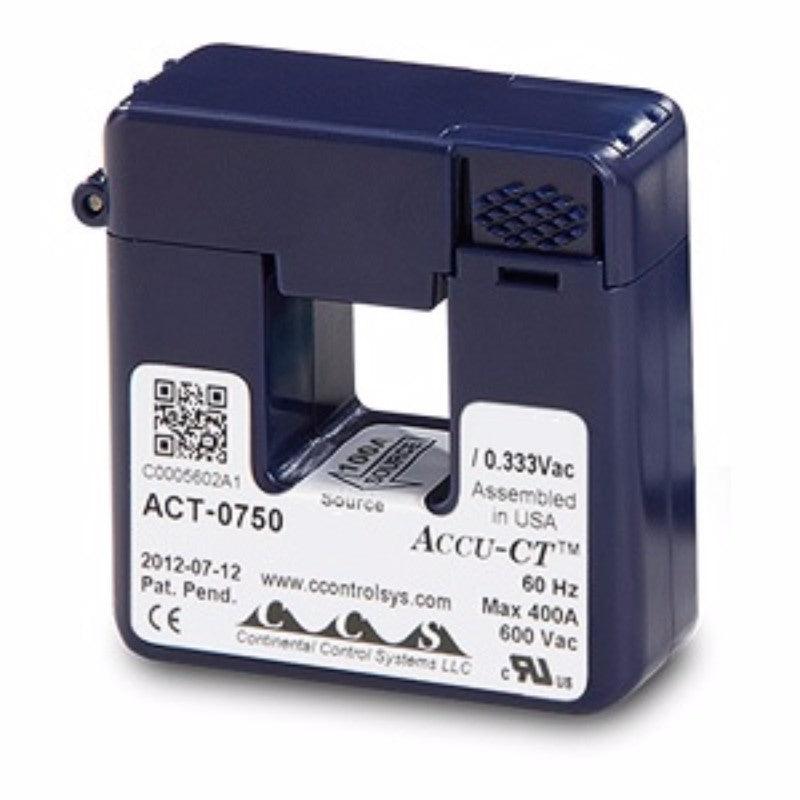

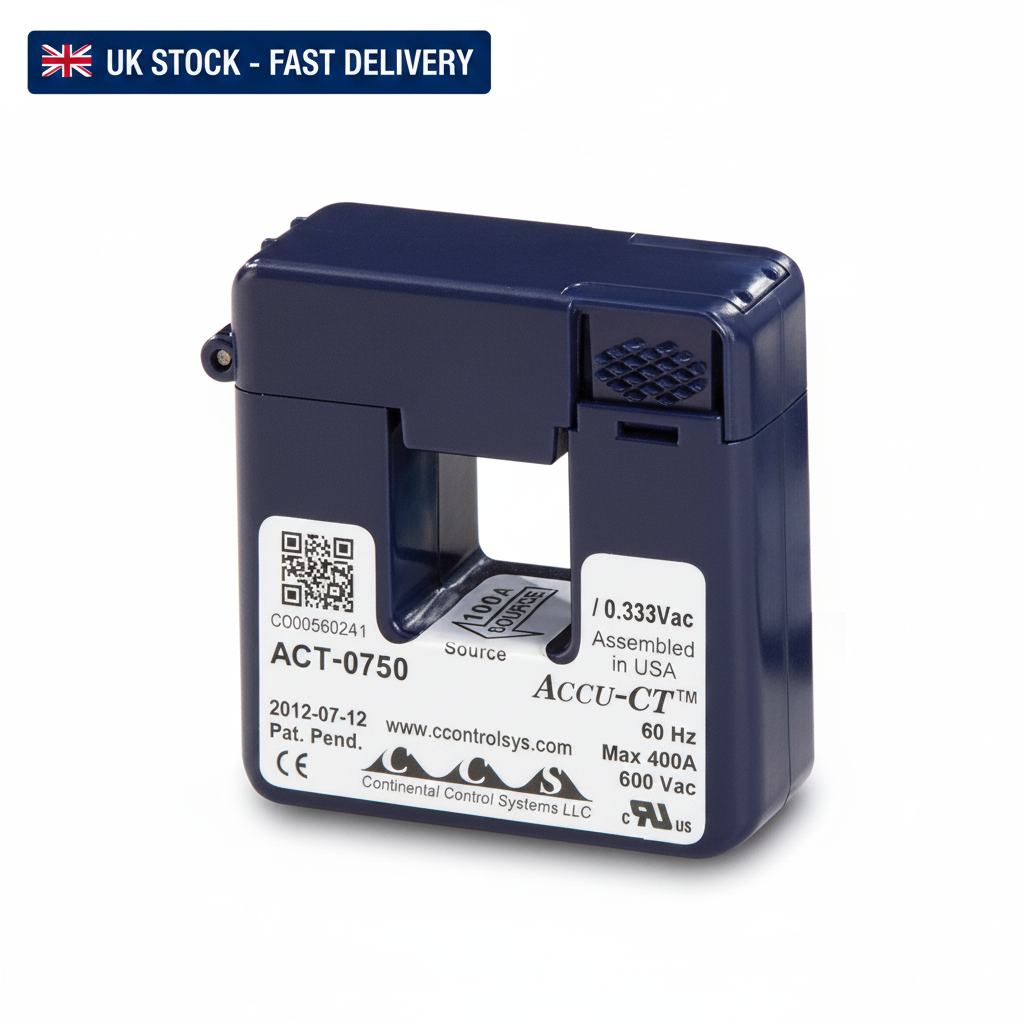

100A CT Clamp for SolarEdge Wattnode Modbus
High-Precision Current Measurement | Consumption & Production Monitoring
The 100A CT Clamp is a specialised current transformer designed for seamless integration with SolarEdge Wattnode Modbus energy meters, such as the SE-WND-3Y400-MB-K2. This high-precision accessory is essential for accurately measuring electrical currents up to 100 amps in solar energy systems, providing crucial data for comprehensive energy monitoring and analysis.
It enables reliable tracking of energy production, consumption, import, and export, supporting efficient system optimisation and compliance with energy management requirements. The clamp's non-intrusive design allows for straightforward installation without the need for wire cutting or disconnection.
COMPATIBILITY NOTE: This CT clamp is specifically designed for use with SolarEdge Wattnode Modbus meters.
Key Features
| ▶ Dedicated Compatibility — Engineered to integrate seamlessly with SolarEdge Wattnode Modbus meters for accurate data transmission. |
| ▶ 100A Current Rating — Capable of measuring electrical currents up to 100 amps, suitable for various solar installations. |
| ▶ Non-Intrusive Measurement — Clamps securely around a single conductor, allowing current monitoring without wire cutting or disconnection. |
| ▶ High Precision — Provides reliable and accurate current measurements for effective energy analysis. |
| ▶ Robust Construction — Built with quality materials to ensure long-term durability and consistent performance in solar environments. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Current Transformer (CT) Clamp |
| Current Rating | 100A |
| Compatibility | SolarEdge Wattnode Modbus Meter |
| Measurement Type | AC Current |
| Installation | Split-core, non-intrusive |
Energy Monitoring Capabilities
When paired with a SolarEdge Wattnode Modbus meter, this 100A CT clamp facilitates a range of critical energy monitoring functions:
| Monitoring Function | Description |
|---|---|
| Consumption Monitoring | Accurately track the total energy usage within the property. |
| Production Monitoring | Measure the real-time output of your solar PV system. |
| Import/Export Monitoring | Distinguish between energy imported from and exported to the grid. |
| Export Limitation Support | Provides data necessary for systems requiring grid export control. |
Typical Applications
| Application | Description |
|---|---|
| Residential Solar PV Systems | Monitor household energy consumption and solar generation for optimisation. |
| Small Commercial Installations | Track energy flows in smaller business premises for improved energy management. |
| Energy Management Systems | Provide accurate current data to energy management platforms for analysis and reporting. |
Reliability & Safe Measurement
The 100A CT Clamp is designed for reliable and safe operation within solar energy systems. Its split-core, non-intrusive design ensures that current measurements can be taken without direct contact with live conductors, enhancing safety during installation and operation. The robust construction and high-quality materials contribute to its long-term durability and consistent accuracy, providing dependable data for critical energy monitoring applications.
Common Questions
What is the 100A CT Clamp used for?
This CT clamp is used to accurately measure electrical current up to 100 amps. When connected to a SolarEdge Wattnode Modbus meter, it provides data for monitoring energy production, consumption, import, and export in solar PV systems.
Is this CT clamp compatible with any inverter?
No, this 100A CT Clamp is specifically designed for seamless integration with SolarEdge Wattnode Modbus energy meters. It is not a universal CT clamp and may not function correctly with other inverter or meter brands.
How is the CT clamp installed?
The CT clamp features a split-core design, allowing it to be clamped around a single electrical conductor without needing to cut or disconnect wires. It then connects to the designated input terminals on the SolarEdge Wattnode Modbus meter. Always ensure power is off before installation.
Can it be used for three-phase systems?
Yes, for three-phase electrical systems, a separate CT clamp is typically required for each phase to ensure comprehensive and accurate monitoring. Consult the Wattnode Modbus meter's installation guide for specific wiring diagrams.
Installation Notes
- Always ensure the main power supply is switched off before attempting any installation or wiring.
- Install the CT clamp around a single conductor only, ensuring the arrow on the clamp points towards the grid for consumption/export measurement.
- Connect the CT clamp leads to the appropriate terminals on your SolarEdge Wattnode Modbus meter as per the meter's installation manual.
- For multi-phase systems, install one CT clamp per phase for accurate readings.
- Consult the official SolarEdge Wattnode Modbus meter installation guide for detailed wiring diagrams and configuration instructions.
Before You Buy
- Verify Compatibility: Confirm that this 100A CT Clamp is compatible with your specific SolarEdge Wattnode Modbus meter model (e.g., SE-WND-3Y400-MB-K2).
- Current Requirements: Ensure the 100A rating is sufficient for the maximum current you intend to measure in your application.
- System Configuration: Understand how many CT clamps are required for your single-phase or three-phase system.
- Professional Installation: For safety and optimal performance, installation should be carried out by a qualified electrician or solar professional.
Always refer to the manufacturer's official documentation for the most accurate and up-to-date product specifications and installation guidelines. Compatibility and performance may vary based on specific system configurations.
