1000W 48V MPPT wind charge controller with LCD display and dump load
1000W 48V MPPT wind charge controller with LCD display and dump load
SKU:HCM1000-48-48
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

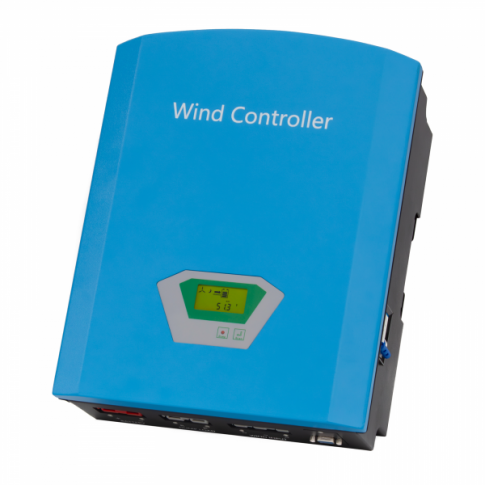

HCM1000-48-48 Wind Controller
1kW 48V MPPT Boost Power Management System
The HCM1000-48-48 is a professional-grade wind power generation controller designed to optimize energy harvest from 48V wind turbine systems. Integrating advanced MPPT (Maximum Power Point Tracking) and Boost technology, this unit ensures your battery bank receives a charge even in low wind conditions where turbine voltage typically falls below the battery threshold.
Key Features
- ✔ MPPT Boost Technology: Charges batteries in low wind.
- ✔ Intelligent Braking: Automatic over-current/voltage protection.
- ✔ LCD Interface: Real-time monitoring of voltage & power.
- ✔ RS232 Connectivity: Remote monitoring and data logging.
Technical Specs
| Rated Power: | 1000W (1kW) |
| System Voltage: | 48V DC |
| Controller Type: | Boost / MPPT |
| Brake Current: | 21A (0-25A Adjustable) |
| Display: | Backlit LCD |
Compatibility / Application Guide
| System Type | Application | Notes |
|---|---|---|
| Off-Grid Wind | 48V Battery Charging | Compatible with most 3-phase AC turbines. |
| Marine/RV | Auxiliary Power Systems | High corrosion resistance enclosure. |
| Hybrid Systems | Wind/Solar Parallel Setup | Supports standard 48V solar-wind integration. |
OEM Cross Reference
| Manufacturer | Reference Number |
| MWM Series | MWM-1000-48 / MWM-1000-48-48 |
| Photonic Universe | HCM1000-48 |
| Mars Rock | 1000W48V-MPPT-B |

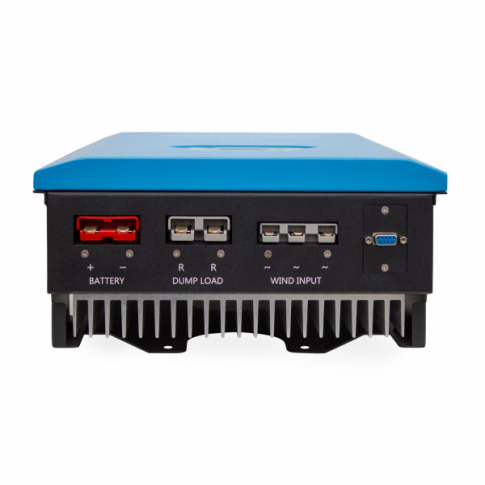

Installation Guide
1. Connect the Battery bank first (ensure 48V polarity is correct).
2. Connect the Wind Turbine 3-phase AC input terminals.

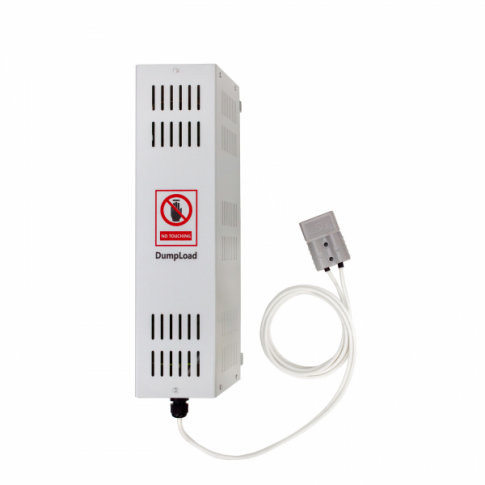

3. Connect the Dump Load (external resistor) to prevent overspeed during high winds.
4. Configure the LCD parameters (Brake Current/Voltage) to match your specific battery type.
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for wind power management and durability.
How do I know if it is compatible?
Check your existing controller or turbine manual. If your system is 48V and your turbine output is 1000W or less, the HCM1000-48-48 is the ideal direct replacement or upgrade.
What does the 'Boost' function do?
The Boost function enables the controller to step up the voltage from the turbine when it is spinning slowly, allowing it to charge a 48V battery even when the turbine is only producing 15-20V.
Note: solarika recommends professional installation for all power electronics. Please verify your system voltage matches before purchase.
