Victron Phoenix Inverter 12/250 12V 250VA 230V VE.Direct Pure Sine PIN122510400
Victron Phoenix Inverter 12/250 12V 250VA 230V VE.Direct Pure Sine PIN122510400
SKU:VPX250-12
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

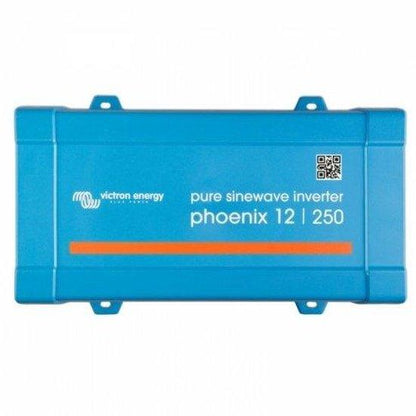

Victron Phoenix Inverter 12/250 VE.Direct
Premium Pure Sine Wave Power Replacement
The Victron Phoenix Inverter 12/250 is a professional-grade solution for converting 12V battery power into clean 230V AC mains electricity. Utilizing a toroidal transformer topology, this inverter offers superior reliability and the ability to handle high-surge loads such as LED drivers, computers, and small power tools. Its pure sine wave output ensures that even the most sensitive electronics operate without interference or damage.
Key Features

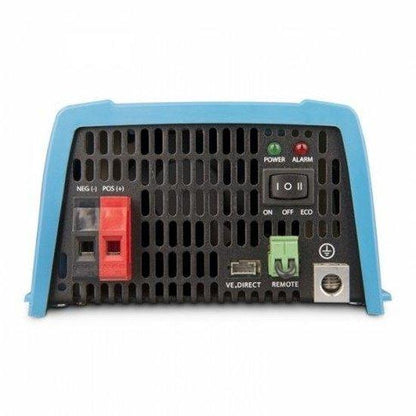

- ✔ VE.Direct communication port for PC or Smartphone
- ✔ Fully configurable low battery voltage alarms
- ✔ ECO mode reduces self-consumption to 0.8W
- ✔ High start-up power (400W peak)
- ✔ Short circuit and thermal protection
Technical Specs
| Input Voltage: | 9.2 - 17V DC |
| Output Voltage: | 230V AC ± 3% |
| Cont. Power (25°C): | 250VA / 200W |
| Peak Power: | 400W |
| Max Efficiency: | 87% |
| Dimensions: | 86 x 165 x 260 mm |
| Weight: | 2.4 kg |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| 12V Battery Systems | Caravans, Boats, RVs | Ideal for small domestic loads. |
| Off-Grid Solar | Small Cabins & Remote Power | Low zero-load power draw. |
| Sensitive Electronics | Laptops, TVs, LED Lights | Pure sine wave protects circuits. |
OEM Cross Reference
| Victron Part Number (UK) | PIN122510400 / PIN121251400 |
| Victron Part Number (Schuko) | PIN122510200 |
| Victron Part Number (IEC) | PIN122510500 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part supplied by Solarika, engineered to meet or exceed original manufacturer specifications for performance and reliability.
How do I know if it is compatible?
Check the MPN PIN122510400 against your original unit. This model is designed for 12V DC input and 230V AC output systems.

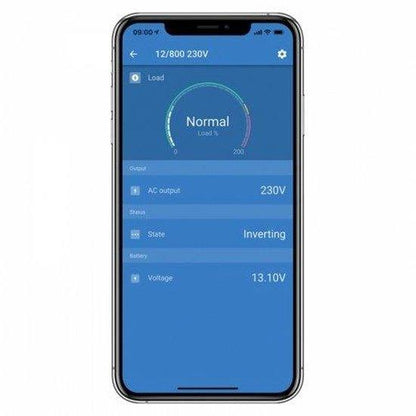

Can I monitor this inverter on my smartphone?
Yes, the inbuilt VE.Direct port allows for wireless monitoring and configuration via the VictronConnect app when used with an optional VE.Direct Bluetooth Smart Dongle (sold separately).
Note: Please verify your original part number and system voltage against the references above before purchasing. Domain: Solarika.co.uk
