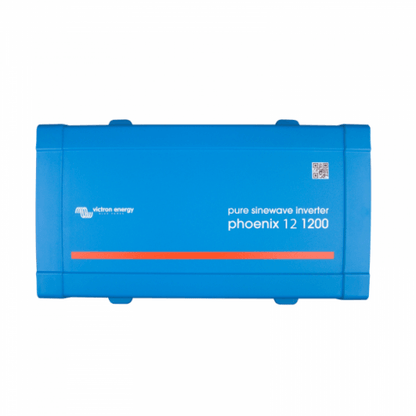

Victron Phoenix Inverter 12V 1200VA 1000W
Pure Sine Wave | 230V AC | VE.Direct | MPN: PIN122120400
The Victron Phoenix Inverter 12V 1200VA 1000W 230V VE.Direct (PIN122120400) is a high-performance pure sine wave inverter designed to convert 12V DC battery power into stable 230V AC electricity. Manufactured by Victron Energy, this robust inverter is ideal for a wide range of applications, from off-grid solar systems to mobile setups in campervans, motorhomes, and marine vessels.
Featuring a VE.Direct communication port, this Phoenix inverter allows for comprehensive monitoring and configuration via a computer or smartphone, ensuring optimal control over your power system. Its pure sine wave output guarantees safe and reliable operation for even the most sensitive electronic equipment.
KEY BENEFIT: Delivers reliable 1000W continuous pure sine wave power for sensitive electronics and demanding loads.
Key Features
| ▶ Pure Sine Wave Output — Provides clean, stable power suitable for all electronics. |
| ▶ VE.Direct Port — Enables monitoring and configuration via VictronConnect app on PC or smartphone. |
| ▶ ECO Mode — Reduces standby power consumption by switching to standby when load is low. |
| ▶ High Start-up Power — Capable of handling demanding loads like power tools and LED lamps. |
| ▶ Robust & Reliable Design — Features a full-bridge plus toroidal transformer topology for durability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Continuous Power (25°C) | 1000W / 1200VA |
| Peak Power | 2200W |
| Input Voltage Range | 9.2V – 17.0V DC |
| Output Voltage | 230V AC ± 3% |
| Output Frequency | 50Hz (Configurable 60Hz) |
| Max. Efficiency | 91% |
| Output Socket | UK 3-pin (BS 1363) |
| Dimensions (H x W x D) | 117 x 232 x 327 mm |
| Weight | 7.4 kg |
Operating & Power Guidance
The Victron Phoenix Inverter 12/1200 is engineered with SinusMax technology, providing a high start-up power capability that allows it to energise demanding loads such as power converters for LED lamps, halogen lamps, or electric tools. Its pure sine wave output ensures that sensitive electronics, including laptops, medical devices, and audio equipment, operate without interference or damage.
For energy efficiency, the inverter features an ECO mode. When the load drops below a preset value (minimum 15W), the inverter switches to standby, significantly reducing its own power consumption. It periodically checks for a load and will automatically switch back on if the demand exceeds the preset level.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Provides reliable AC power for remote cabins, sheds, and standalone solar installations. |
| Campervans & Motorhomes | Powers domestic appliances and electronics on the go from a 12V leisure battery. |
| Marine Vessels | Converts 12V boat battery power to 230V AC for onboard equipment and comforts. |
| Backup Power Solutions | Ensures essential devices continue to operate during mains power outages. |
Built-In Protection Functions
The Victron Phoenix Inverter 12/1200 is designed for safety and longevity, incorporating multiple protection features. These include safeguards against overload, short circuit, high battery voltage, low battery voltage, and over-temperature conditions. The robust full-bridge plus toroidal transformer topology further enhances its reliability in demanding environments.
Cross Reference
| Victron MPN (UK 3-pin) | PIN122120400 |

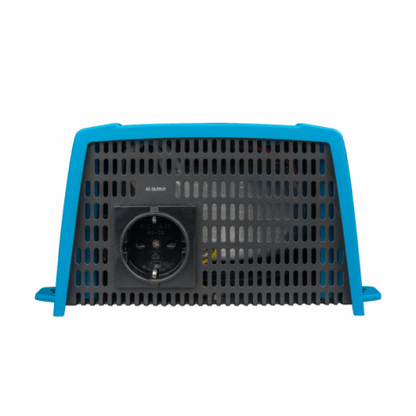

| Victron MPN (Schuko) | PIN122120200 |
| Victron MPN (AU/NZ) | PIN122121400 |
Common Questions
What is a pure sine wave inverter?
A pure sine wave inverter produces an AC waveform that is identical to the mains electricity supplied by utility companies. This clean power is essential for the safe and efficient operation of sensitive electronics, motors, and appliances, preventing damage and ensuring optimal performance.
How does the VE.Direct port enhance functionality?

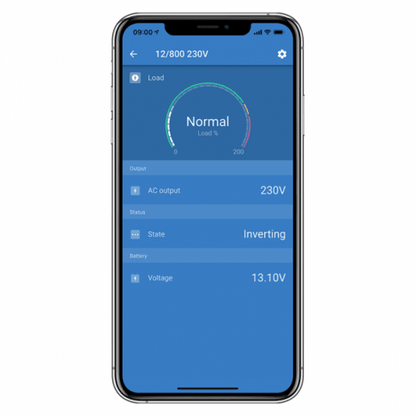

The VE.Direct port allows you to connect the inverter to a computer (via a VE.Direct to USB interface cable) or a smartphone/tablet (via a VE.Direct Bluetooth Smart dongle, sold separately). This enables comprehensive monitoring of input/output voltage, load percentage, and alarms, as well as full configuration of settings like low battery voltage cut-off, output voltage, frequency, and ECO mode thresholds.
What does the 1200VA / 1000W rating mean?
VA (Volt-Amps) represents the apparent power, while Watts (W) represents the real power. This inverter is rated for 1200VA or 1000W of continuous power at 25°C. For purely resistive loads (like heaters), VA and Watts are roughly the same. For reactive loads (like motors or fluorescent lights), the VA rating is often the limiting factor, indicating the maximum current the inverter can supply.
Is this inverter suitable for sensitive electronics?
Yes, absolutely. The Victron Phoenix Inverter 12/1200 produces a pure sine wave output, which is crucial for sensitive electronic devices. This ensures that your laptops, medical equipment, audio systems, and other delicate electronics receive clean, stable power, preventing damage and ensuring their proper functioning.
Installation Notes
- Professional installation by a qualified electrician is recommended for all power electronic components.
- Ensure adequate ventilation around the inverter (at least 10 cm clearance) to prevent overheating.
- Connect the inverter to a 12V DC battery bank using appropriately sized cabling to minimise voltage drop.
- Ensure the chassis is properly grounded as per local regulations for safety.
- Refer to the official Victron Energy manual for detailed installation instructions and wiring diagrams.
Before You Buy
- Verify your battery system voltage is 12V DC to ensure compatibility.
- Confirm the total continuous power (Watts) and peak power (Watts) requirements of your appliances.
- Check the MPN (PIN122120400) to ensure this is the correct UK 230V model for your needs.
- Consider if you require a VE.Direct to USB cable or Bluetooth Smart dongle for advanced monitoring.
- Ensure you have sufficient battery capacity to support the inverter's load for your desired duration.
All specifications are based on manufacturer data and verified information. Please confirm product details and compatibility with your system requirements before purchase. Victron Energy products typically carry a 5-year warranty.
