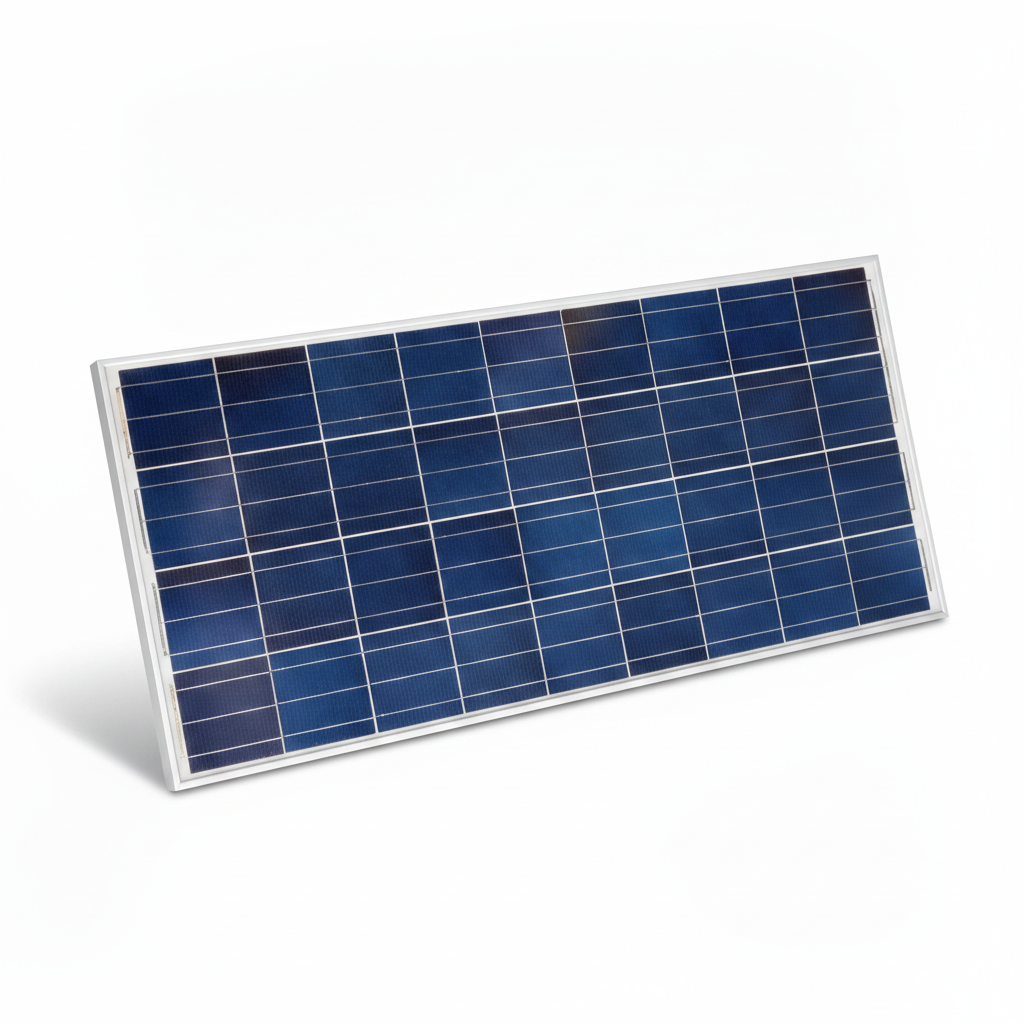

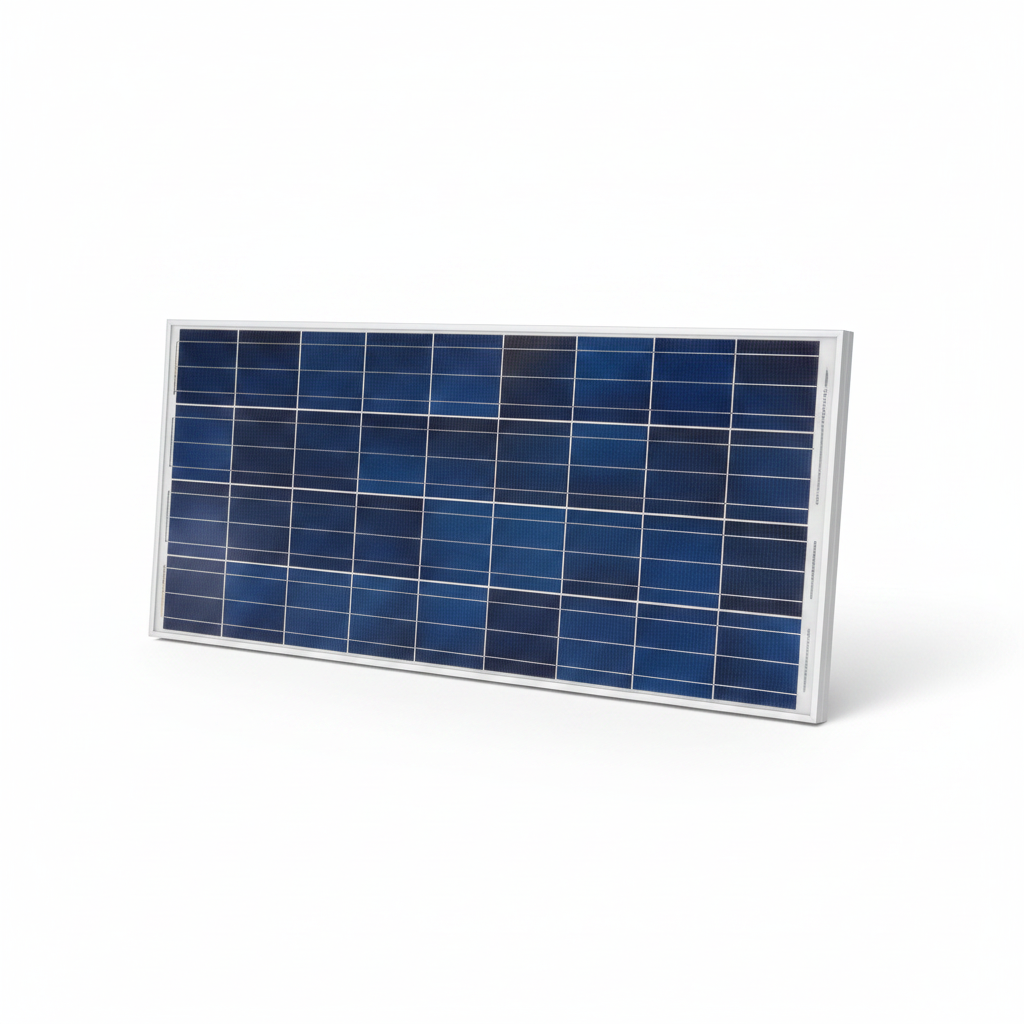

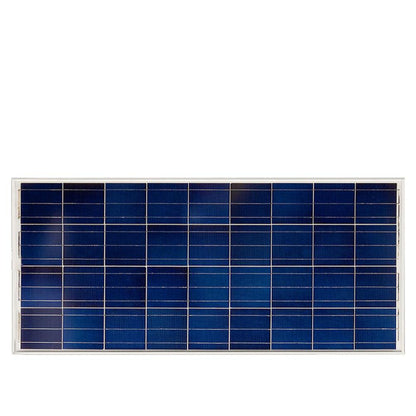

Victron BlueSolar Monocrystalline 12V Solar Panel - 175W
High-Efficiency | Robust Design | Off-Grid & Marine Ready
The Victron BlueSolar Monocrystalline 12V Solar Panel - 175W (SKU: SPM041751200) is engineered to provide a reliable and efficient power source for a wide range of 12V off-grid applications. Utilising advanced monocrystalline cell technology, this panel delivers excellent performance, even in challenging low-light conditions. Its robust construction ensures durability and longevity, making it an ideal choice for demanding environments.
Designed for UK customers seeking dependable renewable energy solutions, this 175W solar panel is suitable for charging 12V battery banks in various setups, from remote cabins and marine vessels to recreational vehicles and small off-grid systems.
KEY SPECIFICATION: 175W Monocrystalline panel, ideal for 12V battery charging systems.
Key Features
| ▶ Monocrystalline Technology — Offers increased efficiency for optimal power generation. |
| ▶ 175W Power Output — Provides a dependable energy source for 12V systems. |
| ▶ Low-Light Performance — Exceptional sensitivity to light across the solar spectrum for consistent output. |
| ▶ Durable Construction — Features a sturdy anodised aluminium frame and low-iron tempered glass. |
| ▶ Weather Resistant — Designed to withstand extreme weather conditions and corrosion. |
| ▶ Integrated Safety — Sealed, waterproof junction box with high-performance bypass diodes. |
| ▶ Easy Installation — Pre-wired with MC4 (PV-ST01) connectors for quick setup. |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Power (Pmax) | 175 Wp |
| Nominal System Voltage | 12 V |
| Voltage at Max Power (Vmp) | 19.4 V |
| Current at Max Power (Imp) | 9.03 A |
| Open Circuit Voltage (Voc) | 23.7 V |
| Short Circuit Current (Isc) | 9.89 A |
| Cell Type | Monocrystalline |
| Number of Cells | 36 |
| Dimensions (L x W x D) | 1485 x 668 x 30 mm |
| Weight | 11 kg |
| Max System Voltage | 1000 V |
| Operating Temperature | -40°C to +85°C |
| Connector Type | MC4 (PV-ST01) |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Ideal for remote cabins, sheds, or small homes requiring independent power. |
| Marine & Boating | Suitable for charging 12V batteries on yachts, narrowboats, and other marine vessels. |
| Recreational Vehicles (RVs) | Powers appliances and charges leisure batteries in motorhomes, caravans, and campers. |
| Backup Power | Can be integrated into small backup power solutions for essential loads. |
Built-In Protection Functions
The Victron BlueSolar panel incorporates several features to ensure safe and reliable operation. This includes a sealed, waterproof, multi-functional junction box for high safety levels • High-performance bypass diodes to minimise power loss due to shading • An advanced EVA (Ethylene Vinyl Acetate) encapsulation system with a triple-layer back sheet, meeting stringent safety requirements for high-voltage operation.
Common Questions
What type of charge controller do I need for this 12V solar panel?
For optimal performance and battery health, a suitable MPPT (Maximum Power Point Tracking) solar charge controller is recommended. While PWM controllers can be used, an MPPT controller will extract more power from the panel, especially in varying light conditions. Ensure the controller is rated for 12V systems and can handle the panel's current (Imp 9.03A, Isc 9.89A).
Can this panel be used in a 24V system?
Yes, two of these 12V panels can be wired in series to create a 24V array, which can then be connected to a 24V compatible MPPT charge controller. For larger 48V systems, four panels in series would be appropriate. Always ensure your charge controller and battery bank are matched to the system voltage.
What kind of mounting system is required?
The sturdy anodised aluminium frame of the Victron BlueSolar panel allows for easy mounting using a variety of standard solar panel mounting systems, such as roof mounts, pole mounts, or tilt brackets. Ensure the chosen system is appropriate for the panel's dimensions and weight, and the installation surface.
What is the expected lifespan and warranty?
Victron Energy provides a 25-year limited warranty on power output and performance, alongside a 5-year limited warranty on materials and workmanship for this BlueSolar panel. This reflects the high quality and expected long operational life of the product.
Installation Notes
- Always consult a qualified installer or electrician for safe and compliant installation, especially for grid-tied or complex off-grid systems.
- Ensure the mounting structure is robust enough to support the panel's weight and withstand local wind and snow loads.
- Proper cable sizing and fusing are crucial to prevent overheating and ensure system safety.
- Connect the panel to a suitable solar charge controller before connecting to a battery bank.
- Follow all local electrical codes and regulations for solar PV installations in the UK.
Before You Buy
- Verify the panel's dimensions (1485 x 668 x 30 mm) to ensure it fits your intended installation space.
- Confirm compatibility with your existing or planned solar charge controller and battery bank (12V nominal).
- Consider your daily energy requirements to determine if a single 175W panel is sufficient or if multiple panels are needed.
- Review the manufacturer's datasheet and installation manual for detailed technical information and safety guidelines.
All specifications are based on Standard Test Conditions (STC) and may vary. Always refer to the official Victron Energy documentation for the most accurate and up-to-date information. Product warranty details are as per manufacturer's terms.
