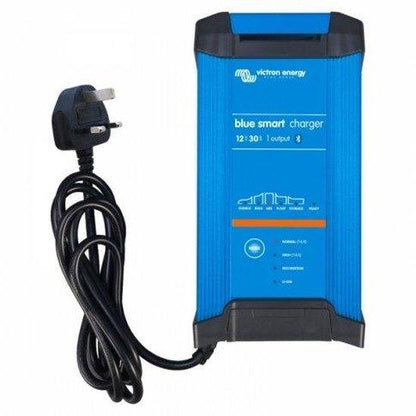

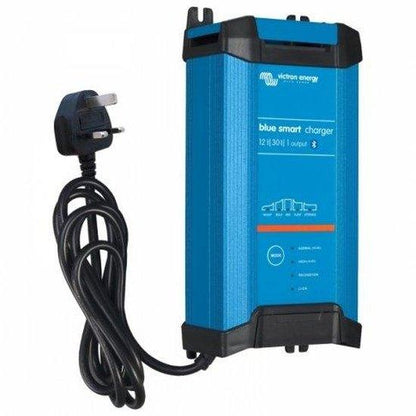

Victron 30A 12V Blue Smart IP22 Mains Battery Charger
Adaptive 6-Stage Charging | Bluetooth Connectivity | IP22 Rated
The Victron 30A 12V Blue Smart IP22 Mains Battery Charger (SKU: VBC1230) offers a professional and efficient solution for charging 12V batteries from a 220-240V AC mains power source. Engineered for optimal battery health and longevity, this charger features an adaptive 6-stage charging algorithm, ensuring your batteries receive the precise charge they need.
Designed for unattended charging, it incorporates robust safety features and boasts an impressive efficiency of up to 94%, significantly reducing heat generation and power consumption. Its integrated Bluetooth connectivity allows for convenient remote monitoring and configuration via the free VictronConnect App on your mobile device or PC.
UK Ready: Supplied with a 1.5m mains AC cable and a UK 3-pin plug for immediate use.
Key Features
| ▶ Adaptive 6-Stage Charging — Optimises the charging process for various battery types, extending battery life. |
| ▶ Bluetooth Smart Connectivity — Monitor and configure settings remotely via the VictronConnect App. |
| ▶ High Efficiency (up to 94%) — Reduces power consumption and heat generation for cooler operation. |
| ▶ Power Supply Function — Can provide direct DC power to a 12V load, even without a battery. |
| ▶ Dead Battery Recovery — Initiates charging even for deeply discharged batteries (down to 0V). |
| ▶ Silent Night/Low Mode — Reduces output current and fan noise for quiet operation. |
| ▶ Storage Mode — Minimises gassing and corrosion, preventing premature battery ageing during inactivity. |
| ▶ Temperature Compensation — Automatically adjusts charge voltage for lead-acid batteries based on ambient temperature. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range (AC) | 180V - 265V |
| Output Voltage (DC) | 12V |
| Output Current (Normal Mode) | 30A |
| Output Current (Night/Low Mode) | 15A |
| Efficiency | Up to 94% |
| Standby Power Consumption | 0.5W |
| Minimum Battery Voltage | Starts charging at 0V |
| Operating Temperature Range | -20°C to 50°C |
| IP Rating | IP22 (Indoor Use) |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Weight | 1.3 kg |
Charging & Battery Modes
The Victron Blue Smart IP22 charger employs an advanced adaptive 6-stage charging algorithm to ensure optimal battery care. This includes: Test, Bulk, Absorption, Recondition, Float, and Storage stages. For Li-ion (LiFePO4) batteries, a dedicated Bulk – Absorption – Float algorithm is used.
| Mode/Feature | Description |
|---|---|
| Adaptive Charging | Automatically optimises the charging process based on battery usage, reducing absorption time when possible to minimise corrosion. |
| Recondition Stage | An optional stage for lead-acid batteries to help recover deeply discharged or sulfated batteries. Not for Li-ion. |
| Storage Mode | Reduces float voltage after 24 hours of inactivity to minimise gassing and corrosion, with a weekly absorption refresh. |
| Silent Night/Low Mode | Reduces output current by 50% and disables the cooling fan for noiseless operation, ideal for quiet environments. |
| VE.Smart Networking | Allows wireless communication with other Victron Smart products for synchronised charging and enhanced data accuracy. |
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Efficiently charges leisure batteries, ensuring power for onboard appliances during hook-up. |
| Boats & Marine Vessels | Maintains marine service batteries, suitable for various battery chemistries. |
| Workshops & Garages | Ideal for charging and maintaining batteries in classic cars, motorbikes, and other vehicles. |
| Off-Grid & Backup Systems | Provides reliable AC charging for 12V battery banks in small off-grid setups or as a backup charger. |
Built-In Protection Functions
The Victron Blue Smart IP22 charger is equipped with multiple safety features for reliable, unattended operation. These include protection against DC short circuits • overheating (output current reduces as temperature increases up to 50°C) • overcharging • and reverse polarity. Its IP22 rating ensures protection against solid objects over 12.5mm and vertically falling water drops, making it suitable for indoor use.
Common Questions
What battery types can this charger handle?
The Victron Blue Smart IP22 charger is compatible with a wide range of 12V batteries, including Lead Acid (AGM, Gel, Wet cell) and Lithium (LiFePO4) batteries. It offers specific charging modes to optimise performance for each type.
How does the Bluetooth connectivity work?
The charger features built-in Bluetooth Smart, allowing you to connect wirelessly to the VictronConnect App on your smartphone, tablet, or PC. This enables you to monitor real-time battery voltage, charge current, and charging cycle status, as well as configure settings and update firmware.
Can I leave the charger connected to my battery indefinitely?
Yes, the Victron Blue Smart IP22 charger is designed for safe, unattended long-term connection. Its adaptive charging algorithm and Storage Mode prevent overcharging, minimise gassing, and reduce corrosion, preserving battery health during extended periods of inactivity.
What is VE.Smart Networking?
VE.Smart Networking is a wireless device-to-device communication network using Bluetooth Smart, allowing multiple Victron products to operate in unison. For chargers, this can enable synchronised charging, where multiple chargers work together as one large charger, sharing data for optimal performance.
Installation Notes
- Mount the charger vertically on a non-flammable surface, ensuring at least 10cm clearance for ventilation.
- Do not install or operate the charger directly on top of or in a sealed compartment with the battery.
- Connect DC power cabling to the battery terminals, ensuring correct polarity and secure connections.
- The unit is supplied with a UK 3-pin plug for mains AC connection.
- Refer to the comprehensive user manual for detailed wiring instructions and operational guidance.
Before You Buy
- Battery Voltage: Confirm your battery or battery bank is 12V.
- Battery Capacity: Ensure the charger's 30A output is suitable for your battery's capacity (e.g., minimum 60Ah for normal mode).
- Battery Type: Verify your battery chemistry (Lead Acid, AGM, Gel, LiFePO4) is supported and select the appropriate charging mode.
- Environment: The IP22 rating indicates suitability for indoor use, protected from dripping water.
- Connectivity: Ensure you have a compatible Bluetooth-enabled device for app control, or a VE.Direct to USB cable for PC connection (sold separately).
Always verify product specifications and compatibility with your specific system requirements before purchase. This Victron charger is covered by a 5-year manufacturer warranty.
