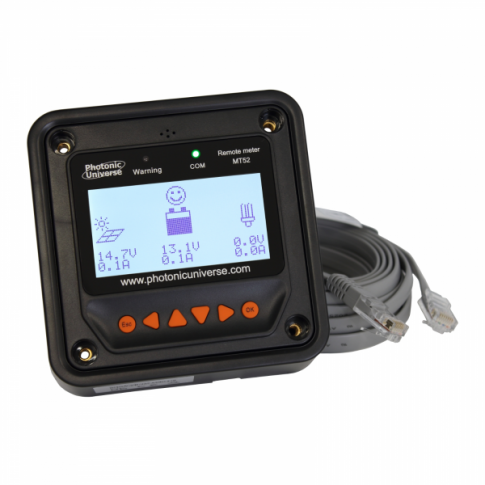

EPEVER MT52 Remote Meter
Advanced LCD Monitoring for EPEVER Solar Systems
The EPEVER MT52 is a new-generation remote meter designed specifically for EPEVER solar charge controllers. This high-precision unit provides a transparent window into your solar power system, allowing you to monitor real-time data including battery voltage, charging current, and cumulative energy production. Beyond simple monitoring, the MT52 enables full parameter programming, making it an essential tool for optimizing battery life and system efficiency.
Key Features
- ✔ Real-Time Monitoring: Tracks voltage, current, SOC, and kWh.
- ✔ Programming: Configure battery types (Gel, Sealed, Flooded, User).
- ✔ Plug & Play: Powered directly by the controller via RJ45 cable.
- ✔ Failure Alarms: Instant acoustic and visual fault notifications.
Technical Specs
| Model: | MT52 |
| Self-consumption: | < 23mA (ON), < 15mA (OFF) |
| Faceplate Size: | 98 x 98 mm |
| Frame Size: | 114 x 114 mm |
| Comm. Port: | RJ45 (RS485) |
| Cable Length: | 2m (Standard) |
Compatibility / Fitment Guide
| Series Type | Model Compatibility | Notes |
|---|---|---|
| MPPT Controllers | Tracer-AN, Tracer-BN, TRIRON, XTRA-N | Full data/programming support |
| PWM Controllers | LS-B, LS-BP, VS-BN | Requires RJ45/RS485 port |
Installation Guide
Installation is straightforward: Connect the provided 2-meter RJ45 cable from the communication port of your EPEVER controller to the back of the MT52 meter. The meter will automatically identify the controller model and display relevant data. No external power supply is required as the unit draws power directly from the controller.
Questions & Answers
Is this a genuine original part?
Yes, this is an authentic EPEVER accessory designed for seamless integration with their proprietary communication protocols.
How do I know if it is compatible?
If your EPEVER controller has an RJ45 port labeled "RS485" or "Meter," this unit is compatible. It supports the Tracer-AN, BN, and XTRA series out of the box.
Can I use this to set up Lithium (LiFePO4) batteries?
Yes, the MT52 allows you to program the "User" battery type, which is necessary for setting custom voltage parameters required for Lithium-based systems.
Note: Please ensure your controller firmware is up to date to access all programming features of the MT52. Domain: Solarika.co.uk
