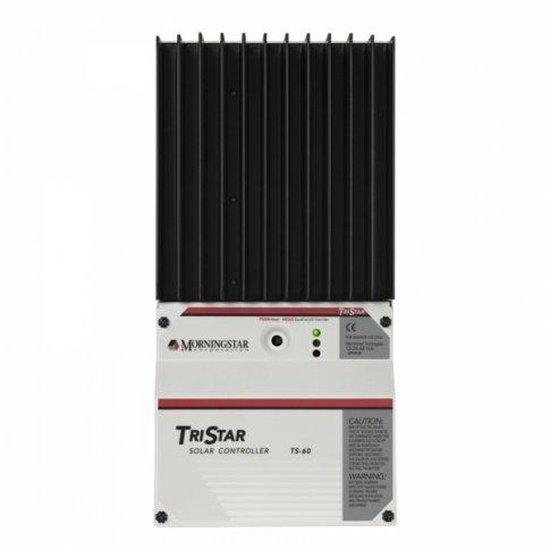

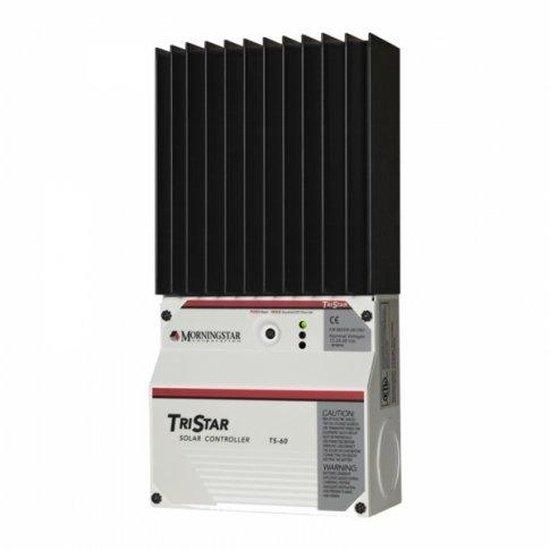

Morningstar TriStar 60A PWM Charge Controller
Robust 12V / 24V / 48V System Control | Solar, Wind, Hydroelectric Ready
The Morningstar TriStar 60A PWM Charge Controller (SKU: TS-60) is a technically advanced solution for managing renewable energy systems. Designed for 12V, 24V, or 48V battery banks, this high-quality controller ensures reliable solar battery charging, effective load control, or precise diversion regulation for solar, wind, or hydroelectric installations.
Engineered to protect batteries from over-charging and deep discharge, the TriStar 60A extends battery capacity and life while maximising energy production. Its robust design and comprehensive protection functions make it a dependable choice for various off-grid and remote power applications.
SYSTEM VOLTAGE: Automatically detects 12V, 24V, or 48V nominal battery voltage.
Key Features
| ▶ High Reliability — Features a large heat sink for high operating temperatures. |
| ▶ Parallel Connectivity — Allows multiple controllers for larger arrays or hybrid systems. |
| ▶ Four-Stage PWM Charging — Series pulse charging designed to increase battery life. |
| ▶ Communication Capabilities — Connects to a PC for custom settings, data logging, and remote monitoring. |
| ▶ Ease of Use — Simple installation with factory pre-sets, automatic operation, and fault recovery. |
| ▶ Versatile Application — Suitable for solar, wind, or hydroelectric renewable installations. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 12V / 24V / 48V |
| Rated Current (Charge, Load, Diversion) | 60A |
| Solar Input Voltage (Max) | Up to 125V |
| Minimum Operating Voltage | 9V |
| Self-Consumption | < 20mA |
| Working Temperature | -40°C to +45°C |
| Humidity | 100% non-condensing |
| Enclosure Rating | IP10 (Indoor) |
| Dimensions (L x W x D) | 260.4 x 127 x 71 mm |
| Weight | 1.6 kg |
Charging & Battery Modes
The Morningstar TriStar 60A PWM controller offers flexible charging and regulation modes to suit various system requirements and battery types.
| Feature | Description |
|---|---|
| Battery Compatibility | Compatible with Sealed, Gel, and Flooded battery types. |
| Charging Modes | Provides reliable solar battery charging with advanced 4-stage series PWM pulse charging. |
| Load Control | Integrated load control functionality for managing connected DC loads. |
| Diversion Regulation | Can be configured for diversion regulation, ideal for wind or hydroelectric systems. |
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Efficiently manages solar or wind power for leisure vehicles, ensuring battery longevity. |
| Boats & Yachts | Ideal for marine environments, providing stable power management for onboard systems. |
| Off-Grid Cabins & Sheds | Reliable power control for remote properties relying on solar, wind, or hydro. |
| Telecommunications & Remote Monitoring | Ensures continuous power for critical remote equipment with its robust design and communication features. |
Built-In Protection Functions
The Morningstar TriStar 60A PWM controller is equipped with a comprehensive range of protection features to ensure system safety and longevity: Overload Protection • Short Circuit Protection • High Voltage Protection • Reverse Polarity Protection • High Temperature Protection • Lightning and Transient Surge Protection • Reverse Current at Night Protection.
Common Questions
What types of batteries are compatible with this controller?
The Morningstar TriStar 60A PWM controller is compatible with Sealed, Gel, and Flooded lead-acid battery types, offering versatility for various battery storage solutions.
Can this controller be used with both solar panels and wind turbines?
Yes, the TriStar 60A is designed for multi-source renewable installations, supporting solar, wind, or hydroelectric inputs. Its diversion regulation capability is particularly useful for managing excess power from wind or hydro generators.
What does 'PWM' mean in a charge controller?
PWM stands for Pulse Width Modulation. A PWM charge controller regulates the charging voltage and current from your solar array to the battery by rapidly switching the solar array's connection on and off. This method helps maintain battery health and prolong its lifespan by preventing overcharging.
Can I monitor the system remotely?
Yes, the TriStar 60A features communication capabilities, allowing connection to a personal computer for custom settings, data logging, and remote monitoring. An optional remote meter (sold separately) can also be connected for detailed parameter viewing.
Installation Notes
- Ensure the controller is installed in a dry, well-ventilated indoor location, consistent with its IP10 rating.
- Always connect the battery to the controller first, then the solar/wind input, and finally any DC loads.
- Verify correct polarity for all connections to prevent damage to the controller and system components.
- Refer to the manufacturer's instruction manual for detailed wiring diagrams and safety guidelines.
- Consider professional installation for complex systems or if you are unsure about wiring procedures.
Before You Buy
- Confirm your system's nominal voltage (12V, 24V, or 48V) matches the controller's capabilities.
- Ensure the total current from your solar array, wind turbine, or hydro generator does not exceed the controller's 60A rating.
- Check the maximum open-circuit voltage (Voc) of your solar array to ensure it is below the controller's 125V input limit.
- Verify the type of batteries you intend to use (Sealed, Gel, or Flooded) are supported.
- Consider if remote monitoring or data logging features are essential for your application.
Please verify all specifications and compatibility requirements with your system design before purchase. This product is covered by a 5-year manufacturer warranty.
