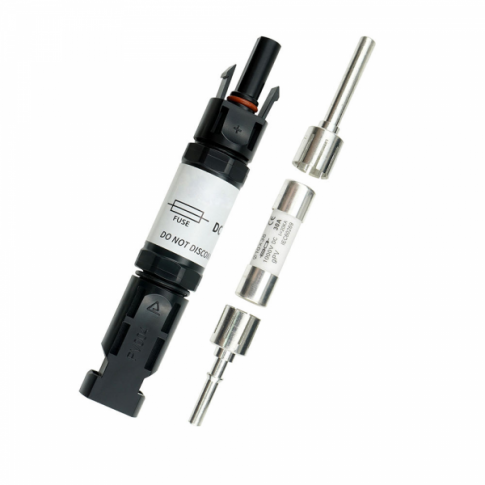

Inline MC4 fuse holder 1000V with 30A fuse
Inline MC4 fuse holder 1000V with 30A fuse
SKU:MC4FUSE30
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Inline MC4 Fuse Holder
1000V DC ย |ย 30A Fuse ย |ย MC4 Compatible
The Photonic Universe Inline MC4 Fuse Holder with a pre-installed 30A fuse offers essential over-current protection for your solar panel circuits. Designed for seamless integration, this accessory plugs directly in-line with your solar panel cables, safeguarding valuable components such as solar panels, wiring, and charge controllers from potential damage caused by excessive current.
Suitable for a wide array of DC solar applications, this fuse holder interrupts the circuit if current levels exceed the 30A fuse rating, thereby maintaining the safety and operational integrity of your solar power system. Its robust, waterproof design ensures reliable performance in outdoor environments.
CIRCUIT PROTECTION: Provides vital over-current and short-circuit protection for DC solar PV systems.
Key Features
| โถย In-line MC4 Compatibility โ Easily integrates into existing solar panel cable runs. |
| โถย 30A Fuse Included โ Delivers immediate and effective over-current protection. |
| โถย 1000V DC Rated โ Suitable for high-voltage solar photovoltaic (PV) systems. |
| โถย Waterproof IP67 Design โ Ensures durability and reliable operation in outdoor conditions. |
| โถย Replaceable Fuse โ Allows for quick and cost-effective maintenance without replacing the entire unit. |
| โถย Safeguards System Components โ Protects solar panels, wiring, and charge controllers from damage. |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Fuse Type | Inline, Replaceable |
| Connector Type | MC4 (Male & Female) |
| Waterproof Rating | IP67 |
| Application | DC Solar PV Circuits |
Circuit Protection Guidance
| Aspect | Detail |
|---|---|
| Primary Function | Provides essential over-current and short-circuit protection for solar PV systems. |
| Integration | Designed for in-line installation within the positive DC solar cable run. |
| Compatibility | Features standard MC4 male and female connectors for broad compatibility. |
| Maintenance | The fuse is easily accessible and replaceable, simplifying system upkeep. |
Typical Applications
| Application | Description |
|---|---|
| Residential Solar PV Systems | Protecting solar panels and associated wiring from over-current events. |
| Off-Grid Solar Setups | Adding a layer of safety for charge controllers and battery banks in standalone systems. |
| Caravan & Motorhome Solar | Essential circuit protection for mobile solar arrays and leisure vehicle installations. |
| Small Commercial Installations | Enhancing safety and reliability in various commercial DC solar circuits. |
Built-In Protection Functions
The Photonic Universe Inline MC4 Fuse Holder is engineered with robust protection features to ensure the safety and longevity of your solar PV system. It provides reliable over-current protection by housing a sacrificial fuse that breaks the circuit when current exceeds safe limits, preventing damage to connected equipment. ย โขย Its IP67 waterproof rating ensures protection against dust and water ingress, making it highly suitable for continuous outdoor exposure in various weather conditions.
Common Questions
What is the primary purpose of an MC4 fuse holder?
An MC4 fuse holder provides essential over-current protection for DC solar circuits. It houses a fuse that blows and breaks the circuit if the current exceeds a safe level, preventing damage to solar panels, wiring, and other components.
How is this fuse holder installed?
It is designed for in-line installation. Simply plug the male MC4 connector into a female MC4 cable from your solar panel, and connect the female MC4 socket to the next component in your DC circuit, such as a charge controller.
Can the fuse inside be replaced?
Yes, the fuse holder is designed for easy maintenance. The unit can be opened to replace the 30A fuse if it blows, allowing for quick and cost-effective repairs without needing to replace the entire holder.
Is this fuse holder suitable for outdoor use?
Absolutely. This MC4 fuse holder features an IP67 waterproof rating, making it fully suitable for continuous outdoor exposure and ensuring reliable performance in various weather conditions.
Installation Notes
- Always ensure that the solar system's maximum voltage and current do not exceed the fuse holder's ratings (1000V DC, 30A).
- Connect the fuse holder in-line with the positive DC cable between your solar panels and other system components, such as a charge controller.
- For safety, always disconnect all power sources from your solar array before attempting any installation or fuse replacement.
- Verify correct polarity when connecting MC4 connectors to ensure proper circuit operation and safety.
Before You Buy
- Confirm the maximum operating voltage and current of your solar PV system to ensure compatibility with the 1000V 30A rating.
- Check that your existing solar cables and components utilise standard MC4 connectors for seamless integration.
- Ensure the 30A fuse rating is appropriate for the specific circuit you intend to protect; consult your system's design or an electrician if unsure.
- While installation is straightforward, consider consulting a qualified electrician or solar installer for complex system configurations.
Always verify product specifications and compatibility with your specific solar PV system before purchase and installation. All technical data is subject to manufacturer specifications.
