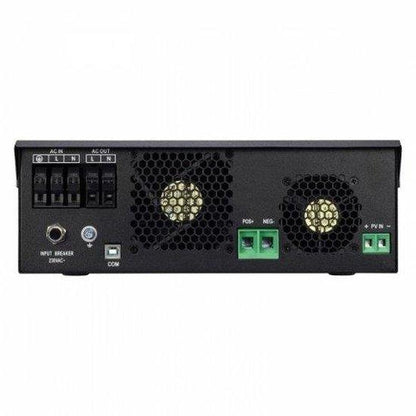

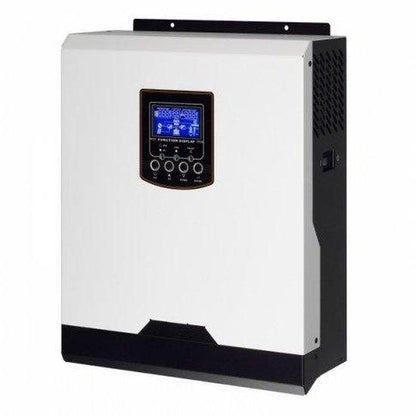

Iconica 3000W 24V Hybrid Pure Sine Inverter 50A PWM Solar Charger IC3-BM3000-24
Iconica 3000W 24V Hybrid Pure Sine Inverter 50A PWM Solar Charger IC3-BM3000-24
SKU:IC-BP3000-24
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Iconica 3000W 24V Hybrid Pure Sine Inverter
IC3-BM3000-24 | 50A PWM Solar Charger | 25A Mains Charger
The Iconica 3000W 24V Hybrid Pure Sine Inverter (model IC3-BM3000-24) is a versatile all-in-one power solution designed for reliable off-grid and backup energy systems. This unit intelligently combines a powerful 3000W pure sine wave inverter, a 50A PWM solar charge controller, and a 25A smart mains battery charger into a single, compact device.
Ideal for UK homeowners, off-grid users, and small businesses, it provides stable 230V AC power for a wide range of appliances, from sensitive electronics to power tools. Its hybrid capability allows for seamless power management from solar panels, batteries, and mains electricity or a generator.
KEY FUNCTIONALITY: Integrates a 3000W inverter, 50A PWM solar charger, and 25A AC battery charger for comprehensive power management.
Key Features
| ▶ 3000W Pure Sine Wave Output — Provides clean, stable 230V AC power for sensitive electronics. |
| ▶ Integrated 50A PWM Solar Charger — Efficiently regulates power from solar panels to your 24V battery bank. |
| ▶ Built-in 25A Smart Mains Charger — Ensures safe and multi-stage charging from a grid connection or generator. |
| ▶ UPS Functionality — Offers uninterrupted power supply with fast transfer time for critical loads. |
| ▶ Customisable Priority Settings — Configure AC/solar input and charging source priorities via LCD. |
| ▶ Informative LCD Display — Monitor system status, input/output voltages, and charging data in real-time. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 24V DC |
| Continuous Power Output | 3000W / 3000VA |
| Surge Peak Power | 6000VA |
| Max Solar Input Power | 1200W |
| Max Solar VOC | 80V DC |
| Solar Charge Current | 50A PWM |
| AC Charger Current | 25A |
| Peak Efficiency | 93% |
| Output Voltage | 230V AC |
| Operating Temperature | -10°C to 50°C |
Charging & Output Modes
| Mode | Description |
|---|---|
| Solar Priority | Utilises solar power as the primary source for loads and battery charging. |
| Utility Priority | Prioritises mains/generator power for loads, with solar as a backup or supplementary source. |
| Battery Priority | Draws power from batteries first, switching to other sources when battery voltage is low. |
| UPS Function | Provides seamless backup power during grid outages, ensuring continuous operation of connected appliances. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable primary power where mains electricity is unavailable. |
| Marine & Mobile Systems | Ideal for narrowboats, yachts, and motorhomes, offering flexible charging and AC output. |
| Backup Power Systems | Ensures essential appliances remain powered during grid failures or unstable mains supply. |
| Remote Workshops & Sheds | Powers tools and lighting in locations without easy access to grid power. |
Built-In Protection Functions
The Iconica 3000W hybrid inverter is equipped with multiple safety features to ensure reliable and safe operation. These include protection against battery overcharge & over-discharge, solar panel reverse current, output overload, short circuit, and over-temperature. An intelligent cooling system with predictive fan logic helps maintain optimal operating temperatures, and an auto-restart function ensures the system recovers automatically after an overload or overheating event.
Common Questions
What type of batteries is this inverter compatible with?
This hybrid inverter is suitable for 24V flooded, sealed GEL, and AGM lead-acid battery banks, featuring pre-defined charging programs. It also includes a 'User-Defined' setting, allowing for custom configuration of charging parameters to potentially support other lead-acid battery types or LiFePO4 batteries with a compatible Battery Management System (BMS).
How do I ensure my solar panels are compatible?
This inverter features a 50A PWM solar charge controller with a maximum Open Circuit Voltage (VOC) of 80V DC and a maximum solar input power of 1200W. Ensure your total solar array voltage does not exceed 80V DC and the total power does not exceed 1200W. For optimal PWM charging, your solar panel array's voltage should be slightly higher than your 24V battery bank's voltage.
What does 'Pure Sine Wave' mean for my appliances?
A pure sine wave output replicates the smooth, consistent waveform of mains electricity. This ensures that all types of electronic devices, especially sensitive electronics, motor-driven appliances (like fridges or pumps), and power tools, operate efficiently and without damage. It avoids the potential issues associated with modified sine wave inverters, such as buzzing, overheating, or malfunction.
Can this inverter be used without a battery?
While this model is designed for battery-based systems, some Iconica hybrid inverters offer a 'no battery required' feature for direct solar-to-load operation. For the IC3-BM3000-24, a battery bank is typically required for its full hybrid functionality, including energy storage and UPS capabilities. Always refer to the user manual for specific operational modes.
Installation Notes
- Installation should be performed by a qualified electrician or experienced solar installer.
- Ensure adequate ventilation around the unit to prevent overheating.
- Mount the inverter in a dry, protected location away from direct sunlight and moisture.
- Verify all wiring connections are secure and correctly polarised according to the user manual.
- Proper grounding is essential for safety.
Before You Buy
- Confirm your system requires a 24V DC input and 230V AC output.
- Calculate your total power consumption to ensure the 3000W continuous output is sufficient.
- Check your solar panel array's total power (max 1200W) and Open Circuit Voltage (max 80V DC) for compatibility with the 50A PWM controller.
- Verify your battery bank type and capacity are suitable for a 25A AC charger and 50A solar charger.
- Consult the detailed user manual for comprehensive technical data and installation guidelines.
Please verify all specifications and compatibility requirements for your specific application before purchase. Product details are based on manufacturer specifications for model IC3-BM3000-24. For further assistance, visit Solarika.co.uk.
