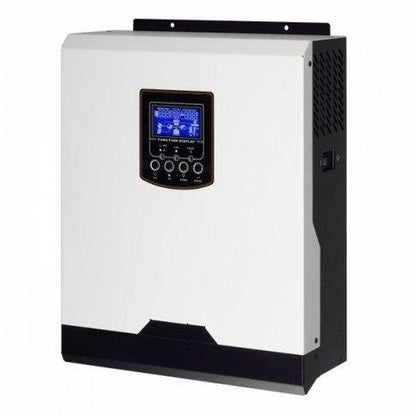

Iconica 3000W 24V hybrid pure sine wave inverter with 40A MPPT solar controller and 25A mains charger
Iconica 3000W 24V hybrid pure sine wave inverter with 40A MPPT solar controller and 25A mains charger
SKU:IC-BM3000-24
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Iconica 3000W 24V Hybrid Pure Sine Wave Inverter
Integrated 40A MPPT Solar Controller | 25A Mains Charger | Model: IC-BM3000-24
The Iconica 3000W 24V Hybrid Pure Sine Wave Inverter is a versatile power solution, combining a 3000W pure sine wave inverter, a 40A MPPT solar charge controller, and a 25A smart battery charger into a single unit. Designed for off-grid applications, it efficiently converts 24V DC battery power into 230V AC mains electricity, suitable for a wide range of household appliances.
This hybrid inverter can draw power from solar panels, mains electricity (or a generator), and a battery, either individually or in combination. Its Uninterrupted Power Supply (UPS) function makes it an ideal choice for locations with unreliable or intermittent power, providing seamless power transfer during outages.
KEY FUNCTION: Combines 3000W Inverter, 40A MPPT Solar Charger, and 25A Mains Charger in one unit.
Key Features
| ▶ 3000W Pure Sine Wave Output — Powers sensitive electronics and motor-driven appliances safely. |
| ▶ Integrated 40A MPPT Solar Controller — Maximises power harvest from solar panels with up to 98% efficiency. |
| ▶ 25A Smart Mains Battery Charger — Enables safe, multi-stage charging from grid or generator. |
| ▶ Uninterrupted Power Supply (UPS) — Provides automatic switchover for critical loads during power cuts. |
| ▶ Customisable Settings — Adjust AC input range, battery type, charging current, and more via LCD. |
| ▶ Output & Charging Priority — User-selectable preferences for power source and battery charging. |
| ▶ PC Monitoring Software — View system data and export logs for detailed analysis. |
| ▶ Intelligent Cooling & Auto-Restart — Ensures optimal operation and protects against overload/overheating. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Battery Voltage | 24V |
| Continuous Power Output | 3000W / 3000VA |
| Surge Power (Peak) | 6000VA |
| Output Voltage | 230V AC |
| Output Frequency | 50Hz/60Hz |
| Output Waveform | Pure Sine Wave |
| Max Solar Input Power | 1000W |
| Max Open Circuit Solar Voltage | 102V |
| MPPT Operating Voltage Range | 30V – 80V |
| Max Solar Charging Current | 40A |
| Max Mains AC Charging Current | 25A |
| Max Combined Charging Current | 60A |
| Peak Efficiency | 93% |
| Operating Temperature | -10°C to 50°C |
| Dimensions (L x W x H) | 32 x 22.5 x 8.8 cm |
| Weight | 7 kg |
Charging & Output Modes
The Iconica hybrid inverter offers advanced control over both battery charging and AC output source selection, allowing users to optimise their energy usage based on availability and cost.
| Mode | Description |
|---|---|
| Output Source Priority | Allows selection of the preferred AC load output source: Solar, Battery, or Mains/Generator. This enables users to prioritise renewable energy or minimise grid dependence. |
| Battery Charging Priority | Configurable options for battery charging: Solar only, Solar and Mains combined, or Mains only. This flexibility helps manage battery health and energy costs. |
| Battery Compatibility | Compatible with 24V flooded, sealed GEL/AGM lead-acid batteries with pre-defined programs. Supports user-defined settings for other lead-acid battery types. |
| Monitoring & Control | Features an illuminated LCD screen for real-time data display and easy adjustment of parameters. PC software and optional Wi-Fi/3G kits enable remote monitoring. |
Typical Applications
The Iconica 3000W 24V Hybrid Inverter is engineered for a variety of off-grid and backup power scenarios, offering reliable electricity where traditional mains power is limited or unavailable.
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable power for remote properties, holiday homes, huts, and cabins without grid access. |
| Mobile Installations | Ideal for narrowboats, yachts, and other mobile setups requiring stable AC power from a 24V battery bank. |
| Backup Power Systems | Serves as a reliable backup during mains power cuts, ensuring essential appliances remain operational. |
| Energy Cost Reduction | Allows users to prioritise solar power, reducing reliance on grid electricity and potentially lowering bills. |
Built-In Protection Functions
The Iconica 3000W 24V hybrid inverter incorporates multiple safety features to protect both the unit and connected systems. These include protection against battery overcharge • overheating • reverse current from solar panels • overload conditions • and short circuits. The intelligent cooling design and auto-restart function further enhance operational safety and longevity.
Common Questions
What type of appliances can this inverter power?
With a 3000W continuous pure sine wave output and 6000VA surge capability, it can power most standard household appliances, including sensitive electronics like TVs and laptops, as well as appliances with electric motors such as fridges or pumps, within its power limits.
What battery types are compatible with this inverter?
The inverter is compatible with 24V flooded and sealed GEL/AGM lead-acid batteries, offering pre-defined charging programs. It also supports user-defined settings for other lead-acid battery types, allowing for customisation.
Can I monitor the system remotely?
Yes, the inverter comes with a PC connection cable and software for local monitoring. Additionally, it can send data to an online user portal via optional Wi-Fi or 3G connection kits, enabling remote system monitoring and status updates.
Is this inverter suitable for silent environments?
The inverter features an inbuilt fan for cooling, which emits some operational noise. While designed with intelligent cooling, it may not be suitable for installations in locations requiring absolute silence, such as bedrooms at night.
Installation Notes
- Installation should be performed by a qualified professional to ensure safety and compliance with local regulations.
- Ensure adequate ventilation around the inverter to prevent overheating, especially given its fan-based cooling.
- Connect to a 24V battery bank of appropriate capacity for your energy needs.
- Follow the detailed wiring and operational instructions provided in the user manual.
- Ensure all DC and AC connections are secure and correctly polarised.
Before You Buy
- Verify your total power requirements (in Watts) for all appliances to be run simultaneously.
- Confirm your battery bank voltage is 24V.
- Consider your solar panel array's maximum power (up to 1000W) and open circuit voltage (up to 102V) for compatibility with the MPPT controller.
- Assess the installation location for suitable ventilation and acceptable noise levels.
- Review the user manual for detailed technical specifications and installation guidelines.
Always verify product specifications and compatibility with your existing system components before purchase. This product comes with a 1-year manufacturer warranty.
