Current Transformers for SMA products

SKU:CT-100/5-SOLID

£35.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Name 100/5A Solid Class 1, 21mm dia cable transit hole 100/5A Split CT Class 1, 24mm dia cable transit hole, 1m cab 125/5ASplit CT Class 1, 24mm dia cable transit hole,1m cable 250/5A Split CT Class 1, 24mm dia cable transit hole,1m cab 300/5A Solid CTClass 1, 27mm dia cable transit hole 32.5 lug 300/5A Split CT Class 1, 36mm dia cable transit hole,1m cab 600/5A Split CT Class 1, 36mm dia cable transit hole, 1m cab 1000/5A Split Busbar CT, 50x80mm aperture 1600/5A Split Busbar CT, 80x120mm hole, M5 screws

Quantity

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.

For use with SMA Energy meter and SMA Home Manager to measure AC primary current and produce a proportional secondary current.

Split core version is designed for installation without removing cables. Single phase. 100A primary ; 5A secondary.

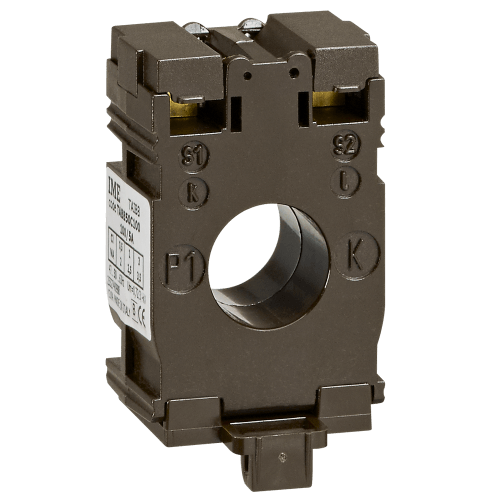

Solid Core Features

21mm Diameter able aperture
Accuracy class :- cl.0,5 - 1 - 3
Rated burden :- 1...7.5VA
Moulded terminal cover
Din rail mounting clip supplied

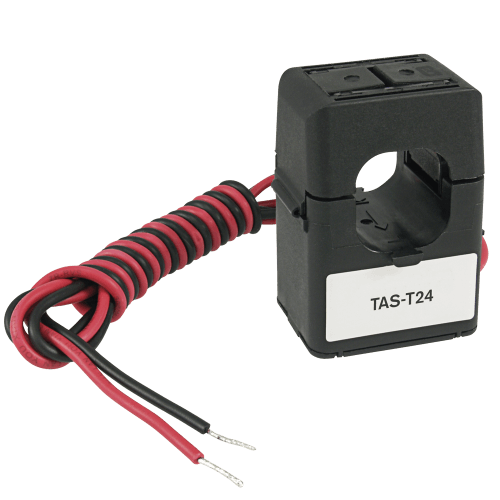

Split-Core Features

Snap together housing
Cable aperture 24mm
1 meter flying lead.
Class 1 Accuracy

Safety Note: These must never be operated open-circuit (secondary coil wires disconnected) once installed, whilst on a current-carrying conductor, as dangerously high voltages may occur under these circumstances.
