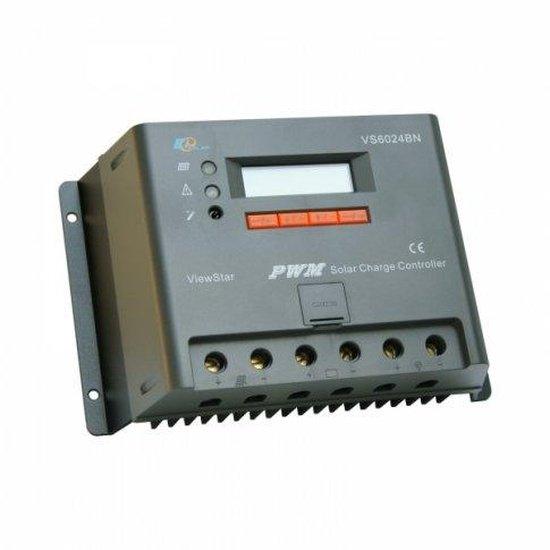

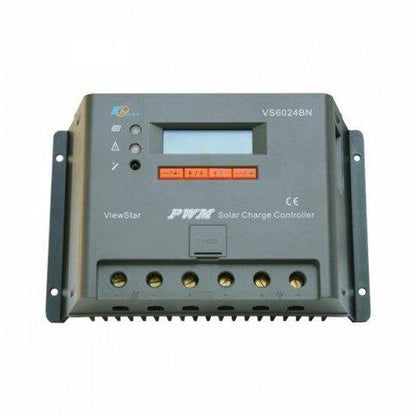

60A solar panel charge controller / regulator with LCD display and advanced programmable features for 12/24V battery systems
60A solar panel charge controller / regulator with LCD display and advanced programmable features for 12/24V battery systems
SKU:VS6024BN
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
60A Solar Panel Charge Controller / Regulator
Model: VS6024BN | 12V/24V Auto | Advanced PWM Technology
The Photonic Universe VS6024BN 60A Solar Panel Charge Controller is an advanced regulator designed for optimising and protecting 12V or 24V battery systems. This unit provides comprehensive control over your solar charging process, ensuring efficient power management and extended battery lifespan. It is engineered for both solar enthusiasts and professionals seeking precise, reliable, and customisable energy management for small to medium-sized solar installations.
Featuring an intuitive LCD display and advanced programmable functions, the VS6024BN allows users to fine-tune charging parameters and manage connected loads, moving beyond the limitations of basic charge controllers.
SYSTEM COMPATIBILITY: Automatically detects 12V or 24V battery systems and supports Gel, Sealed, and Flooded battery types.
Key Features
| ▶ Advanced Monitoring & Control — Offers comprehensive monitoring and programmable charging parameters. |
| ▶ PWM Charging Optimisation — Utilises Pulse Width Modulation to enhance battery charge acceptance and extend lifespan. |
| ▶ Robust Electronic Protection — Integrated safeguards against common electrical faults. |
| ▶ Broad System Compatibility — Supports solar arrays up to 900W (12V) or 1.8kW (24V) with up to 48V input. |
| ▶ Intuitive LCD Display — User-friendly interface for real-time data and setting adjustments. |
| ▶ Smart Energy Statistics — Built-in counter for daily and monthly charge accumulation. |
| ▶ Programmable Load Modes — Manage connected DC loads with timer functions. |
| ▶ Remote Connectivity Options — Supports remote meter, Wi-Fi module, or PC connection for advanced control. |
| ▶ External Temperature Sensing — Optimises charging with accurate temperature compensation. |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current | 60A |
| System Voltage | 12V / 24V Auto |
| Max. Solar Input Voltage | 48V |
| Max. Solar Panel Power (12V) | 900W |
| Max. Solar Panel Power (24V) | 1.8kW |
| Battery Types Supported | Gel, Sealed, Flooded |
| Self-Consumption | Max. 15mA (12V); 13mA (24V) |
| Operating Temperature | -25°C to +55°C |
Charging & Battery Modes
The Photonic Universe VS6024BN employs advanced PWM (Pulse Width Modulation) charging technology, which is crucial for maintaining battery health and extending its operational life. This method intelligently regulates the current flow to the battery, preventing overcharging and helping to recover lost battery capacity over time.
| Feature | Description |
|---|---|
| PWM Charging | Optimises battery charging by gradually reducing current, preventing overheating and gassing, and promoting a longer battery lifespan. |
| Battery Type Selection | User-defined settings for Gel, Sealed, and Flooded batteries, allowing precise voltage and current management. |
| Temperature Compensation | Adjusts charging parameters based on ambient temperature for optimal battery performance and protection. |
| Programmable Load Output | Allows scheduling of DC load operation with timer functions, enhancing energy management. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Sheds | Provides reliable power management for lighting, small appliances, and charging in remote structures. |
| RVs, Caravans & Motorhomes | Manages solar input to leisure batteries, ensuring consistent power for mobile living. |
| Marine Systems | Ideal for boats and yachts to charge service batteries from solar panels. |
| Small Home Solar Setups | Suitable for supplementary power or backup systems in residential applications. |
Built-In Protection Functions
The Photonic Universe VS6024BN charge controller is equipped with a comprehensive suite of electronic safeguards to protect your solar system and batteries. These include automatic prevention of reverse current flow at night (from battery to solar panel) • protection against over-charging and deep discharge • safeguards for over-heating • over-load protection • short circuit protection • and reverse polarity protection.
Common Questions
What battery types are compatible with this controller?
This controller is compatible with Gel, Sealed, and Flooded lead-acid battery types. It automatically detects 12V or 24V system voltages upon connection.
Can I use higher voltage solar panels with this PWM controller?
Yes, it features a wide solar input voltage range of up to 48V, allowing for the use of higher voltage on-grid solar modules. However, for maximum efficiency with a PWM controller, it is generally recommended that the solar panel voltage at maximum power (Vmp) is only slightly higher than your battery voltage (e.g., 17V-18V panels for 12V batteries).
How does PWM technology benefit my battery?
PWM (Pulse Width Modulation) technology enhances battery charge acceptance, helps to prevent overcharging, reduces battery heating and gassing, and can even assist in recovering some lost battery capacity, thereby extending the overall lifespan of your battery.
What remote monitoring options are available?
The controller supports connection to a remote meter, a Wi-Fi module for mobile app access, or direct linkage to a PC/laptop via USB, offering flexible remote monitoring and parameter adjustment.
Installation Notes
- Mount the controller in a cool, dry, and well-ventilated area, away from direct sunlight and moisture.
- Always connect the battery to the controller first to allow it to recognise the system voltage (12V or 24V).
- Ensure all wiring connections are tight to prevent excessive heating and potential fire hazards.
- Install appropriate external fuses/breakers as close to the battery as possible for safety.
- Use insulated tools and exercise caution when working with batteries due to explosive gases.
Before You Buy
- Verify your battery system voltage (12V or 24V) and type (Gel, Sealed, or Flooded).
- Confirm your total solar panel wattage does not exceed the controller's maximum capacity (900W for 12V, 1.8kW for 24V).
- Ensure your solar panel's Vmp (voltage at maximum power) is suitable for PWM charging, ideally slightly above battery voltage.
- Consider if remote monitoring features (remote meter, Wi-Fi, USB) are essential for your setup.
- Consult the user manual for detailed wiring diagrams and safety instructions.
Always verify product specifications and compatibility with your existing system components before purchase. Professional installation is recommended for optimal performance and safety. This product includes a 2-year manufacturer warranty.
