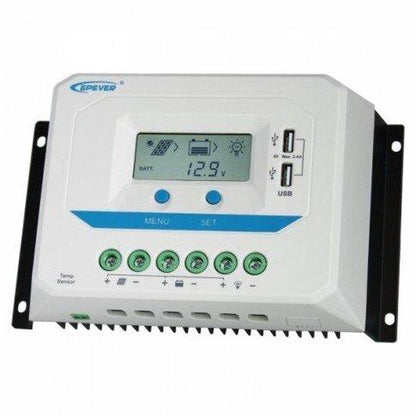

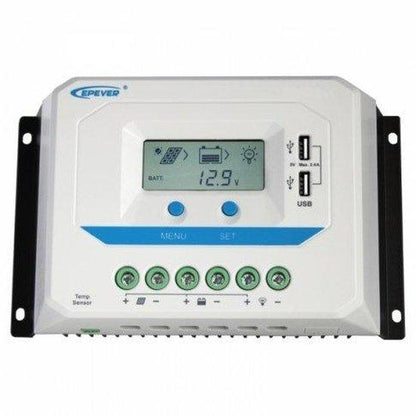

60A 12/24/36/48V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)
60A 12/24/36/48V solar charge controller / regulator with LCD display and powerful dual USB output (2.4A)
SKU:VS6048AU
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
60A 12/24/36/48V PWM Solar Charge Controller
Advanced Battery Management & Dual USB Output | Model: VS6048AU
The Photonic Universe VS6048AU 60A PWM Solar Charge Controller is a versatile and robust solution for managing solar power in various off-grid and hybrid systems. Designed for 12V, 24V, 36V, or 48V battery banks, this regulator offers advanced monitoring and comprehensive protection to ensure the longevity and efficiency of your solar setup.
Utilising Pulse Width Modulation (PWM) technology, it optimises the charging process, enhancing battery acceptance and potentially recovering lost capacity. Its user-friendly LCD display provides real-time performance data, while dual USB outputs offer convenient charging for portable devices.
SYSTEM VOLTAGE: Automatically detects and works with 12V, 24V, 36V, or 48V battery systems.
Key Features
| ▶ Multi-Voltage Auto-Detection — Automatically adapts to 12V, 24V, 36V, or 48V battery systems. |
| ▶ PWM Charging Technology — Optimises battery charging, improving acceptance and extending lifespan. |
| ▶ Intuitive LCD Display — Provides real-time data on solar panel and battery performance, including energy statistics. |
| ▶ Dual USB Output (5V 2.4A) — Conveniently charges mobile phones, tablets, and other USB-compatible devices. |
| ▶ Programmable Load Output — Supports an optional 12V load with various settings, ideal for night-time lighting. |
| ▶ Comprehensive Protection — Built-in safeguards against common electrical faults. |
| ▶ External Temperature Sensor Port — Allows for more precise battery temperature measurement (sensor sold separately). |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Charge/Discharge Current | 60A |
| System Voltage | 12V/24V/36V/48V Auto |
| Max. Solar Panel Input Power (12V) | 960W |
| Max. Solar Panel Input Power (24V) | 1920W |
| Max. Solar Panel Input Power (36V) | 2880W |
| Max. Solar Panel Input Power (48V) | 3840W |
| Max. Solar Panel Input Voltage | 96V |
| USB Output | Dual 5VDC / 2.4A (Combined) |
| Temperature Compensation | -3mV/°C/2V (25°C) |
| Working Temperature | -25°C to +55°C |
| Self-Consumption (12V) | Max. 9.2mA |
| Self-Consumption (24V) | Max. 11.7mA |
| Self-Consumption (36V) | Max. 14.5mA |
| Self-Consumption (48V) | Max. 17mA |
| Terminals | 3 Pairs (Solar, Battery, Load) |
| Wire Size Compatibility | Up to 25mm² |
| Dimensions (L x W x H) | 21.4 x 12.9 x 7.2 cm |
| Weight | 1.04 kg |
Charging & Battery Modes
This Photonic Universe charge controller offers flexible charging programs to suit various battery chemistries, ensuring optimal performance and lifespan. It automatically detects the system voltage and provides intelligent 3-level PWM charging.
| Battery Type | Description |
|---|---|
| Sealed (Default) | Optimised charging parameters for sealed lead-acid batteries. |
| Gel | Specific charging profile for gel batteries, preventing overcharging. |
| Flooded | Suitable for flooded (wet cell) batteries, often with an equalisation charge option. |
The controller allows users to easily select the appropriate battery type through its interface, ensuring correct charging voltages and preventing damage.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Ideal for cabins, sheds, and remote properties requiring reliable battery charging. |
| Caravans & Motorhomes | Manages solar input to leisure batteries, powering lights, appliances, and USB devices. |
| Marine & Boat Systems | Ensures efficient charging of marine batteries from solar panels. |
| Small Commercial Installations | Suitable for small-scale solar power systems in workshops or remote monitoring stations. |
Built-In Protection Functions
The Photonic Universe 60A PWM controller incorporates a full suite of electronic protection features to safeguard your solar system and batteries. These include protection against reverse current at night, automatic cut-off for over-charging and deep discharge, overheating, overload, short circuit, and reverse polarity for both solar panels and batteries.
Common Questions
What is PWM technology?
PWM (Pulse Width Modulation) technology regulates the charging current by rapidly switching the solar array connection to the battery. This method helps to maintain the battery in a fully charged state, increase charge acceptance, and can extend battery lifespan.
Can I connect a load directly to this controller?
Yes, this controller features an optional 12V load output. This is particularly useful for connecting small DC loads such as lighting or fans, and it offers programmable settings for night-time applications.
What battery types are compatible?
The controller is designed for use with sealed (default), gel, and flooded lead-acid batteries. It allows for easy selection of the battery type to ensure appropriate charging parameters.
Is a remote temperature sensor necessary?
The controller has a built-in temperature sensor. However, it also includes terminals for an optional remote temperature sensor (sold separately). Connecting a remote sensor directly to the battery can provide more precise temperature readings, optimising the charging process, especially in environments with fluctuating ambient temperatures.
Installation Notes
- Always connect the battery to the controller first to allow it to recognise the system voltage.
- Connect solar panels after the battery connection is established.
- Ensure correct polarity for all connections (+ to + and - to -).
- Install the controller in a well-ventilated area to ensure adequate heat dissipation.
- This controller features a positive common ground design.
- Refer to the detailed user manual for comprehensive wiring diagrams and operational instructions.
Before You Buy
- Verify your battery bank voltage (12V, 24V, 36V, or 48V) matches the controller's auto-detection capability.
- Confirm your total solar panel power does not exceed the controller's maximum input capacity for your system voltage.
- Ensure your solar panel array's open-circuit voltage (Voc) does not exceed 96V.
- Choose the correct battery type (Sealed, Gel, or Flooded) in the controller settings for optimal charging.
- Consider if a remote temperature sensor is beneficial for your specific installation environment.
Always verify product specifications and compatibility with your existing solar system components before purchase. This product is covered by a 1-year manufacturer warranty.
