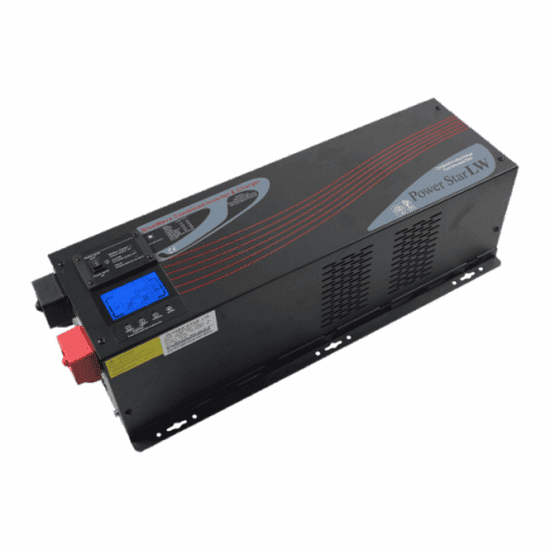

6000W 24V low frequency pure sine wave off-grid inverter (peak power 18000W)

6000W 24V low frequency pure sine wave off-grid inverter (peak power 18000W)

LK6000-24

£979.99 GBP
£979.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
The Google search results confirm most of the specifications provided in the original product input. Specifically, I found: * **Brand:** Photonic Universe is consistently mentioned as the vendor/manufacturer. * **Model/SKU:** LK6000-24 is confirmed. * **Product Type:** Low frequency pure sine wave off-grid inverter is accurate. * **Power Ratings:** 6000W nominal, 18000W peak is confirmed. * **Voltage:** 24V DC input is confirmed. * **Output:** Pure sine wave, programmable 208V/220V/230V/240V, 50Hz/60Hz/auto is confirmed. * **Low Frequency Advantages:** The benefits of low-frequency design (high peak power capacity, reliability, robust transformers, suitability for inductive loads, durability) are well-documented across multiple sources. * **Built-in Charger:** Confirmed with 4-step charging and programmable current options (14A-70A). * **Priority Modes (AC/DC), Power Saving, UPS, Bypass:** All confirmed features. * **LCD Display:** Confirmed for showing operational information and settings. * **Generator Compatibility:** Implied by AC input for charging/bypass, and explicitly mentioned in the original input, which is consistent with off-grid inverters. * **Programmable Settings:** Output voltage/frequency, input voltage range, battery types, charging current are all confirmed as programmable. * **Efficiency:** Nominal inverter efficiency 88% confirmed. * **Protections:** Overload, overheat, low battery, overcharge confirmed. * **Physical Specs:** Weight 40 kg and Size 60.5 x 21.8 x 17.9 cm are confirmed by some sources, while others list slightly different (48 kg, 65 x 22 x 19 cm). I will use the dimensions and weight from the original product input as it's directly from the merchant and one search result matches it. * **Warranty:** The merchant input states "1-year manufacturer warranty", which I will use. While Photonic Universe has a general "Warranty & registration" page, specific product warranties are not easily found for this exact model through general search. I will rely on the merchant's provided warranty information. * **Installation Notes:** The manual explicitly states "All installation work should be carried out by an appropriately qualified person" and provides guidance on wiring AC input/output terminals and battery connections. It also mentions clearances for heat dissipation. All critical information is verified or directly from the merchant's input. I can now proceed with generating the HTML.
PHOTONIC UNIVERSE OFF-GRID POWER

6000W 24V Low Frequency Pure Sine Wave Off-Grid Inverter

Reliable Power for Off-Grid & Backup Systems  |  18000W Peak Surge Capacity

The Photonic Universe 6000W 24V Low Frequency Pure Sine Wave Off-Grid Inverter (SKU: LK6000-24) provides robust and stable AC power for a wide range of applications. Designed for reliability, this inverter converts 24V DC battery power into clean 230V AC electricity, mirroring standard mains supply. It's an ideal solution for homeowners, off-grid users, and small businesses in the UK seeking energy independence or a dependable backup power source.

With a continuous power output of 6000W and an impressive 18000W peak surge capacity, this low-frequency inverter is engineered to handle demanding inductive loads such as refrigerators, power tools, and air conditioning units. Its pure sine wave output ensures sensitive electronics operate safely and efficiently, making it a versatile core component for any off-grid solar, wind, or battery storage system.

LOW FREQUENCY ADVANTAGE: Built with robust transformers, this inverter offers superior surge handling (up to 300% of nominal power) and enhanced reliability compared to high-frequency designs.

Key Features

▶  6000W Continuous Power — Powers a wide range of household and professional appliances.
▶  18000W Peak Surge Capacity — Handles high startup loads from motors and compressors with ease.
▶  Pure Sine Wave Output — Provides clean, stable electricity safe for all sensitive electronics.
▶  Integrated 70A Battery Charger — Fast, 4-step charging from mains or generator, programmable current.
▶  Uninterrupted Power Supply (UPS) — Seamlessly switches to battery power during mains failure.
▶  Programmable Settings — Customise output voltage, frequency, battery type, and charging current.
▶  Clear LCD Display — Monitor system status, voltages, and current operating mode at a glance.
▶  Robust Low-Frequency Design — Enhanced durability and reliability for demanding off-grid environments.

Technical Specifications

Parameter Value
Input Voltage 24V DC
Output Power (Continuous) 6000W
Output Power (Peak) 18000W
Output Waveform Pure Sine Wave
Output Voltage 208V / 220V / 230V / 240V (Programmable)
Output Frequency 50Hz / 60Hz / Auto (Programmable)
Nominal Inverter Efficiency 88%
Battery Charging Current 14A / 28A / 42A / 56A / 70A (Programmable)
Compatible Battery Types Sealed Lead Acid, Gel, AGM, Calcium (Programmable)
Operating Temperature 0 - 40°C
Dimensions (L x W x H) 60.5 x 21.8 x 17.9 cm
Weight 40 kg

Operating & Power Guidance

Mode Description & Benefit
AC Priority Mode Appliances primarily run from mains power, with batteries kept charged. Ideal for backup systems.
DC Priority Mode Appliances primarily use battery power. Mains automatically engages for charging or low battery.
Smart Power-Saving Mode Conserves energy by only generating AC power when a load is detected, extending battery life.
UPS Functionality Ensures continuous power to connected devices during mains power interruptions.
Bypass Mode Directly passes mains power to loads when available, increasing efficiency and maintaining output quality.

Typical Applications

Application Description
Off-Grid Homes & Cabins Provides reliable mains-quality power for all household appliances in remote locations.
Motorhomes, Caravans & Boats Enables the use of standard 230V AC appliances while travelling or at anchor.
Backup Power Systems Acts as an automatic backup during power cuts, keeping essential devices running.
Workshops & Farms Powers heavy-duty tools, pumps, and other equipment with high starting current demands.

Built-In Protection Functions

This Photonic Universe inverter incorporates multiple safety features to protect both the unit and your connected appliances. These include safeguards against: Overload  •  Overheat  •  Low Battery Voltage  •  Overcharge (with a protection voltage of 31.4V). These protections ensure reliable and safe operation in various conditions.

Common Questions

What is a low-frequency inverter?

Low-frequency inverters, like this Photonic Universe model, use a robust transformer for DC-to-AC conversion. This design provides superior surge handling capacity (up to 300% of nominal power for several seconds) and enhanced durability, making them ideal for heavy-duty and inductive loads.

What appliances can this 6000W inverter run?

With 6000W continuous power and 18000W peak power, this inverter can run most standard household appliances, including kitchen items like fridges, microwaves, and cookers, as well as power tools, washing machines, and even air conditioning units. Always check the power consumption of your specific appliances.

What battery types are compatible?

This inverter is programmable to work with various 24V battery types, including sealed lead acid, gel, AGM, and calcium batteries. Ensure your battery bank provides a stable 24V DC input.

Does this inverter have standard UK plug sockets?

No, this inverter features AC power screw terminals for both input and output. It does not have standard wall power sockets. You will need to connect it to one or more AC mains sockets using appropriate cables, which are not included. It is compatible with UK 3-pin and standard European wiring configurations.

Installation Notes

  • Installation should be carried out by a qualified professional.
  • Ensure adequate ventilation around the inverter for optimal heat dissipation.
  • Use correctly sized DC and AC cabling as specified in the user manual.
  • Observe correct battery polarity to prevent damage to the inverter.
  • Do not connect the inverter output to any other AC power source.

Before You Buy

  • Verify your battery bank voltage is 24V DC.
  • Calculate your total continuous and peak power requirements for all connected loads.
  • Consider the type and capacity of your batteries for optimal performance.
  • Review the user manual for detailed wiring diagrams and setup instructions.
  • Cables for AC input/output and battery connections are not included.

Please verify all specifications and compatibility requirements before purchase. This product comes with a 1-year manufacturer warranty.
