30W Reinforced Ultra-narrow semi-flexible solar panel with a durable ETFE coating
30W Reinforced Ultra-narrow semi-flexible solar panel with a durable ETFE coating
SKU:ARFLXSC2-30M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

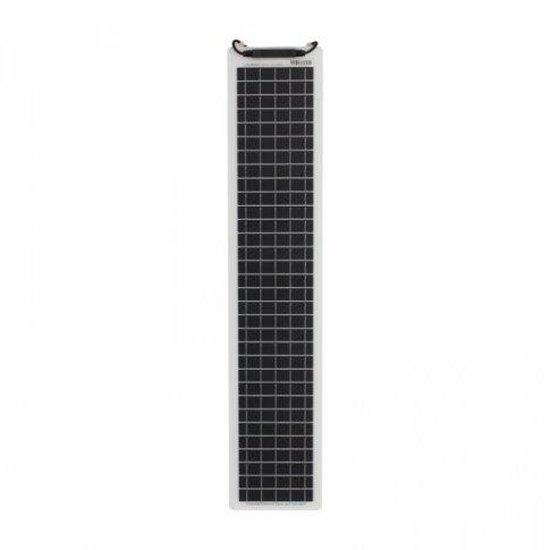

30W Reinforced Ultra-Narrow Semi-Flexible Solar Panel
Durable ETFE Coating | Monocrystalline Cells | 12V Systems
The Photonic Universe 30W Reinforced Ultra-Narrow Semi-Flexible Solar Panel (SKU: ARFLXSC2-30M) is engineered for robust performance and durability in demanding outdoor environments. Featuring a unique 7-layer construction with embedded anodised aluminium and a strong ETFE surface, this panel offers exceptional strength and resilience. Its monocrystalline solar cells with 5-busbar technology ensure high efficiency, making it ideal for charging 12V batteries in various applications.
Designed for permanent outdoor use, this semi-flexible panel is perfect for motorhomes, caravans, campers, and boats, as well as off-grid solar lighting and backup power systems. Its ultra-narrow profile (20cm wide) is particularly advantageous for installations with limited space or obstructions, providing a versatile and reliable power solution.
IMPORTANT NOTE: This panel requires a solar charge controller to charge 12V batteries.
Key Features
| ▶ Aluminium Reinforcement — Embedded anodised aluminium for enhanced strength and resilience. |
| ▶ Durable ETFE Surface — Longer service life, anti-reflective, and highly resistant to cracking and corrosion. |
| ▶ High-Efficiency 5-Busbar Cells — Monocrystalline cells maximise power output and perform well in warmer climates. |
| ▶ Ultra-Narrow Design — At just 20cm wide, it's ideal for restricted spaces or roofs with obstructions. |

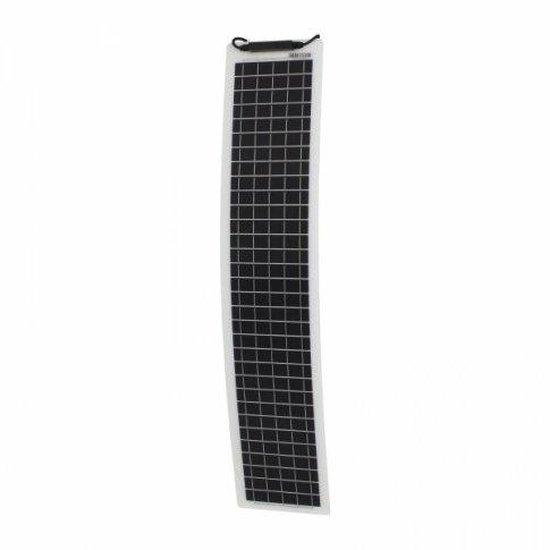

| ▶ Semi-Flexible Construction — Conforms to slightly curved roofs and surfaces, suitable for bonding or bolting. |
| ▶ Lightweight Design — Weighs only 1.25 kg, making it suitable for various vehicles and structures. |
| ▶ Saltwater Resistance — High resistance to marine environments, perfect for boats and yachts. |
| ▶ Waterproof Design — Sealed construction ensures reliable operation in all weather conditions. |
| ▶ Pre-fitted Cables & MC4 — Includes 2 x 90cm cables with MC4 connectors for easy and secure system integration. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 30W |
| Maximum Power Voltage (Vmp) | 17.6V |
| Maximum Power Current (Imp) | 1.7A |
| Open Circuit Voltage (Voc) | 20.2V |
| Short Circuit Current (Isc) | 1.8A |
| Power Allowance Range | +/- 5% |

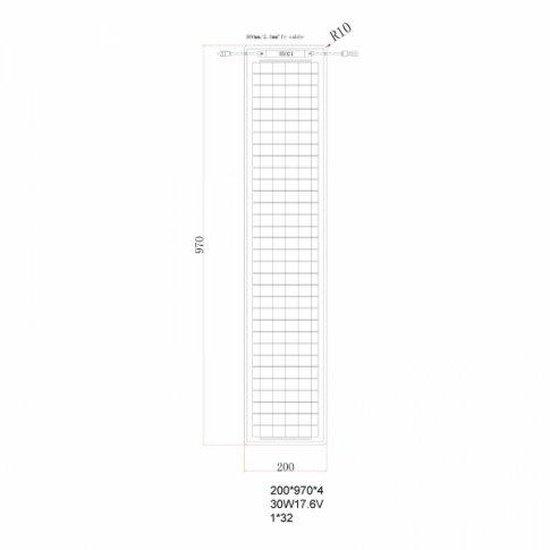

| Solar Panel Dimensions (L x W x D) | 970 x 200 x 4 mm |
| Junction Box Dimensions (L x W x D) | 90 x 16 x 16 mm |
| Weight | 1.25 kg |
| Cable Length | 2 x 90 cm |
| Cable Cross Section | 2.5mm² |
| Connectors | MC4 Male & Female |
| Cell Type | Monocrystalline (5-Busbar) |
| Surface Material | ETFE |
Operating & Power Guidance
This 30W semi-flexible solar panel is designed to provide a reliable power source for 12V systems. Its monocrystalline cells are highly efficient, converting sunlight into electricity effectively. For optimal performance and battery longevity, it is crucial to pair this panel with a suitable solar charge controller when charging 12V batteries. The charge controller regulates the voltage and current from the solar panel, preventing overcharging and ensuring efficient power delivery.
The panel can also be used to provide a direct power supply for certain applications that are not sensitive to variations in input voltage or current, such as specific electric motors or pumps. Its robust construction and ETFE coating make it suitable for continuous outdoor exposure, providing consistent power generation.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Provides auxiliary power for lighting, charging devices, and small appliances on the go. |
| Boats & Yachts | A reliable power source in marine environments, resistant to saltwater and suitable for walking on. |
| Off-Grid Systems | Ideal for powering remote cabins, sheds, garden offices, or as a backup power solution. |
| Solar Lighting | Supplies energy for outdoor lighting systems, garden features, or security lights. |
| Direct Power Supply | Suitable for applications not sensitive to voltage/current changes, such as small electric motors or pumps. |
Built-In Protection & Durability
The Photonic Universe 30W semi-flexible solar panel is designed for exceptional durability and long-term performance. Its unique 7-layer construction, featuring an embedded sheet of anodised aluminium, provides significant reinforcement against physical stress and impacts. The robust ETFE (Ethylene Tetrafluoroethylene) surface coating offers superior protection compared to standard materials, making the panel highly resistant to UV degradation, extreme temperatures, saltwater, and general wear and tear. This lightly textured coating also creates an anti-reflective surface, enhancing light absorption and overall efficiency. The sealed, waterproof design ensures reliable operation in all weather conditions, contributing to a longer service life and consistent power output.
Common Questions
What is ETFE and why is it beneficial?
ETFE (Ethylene Tetrafluoroethylene) is a highly durable polymer known for its excellent resistance to UV light, chemicals, and extreme temperatures. Its use as a solar panel coating provides a longer service life, superior weather resistance, and an anti-reflective surface that enhances light absorption compared to standard PET coatings.
Can this semi-flexible panel be walked on?
Yes, thanks to its reinforced construction with embedded anodised aluminium and a strong ETFE surface, this panel is designed to be highly robust and can withstand being walked on, making it particularly suitable for marine applications like boats and yachts.
Do I need a charge controller with this panel?
Yes, when charging 12V batteries, a solar charge controller is essential. It regulates the voltage and current from the solar panel to prevent overcharging and ensure the safe and efficient charging of your battery bank.
How does the ultra-narrow design benefit my installation?
The ultra-narrow 20cm width of this panel makes it exceptionally versatile for installations where space is restricted or where there are existing obstructions on a roof or surface. This allows for more flexible placement and maximises available solar collection area in challenging layouts.
Installation Notes
- Ensure the mounting surface is clean, dry, and structurally sound.
- The panel can be bonded using appropriate adhesive or fixed with bolts/screws through pre-drilled eyelets (if present, check manual).
- Connect the panel to a suitable solar charge controller before connecting to a 12V battery.
- Use appropriate solar cable extensions and MC4 connectors for secure and waterproof connections.
- Position the panel for maximum sun exposure, avoiding shading from obstructions.
Before You Buy
- Verify your system voltage is 12V to ensure compatibility with this panel.
- Confirm you have a suitable solar charge controller for your battery type and capacity.
- Measure your available installation space to ensure the 970 x 200 mm dimensions fit.
- Consider your power requirements; 30W is suitable for trickle charging or small loads.
- Review the full technical specifications to ensure it meets your project needs.
Please verify all specifications and compatibility requirements before purchase. This product is covered by a 1-year workmanship warranty provided by Photonic Universe.
