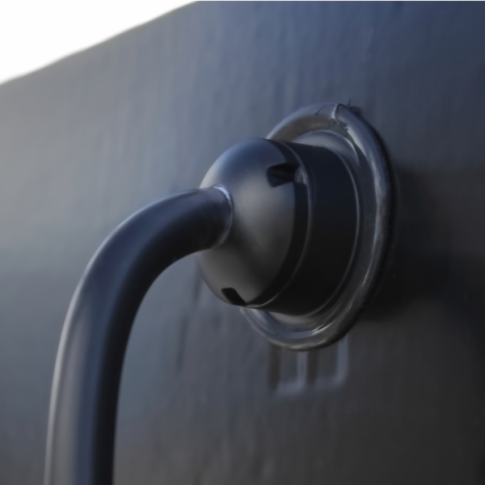

RELIABILITY: Features a rear-mounted circular junction box for a completely flush finish, eliminating trip hazards and ensuring a professional aesthetic on vehicle roofs and boat decks.

Key Features

• ✔ ETFE Surface: High UV resistance and self-cleaning properties.
• ✔ Fiberglass Base: Enhanced structural integrity and heat resistance.
• ✔ Flush Mounting: Rear-fitted junction box for level installation.
• ✔ Low Profile: Only 2mm thick for aerodynamic performance.
• ✔ Pre-Wired: Includes 3 metres of high-quality dual-core cable.

Technical Specs

Peak Power:	270W
Max Power Voltage:	24.2V
Max Power Current:	11.16A
Open Circuit Voltage:	28.6V
Short Circuit Current:	11.83A
Dimensions:	1900 x 710 x 2 mm
Weight:	5.00 kg

Application	Setup Type	Requirement
12V Battery Charging	Camper / Caravan	Requires MPPT Solar Controller
24V Battery Charging	Truck / Marine	PWM or MPPT Controller
Direct Power	Pumps / Fans	Voltage Regulated Loads

Mounting: This panel is designed for permanent outdoor installation. It can be bonded directly to a curved surface (such as a vehicle roof) using high-quality structural adhesive (e.g., Sikaflex). For flush mounting, a small recess must be cut to accommodate the rear junction box.

Wiring: The panel is supplied with a 3-metre dual-core cable. Ensure correct polarity when connecting to your solar charge controller.

Is this panel walkable?

While reinforced with fiberglass, we do not recommend walking on this panel as it can cause micro-cracks in the solar cells. It is designed for mounting on roofs or decks where foot traffic is minimal.

How do I know if it is compatible?

Check the dimensions (1900 x 710 mm) to ensure it fits your available space. It is compatible with 12V and 24V systems, provided a suitable solar charge controller is used.

Can this be used on a marine vessel?

Yes, the ETFE surface and sealed junction box offer high resistance to salt water environments, making it ideal for yachts and boats.
