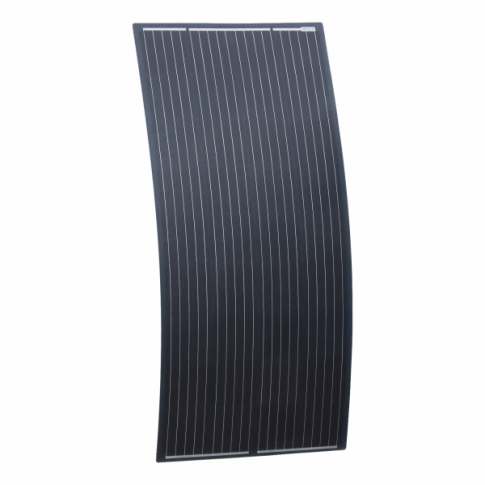

200W black semi-flexible fibreglass solar panel with round rear junction box and 3m cable, with durable ETFE coating
200W black semi-flexible fibreglass solar panel with round rear junction box and 3m cable, with durable ETFE coating
SKU:FLAXBJB2-200M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
200W SEMI-FLEXIBLE SOLAR PANEL [FLAXBJB2-200M]
ETFE Reinforced & Fibreglass Backed - Premium Marine Grade
The FLAXBJB2-200M is a high-performance 200W monocrystalline solar panel engineered for ultimate durability in harsh environments. Featuring an advanced ETFE coating and fibreglass reinforcement, this panel is significantly more resistant to cracking, delamination, and corrosion than standard flexible panels. The innovative rear-mounted junction box ensures a sleek, low-profile installation with no visible wiring on the panel surface, making it the perfect choice for high-end motorhomes, yachts, and off-grid builds where aesthetics and aerodynamics are paramount.
Key Features
- ✔ ETFE Surface: Superior UV and heat resistance
- ✔ Fibreglass Backing: Enhanced rigidity and lifespan

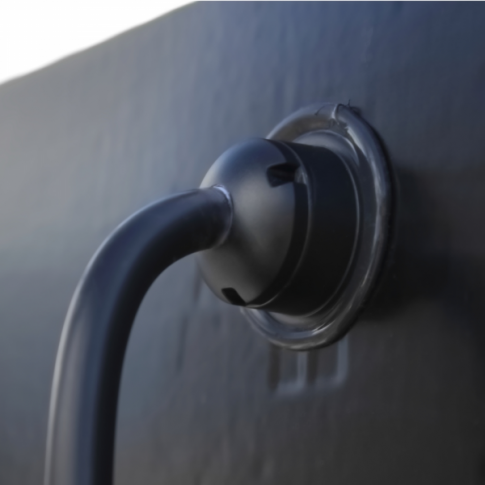

- ✔ Rear Junction Box: Low profile for flush mounting
- ✔ Marine Grade: Highly resistant to salt water
- ✔ 3m Cable: Included 4mm² twin-core solar cable
Technical Specs
| Peak Power | 200W |
| Max-Power Voltage (Vmp) | 20.5V DC |
| Max-Power Current (Imp) | 9.76A |
| Open Circuit Voltage (Voc) | 24.0V DC |
| Short Circuit Current (Isc) | 10.24A |

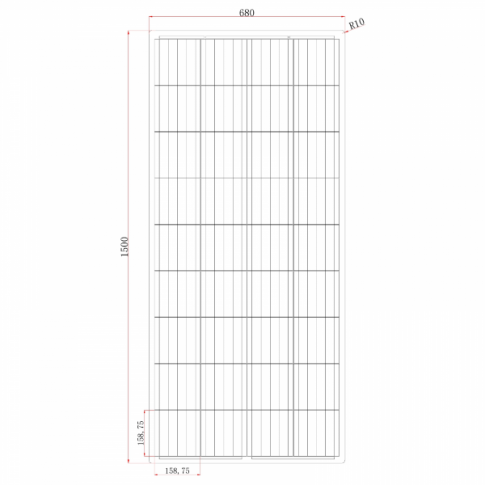

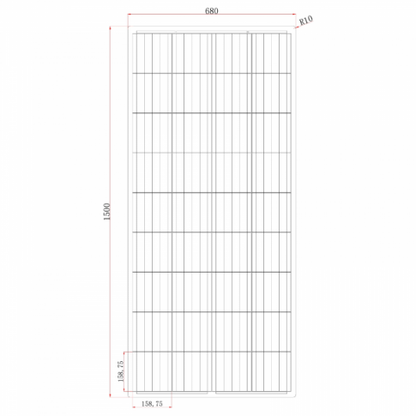

| Dimensions | 1500 x 680 x 2 mm |
| Weight | 3.65 kg |
Compatibility / Fitment Guide
| Application | Compatibility | Notes |
|---|---|---|
| Motorhomes & Caravans | Universal Fitment | Ideal for curved roofs (max arch height 268mm). |
| Marine & Yachts | Salt Water Resistant | ETFE coating protects against saline corrosion. |
| Solar Systems | 12V or 24V Systems | Requires a suitable MPPT solar charge controller. |
OEM & Alternate References
| Primary SKU | FLAXBJB2-200M |
| Replaces Part Number | ARFLXBJB2-200M |
| Alternate Part Number | FLPROCBJB-200M (Variant) |
| EAN Reference | 5060297348129 |
Installation Guide

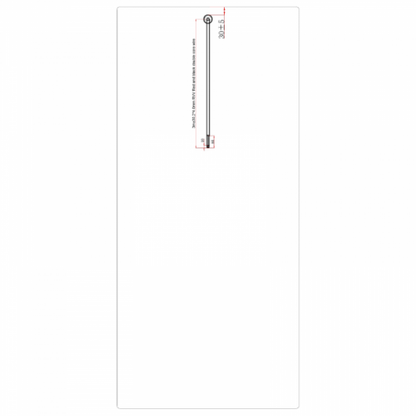

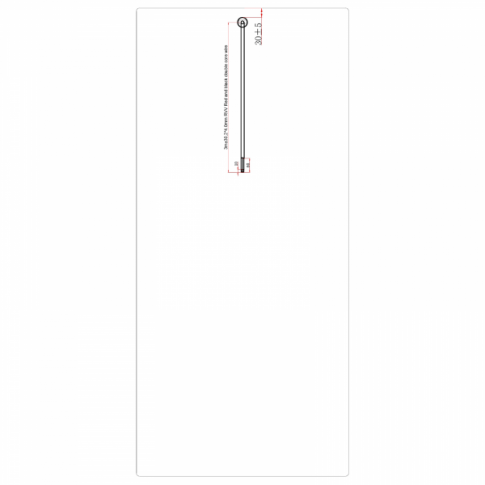

The panel includes a 3m dual-core cable with un-terminated ends. For vehicle installation, bonding with a high-quality marine adhesive/sealant is recommended. Ensure the surface is clean and dry. This panel must be used with a solar charge controller and should not be connected directly to a battery.
Questions & Answers
Is this a genuine original part?
This is a premium quality solarika / Aftermarket replacement part, manufactured by Photonic Universe to exceed OE standards for durability and performance.
How do I know if it is compatible?
Compare the SKU (FLAXBJB2-200M) and dimensions (1500 x 680mm) with your existing panel. If your original part number is ARFLXBJB2-200M, this is the official improved replacement.
Can this panel be walked on?
While the fibreglass reinforcement and ETFE coating provide exceptional durability, we do not recommend walking on this panel to prevent micro-cracks in the solar cells. It is designed for mounting on roofs and decks.
Note: Please verify your installation space and charge controller capacity before purchasing. solarika.co.uk provides expert technical support for all solar components.
