180W SEMI-FLEXIBLE SOLAR PANEL [FLAXBJB-180M]
Premium ETFE Coating & Rear Junction Box for Flush Mounting

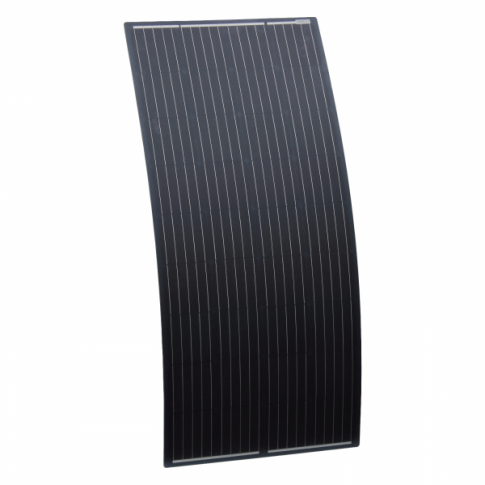

The FLAXBJB-180M is a high-performance 180W monocrystalline solar panel designed specifically for demanding mobile and marine environments. Featuring a unique rear-mounted junction box, this panel allows for a completely flush installation, eliminating trip hazards and reducing wind drag on vehicle roofs. The fiberglass reinforcement combined with a rugged ETFE top layer provides superior durability and resistance to salt water, making it the professional choice for yachts, campervans, and off-grid systems.
Key Features
- ✔ Rear Junction Box: Creates a seamless, level surface.
- ✔ Semi-Flexible: Conforms to curved surfaces (up to 250mm arch).
- ✔ ETFE Coating: Salt-water resistant and anti-reflective.
- ✔ Ultra-Thin: Only 3mm profile for low aerodynamic impact.
- ✔ Pre-Wired: Includes 3m of 4mm² dual-core solar cable.
Technical Specs
| Peak Power: | 180W |
| Max Power Voltage (Vmp): | 20.5V |
| Max Power Current (Imp): | 8.79A |
| Open Circuit Voltage (Voc): | 24.0V |
| Short Circuit Current (Isc): | 9.22A |

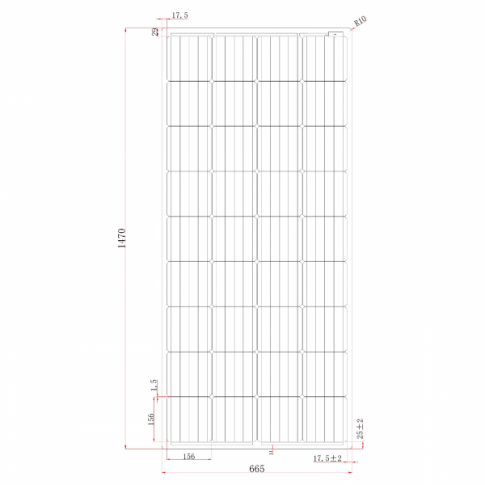

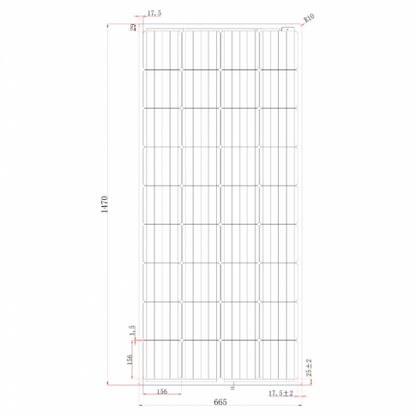

| Dimensions: | 1470 x 665 x 3 mm |
| Weight: | 3.15 kg |
Application & Fitment Guide
| System / Use Case | Application | Notes |
|---|---|---|
| Marine / Nautical | Boats, Yachts, Narrowboats | ETFE coating resists salt corrosion. |
| Leisure Vehicles | Motorhomes, Caravans, VW Transporters | Aerodynamic flush mount via rear J-Box. |
| Off-Grid Power | Remote Lighting, Backup Systems | Requires 12V Solar Charge Controller. |
Installation Notes

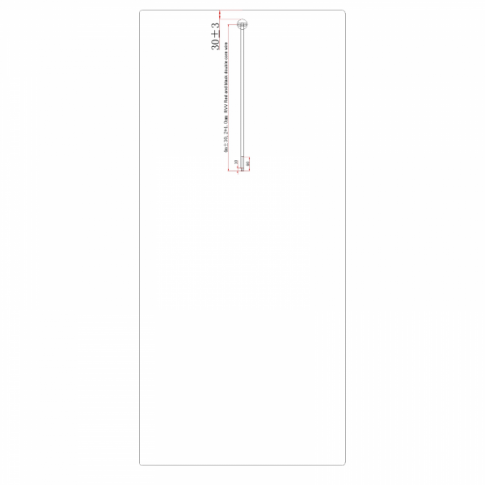

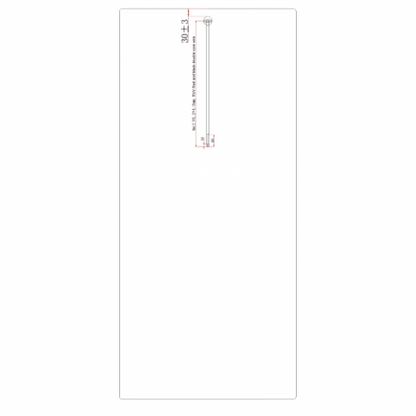

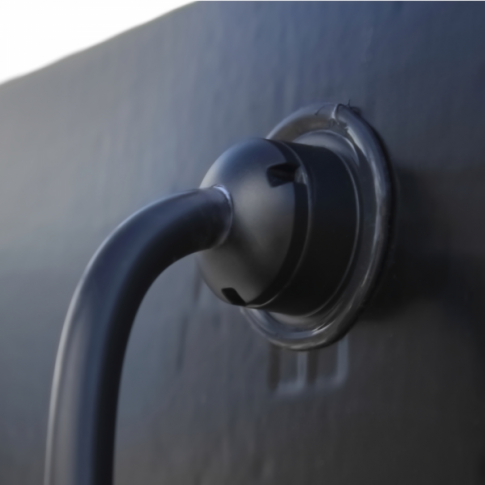

Flush Mounting: To achieve a perfectly level finish, a small recess/hole must be cut into the mounting surface to accommodate the circular rear-mounted junction box (approx. 30mm diameter).
Bonding: We recommend using a high-quality structural adhesive (such as Sikaflex 252 or 512) for permanent bonding to vehicle roofs or boat decks.
Questions & Answers
Is this a genuine solarika / Aftermarket part?
This is a premium quality aftermarket solar panel sourced to meet the high technical standards required by solarika for mobile and marine power applications.
Do I need a charge controller for this panel?
Yes. This panel must be used with a suitable solar charge controller (PWM or MPPT) to regulate the voltage before it reaches your 12V battery bank. It should not be connected directly to a battery.
Can I walk on this solar panel?
While the panel is reinforced with fiberglass and ETFE for durability, we recommend avoiding high-traffic areas. Occasional light treading with soft-soled deck shoes is generally acceptable if the panel is fully bonded to a flat, solid surface.
Note: Please verify measurements (1470 x 665mm) and your mounting space before purchasing. Professional installation is recommended for marine and vehicle roof bonding. Visit solarika.co.uk for technical support.
