100W SEMI-FLEXIBLE FIBREGLASS SOLAR PANEL WITH DURABLE ETFE COATING
100W SEMI-FLEXIBLE FIBREGLASS SOLAR PANEL WITH DURABLE ETFE COATING
SKU:FLPROC-100M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

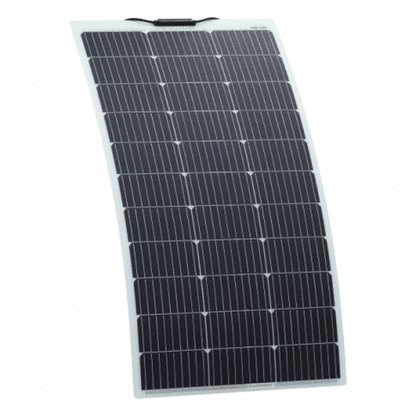

100W Semi-Flexible Fibreglass Solar Panel
Durable ETFE Coating | Monocrystalline | Lightweight Design
Unlock reliable power on the go with the Photonic Universe 100W Semi-Flexible Fibreglass Solar Panel. Engineered with a durable ETFE coating and high-efficiency monocrystalline cells, this panel is designed to provide consistent electricity for a wide range of mobile and off-grid applications. Its flexible and lightweight profile makes it an ideal choice for integrating seamlessly onto curved surfaces such as RV roofs, boat decks, or caravan tops, ensuring energy independence wherever your adventures take you.
This advanced solar panel combines robust construction with optimised performance, featuring new-generation 9-busbar technology to maximise power output even in challenging light conditions. The textured ETFE surface enhances light absorption and offers superior protection against environmental factors, making it a long-lasting and versatile power solution for UK users.
IMPORTANT NOTE: A suitable solar charge controller is essential for charging 12V batteries with this panel.
Key Features
| ▶ Unmatched Durability — Reinforced fibreglass with a robust ETFE coating for extended service life. |
| ▶ Optimised Performance — High-efficiency monocrystalline cells with 9-busbar technology for enhanced power output. |
| ▶ Flexible & Lightweight — Ideal for curved surfaces, weighing only 1.90kg and just 2mm thin. |
| ▶ Marine Ready Design — High resistance to saltwater environments and a sealed, waterproof construction. |
| ▶ Versatile Power Source — Suitable for 12V battery charging in motorhomes, caravans, and off-grid setups. |
| ▶ Easy Connectivity — Pre-fitted 1-meter solar cables with waterproof MC4 connectors for straightforward integration. |
Technical Specifications
| Parameter | Value |
|---|---|
| Peak Power | 100W |
| Maximum Power Voltage (Vmp) | 18.2V |
| Maximum Power Current (Imp) | 5.50A |
| Open Circuit Voltage (Voc) | 21.1V |
| Short Circuit Current (Isc) | 5.82A |

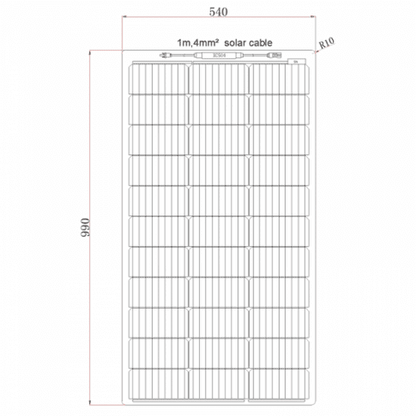

| Dimensions | 990 x 540 x 2 mm |
| Weight | 1.90 kg |
Operating & Power Guidance
This 100W semi-flexible solar panel is designed to generate DC electricity from sunlight. To effectively charge a 12V battery, it must be connected via a suitable solar charge controller (also known as a regulator). The controller manages the voltage and current, preventing overcharging and protecting your battery. For optimal performance and battery longevity, ensure your charge controller is correctly sized for the panel's output and your battery bank's capacity.
The panel's output is suitable for various 12V systems, and multiple panels can be wired in series or parallel (with appropriate controllers) to achieve higher power outputs for larger systems. Its robust construction and ETFE coating ensure consistent power generation even in demanding outdoor conditions.
Typical Applications
| Application | Description |
|---|---|
| Motorhomes & Caravans | Providing free electricity for charging leisure batteries and powering onboard appliances. |
| Boats & Marine | Reliable power for navigation, lighting, and onboard electronics in saltwater environments. |
| Off-Grid Systems | Supplying electricity for remote cabins, sheds, garden offices, or as a backup power source. |
| Solar Lighting Systems | Powering outdoor lighting, security systems, or other low-power applications. |
Built-In Protection & Durability
The Photonic Universe 100W Semi-Flexible Solar Panel is constructed for resilience in outdoor environments. Its durable ETFE coating provides excellent resistance to UV radiation, chemicals, and extreme temperatures, significantly extending the panel's lifespan and reducing common issues like cracking or delamination. • The panel features a sealed, waterproof design, making it highly resistant to moisture and suitable for marine applications. • The fibreglass reinforcement adds structural integrity while maintaining flexibility. • This product includes a 1-year workmanship warranty covering material and production defects.
Common Questions
Do I need a solar charge controller with this panel?
Yes, a solar charge controller is essential when connecting this panel to a 12V battery. It regulates the voltage and current to prevent overcharging and protect your battery from damage.
Can this semi-flexible panel be walked on?
While durable, semi-flexible panels are generally not designed for regular foot traffic. Occasional, careful stepping may be tolerated, but continuous walking or heavy impact should be avoided to prevent damage to the cells.
How should I install this panel on a curved surface?
This panel can be installed using a strong adhesive (bonding), screws, or bolts, depending on the surface material and your specific application. For curved surfaces, bonding is often preferred to ensure full contact and secure attachment.
Is this panel suitable for all weather conditions in the UK?
Yes, with its durable ETFE coating and waterproof design, this panel is built for permanent outdoor use and can withstand various weather conditions, including those found in the UK, as well as marine environments.
Installation Notes
- Ensure adequate ventilation around the panel to prevent overheating and maintain efficiency.
- Always connect the panel to a suitable solar charge controller before connecting to a battery.
- Use appropriate mounting methods (e.g., bonding, screws, bolts) that are compatible with your surface and application.
- For optimal performance, position the panel to maximise exposure to direct sunlight throughout the day.
- Consult a qualified professional for complex installations or if you are unsure about wiring.
Before You Buy
- Verify your system voltage requirements; this panel is designed for 12V battery charging systems.
- Select a compatible solar charge controller with a current rating suitable for a 100W panel (e.g., 10A).
- Consider the dimensions and flexibility needed for your intended mounting surface.
- Assess your daily energy consumption to ensure 100W meets your power needs.
- Ensure you have the necessary cables and connectors for your specific setup.
Please verify all specifications and compatibility requirements before purchase. Product specifications are subject to change by the manufacturer.
