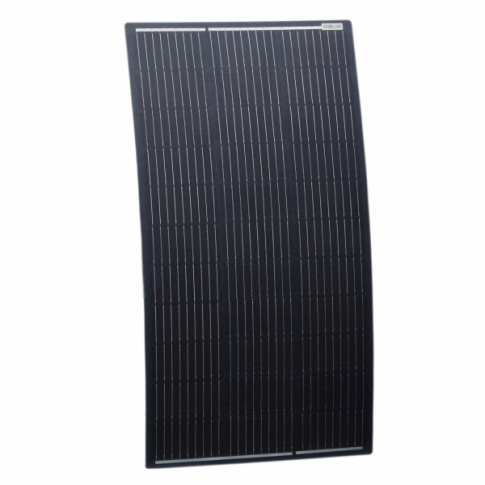

100W black semi-flexible fibreglass solar panel with round rear junction box and 3m cable, with durable ETFE coating
100W black semi-flexible fibreglass solar panel with round rear junction box and 3m cable, with durable ETFE coating
SKU:FLPROCBJB-100M
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
100W SEMI-FLEXIBLE SOLAR PANEL [FLPROCBJB-100M]
Premium Fibreglass Construction with Rear Junction Box
The solarika FLPROCBJB-100M is a professional-grade 100W monocrystalline solar panel designed for demanding mobile applications. Unlike standard flexible panels, this unit is constructed using high-quality fibreglass reinforced plastic, making it significantly more durable while remaining incredibly light and thin. The anti-reflective textured ETFE coating maximizes light absorption from all angles, ensuring superior performance even in low-light or cloudy UK conditions.
Key Features
- ✔ 9-Busbar Cells: Reduced resistance and higher efficiency.
- ✔ ETFE Coating: Highly resistant to salt water and corrosion.
- ✔ Ultra-Thin: Only 2mm thick for aerodynamic mounting.

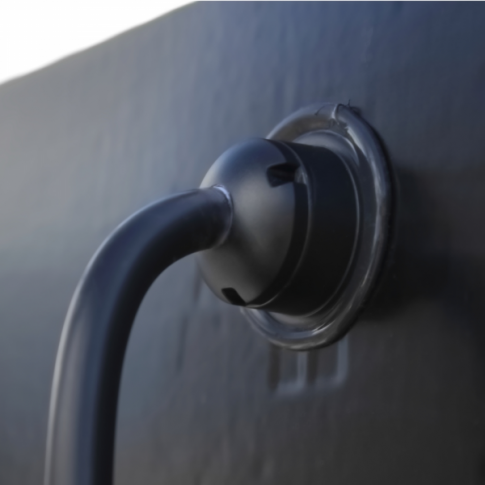

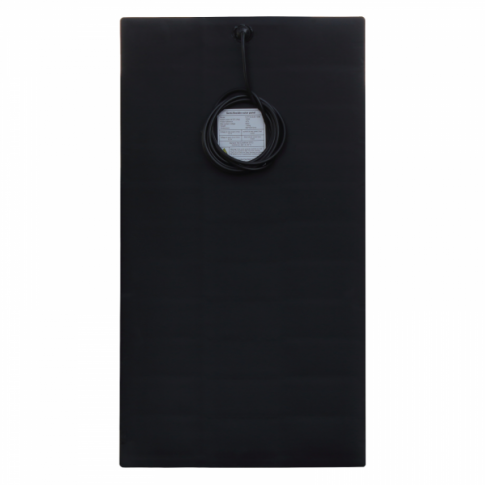

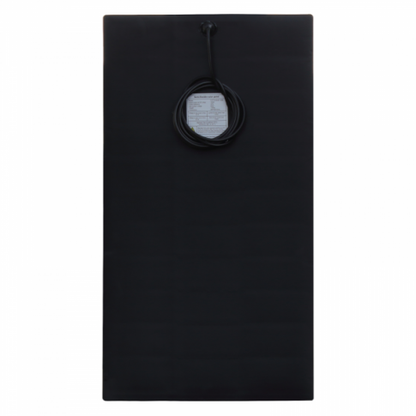

- ✔ Rear Junction Box: Round, sleek design for hidden wiring.
Technical Specs
| Peak Power: | 100W |
| Max Power Voltage (Vmp): | 19.1V |
| Max Power Current (Imp): | 5.24A |
| Open Circuit Voltage (Voc): | 22.3V |
| Short Circuit Current (Isc): | 5.50A |

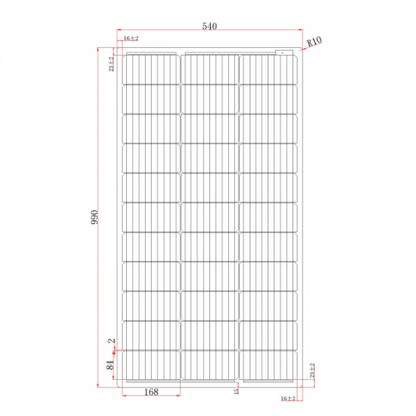

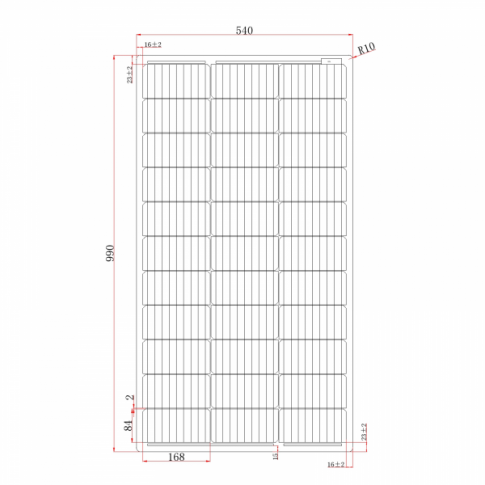

| Dimensions: | 990 x 540 x 2 mm |
| Weight: | 1.92 kg |
Application & Fitment Guide
| System Type | Application | Mounting Compatibility |
|---|---|---|
| Marine | Boats, Yachts, Narrowboats | Curved decks, Coachroofs |
| Automotive | Caravans, Motorhomes, Campers | Overhead roofs, Pop-tops |
| Off-Grid | Portable Power, Sheds, Cabins | Any flat/slight curved surface |
OEM / Manufacturer Cross Reference
| SKU Reference: | FLPROCBJB-100M |
| Related Series: | Photonic Universe FLPRO Series |
| Reinforced Variant: | ARFLXBJB-100M (Aluminium Core) |
Installation Notes

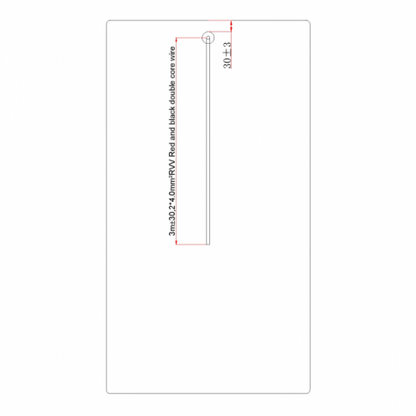

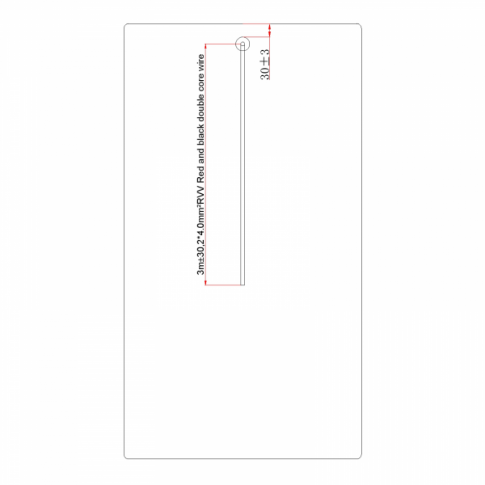

This panel comes pre-fitted with 3 meters of high-quality 4.0mm² dual-core solar cable. The rear junction box requires a small hole to be drilled in the mounting surface to allow the cable to pass through internally. It is designed for bonding using industrial adhesive (SikaFlex 252 or similar) or can be mechanically fastened via screws/bolts. Note: A solar charge controller is required to charge 12V/24V battery systems.
Questions & Answers
Is this panel suitable for marine environments?
Yes. The ETFE coating and fibreglass base are specifically designed to withstand salt water, UV exposure, and harsh marine conditions without delaminating.
Can I walk on this solar panel?
While fibreglass construction is extremely robust, we recommend the ARFLX (Aluminium Reinforced) version if frequent walking on the panel is expected. This model is designed for flexibility and durability on curved surfaces.
Why use a rear junction box instead of a front one?
The rear junction box creates a "flush mount" look. This is safer (no tripping on cables) and more aerodynamic, preventing wind noise and drag on vehicles.
solarika Part Number: FLPROCBJB-100M | Distributed by solarika.co.uk
