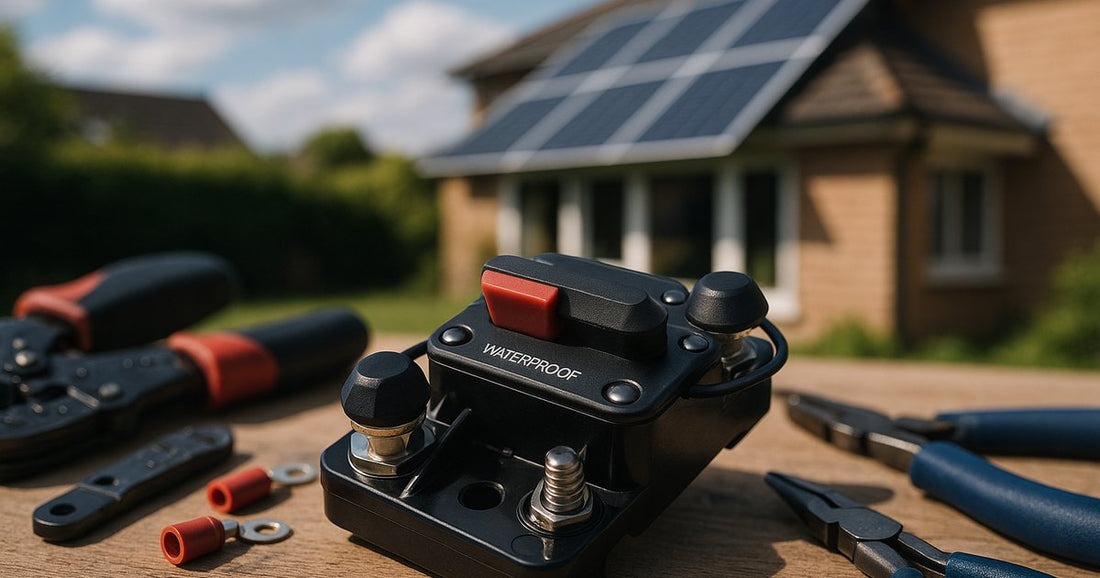

Protecting Your Solar Setup with a 250A Over-current Breaker
Share
Imagine investing thousands into a robust solar power system for your charming cottage in the Cotswolds. You've calculated your savings, mapped out the best panels for your roof, and even considered battery storage. But what happens when an electrical fault occurs? Without the right protective measures, such as a 250A over-current breaker, your investment could be at risk. An over-current breaker is crucial for safeguarding your solar setup from potential electrical hazards, which can lead to costly repairs or even system failure.
Why an Over-current Breaker is Essential
An over-current breaker is vital in any solar installation as it protects the electrical circuit from excessive current, which can cause overheating and potential fires. In the UK, where regulations like the IET Wiring Regulations (BS 7671) must be adhered to, using a breaker ensures compliance and safety. A 250A breaker is specifically designed to handle the current levels expected in larger residential systems, making it ideal for homes with high energy consumption or those planning to expand their solar capacity.
The risk of over-current in a solar setup can arise from various sources, including short circuits, ground faults, or even a surge from the grid. Without adequate protection, these events can lead to significant damage to your solar panels, inverters, and other system components. The breaker acts as a failsafe, interrupting the flow of electricity when current levels exceed safe limits.
Technical Specifications of a 250A Over-current Breaker
A 250A over-current breaker is typically rated for systems operating at 12V, 24V, or 48V, making it versatile for different solar setups. The breaker's main function is to detect and interrupt current flow that exceeds the 250-amp threshold, preventing damage to the system. It features a robust design to withstand harsh environmental conditions, which is critical for outdoor installations commonly seen in solar systems.
The breaker is equipped with a manual reset button, allowing homeowners to easily restore power once the fault has been addressed. Its compact design ensures it can be integrated into existing setups without requiring significant space. The breaker's housing is often made from durable materials like thermoplastic or metal, providing additional protection against physical impacts and weather-related wear.
Step-by-step Installation Guide
- Planning: Assess your solar setup to determine the best location for the breaker. It should be accessible for maintenance yet secure from accidental contact.
- Turn off Power: Ensure the solar system is completely powered down to prevent any risk of electric shock during installation.
- Mount the Breaker: Use appropriate mounting hardware to secure the breaker in place, ensuring it is stable and aligned with the rest of the system components.
- Connect the Wiring: Using the correct cable gauge (typically 35mm² for a 250A breaker), connect the positive and negative terminals from the solar array to the breaker's input terminals.
- Test the Installation: Once connected, perform a continuity test to ensure all connections are secure and the breaker is functioning correctly.
- Restore Power: Re-energise the solar system and monitor the breaker to ensure it operates as expected under load conditions.
Comparing Over-current Protection Devices
| Feature | 250A Breaker | Fuses | RCDs |
|---|---|---|---|
| Resettable | Yes | No | Yes |
| Over-current Protection | Yes | Yes | No |
| Earth Fault Protection | No | No | Yes |
| Cost | Moderate | Low | High |
Regulatory Compliance and Safety Standards
In the UK, solar installations must comply with specific safety standards and regulations. The IET Wiring Regulations (BS 7671) and the Microgeneration Certification Scheme (MCS) are key standards that ensure safety and efficiency in solar setups. Installing a 250A over-current breaker is part of meeting these standards, as it provides necessary protection against electrical faults.
Additionally, the breaker must be compliant with UK G98/G99 grid standards if your system is grid-tied. These standards govern the connection of generating systems to the public grid, ensuring they do not adversely affect grid stability and performance. Compliance not only protects your investment but also supports the broader goal of maintaining a reliable and sustainable energy grid.
Maintaining Your Over-current Breaker
Regular maintenance of your over-current breaker is crucial to ensure its longevity and reliability. Start by performing visual inspections monthly to check for any signs of wear or damage, such as cracks in the housing or corrosion on the terminals. These inspections can help you identify issues before they lead to system failure.
It's also important to test the breaker's functionality periodically. Simulate an over-current condition by temporarily increasing the system load, ensuring the breaker trips as expected. If the breaker does not trip, it may need servicing or replacement. Keeping a maintenance log can be beneficial for tracking performance and identifying patterns that might indicate underlying issues.
Key Takeaways
- A 250A over-current breaker is essential for protecting larger solar setups from electrical faults.
- Ensure compliance with UK regulations like BS 7671 and MCS by incorporating a breaker into your system.
- Regular maintenance and testing of your breaker can prevent costly repairs and prolong system life.
- Over-current breakers are more versatile and reliable than fuses for solar applications.
- Select a breaker that matches your system's voltage and current requirements.
- Proper installation and location of the breaker are crucial for optimal performance.
FAQ
What is the role of an over-current breaker in a solar setup? An over-current breaker protects your solar setup by interrupting the flow of electricity when the current exceeds a safe level, preventing damage to your system components.
How do I choose the right over-current breaker for my solar system? Select a breaker based on your system's voltage and current requirements. For larger systems or those with expansion plans, a 250A breaker is ideal.
Can I install an over-current breaker myself? While it's possible to install a breaker yourself, it is recommended to hire a qualified electrician to ensure compliance with safety standards and regulations.
How often should I test my over-current breaker? Regular testing should be performed at least once a year to ensure the breaker functions correctly. More frequent testing may be necessary if your system experiences frequent load changes.
What happens if my breaker trips frequently? Frequent tripping may indicate an underlying issue such as a short circuit or ground fault. Investigate the cause and consult a professional if necessary to prevent further damage.
To enhance the safety and longevity of your solar installation, consider integrating a 250A over-current breaker into your system. Visit Solarika's product page to find the right breaker for your needs and ensure your investment is protected.
