For UK homeowners venturing into solar energy, understanding the technical components of your photovoltaic (PV) system is crucial. One such component, the 4-to-1 MC4 cable assembly, plays a vital role in efficiently connecting multiple solar panels. Incorrect assembly can lead to inefficiencies and safety hazards, impacting both performance and return on investment. This article delves into what 4-to-1 MC4 assemblies are, how they work, and why they are essential for your solar setup.
What Are 4-to-1 MC4 Assemblies?

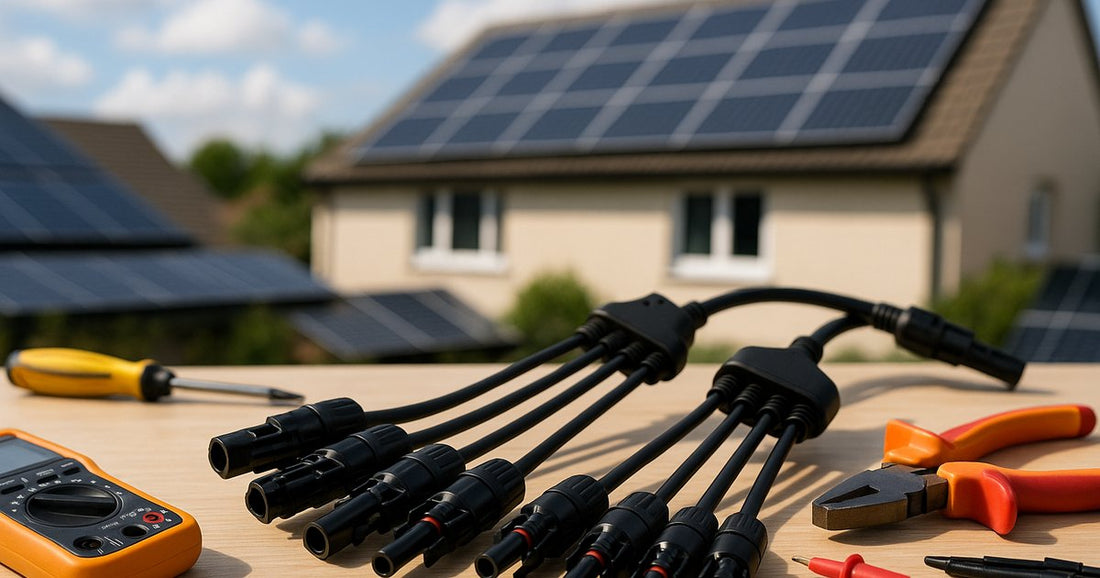

A 4-to-1 MC4 assembly is an electrical connector used in solar installations to combine the output from four solar panels into a single cable. This type of assembly uses MC4 connectors, which are standardised components in solar systems. The 'MC4' stands for 'Multi-Contact, 4mm diameter,' referring to the size of the connector pin. These assemblies simplify the wiring process, reducing the number of cables running across your roof, which can help minimise voltage drop and resistive losses.
In the UK, where roof space might be limited, using a 4-to-1 assembly is particularly beneficial. It allows for a more streamlined installation, reducing clutter and potential points of failure. Additionally, by consolidating connections, you can more easily maintain and troubleshoot your system, enhancing both safety and efficiency.
Benefits of Using 4-to-1 MC4 Assemblies
Utilising a 4-to-1 MC4 assembly offers several advantages. Firstly, it provides a cleaner and more organised setup, which is aesthetically pleasing and less prone to mechanical damage or weather-related degradation. This is particularly important in the UK's varied climate, where robust and reliable connections are necessary to withstand conditions ranging from heavy rain to strong winds.
Secondly, these assemblies can improve the electrical efficiency of your solar array. By reducing the length of cable runs, you minimise the resistive losses that occur over distance. This efficiency gain can translate into higher energy yields, making your investment in solar more financially viable. Furthermore, fewer cables mean fewer connectors, which reduces the potential for faults such as isolator failures or PID (Potential Induced Degradation) issues.
Installation Process of 4-to-1 MC4 Assemblies
Installing a 4-to-1 MC4 assembly involves several steps that ensure both safety and optimal performance. Here's a step-by-step guide:
- Plan Your Layout: Assess your roof space and design your panel layout to determine the optimal placement for the MC4 assembly.
- Connect Panels: Attach each solar panel to the MC4 assembly. Ensure that all connections are secure and watertight to prevent moisture ingress.
- Route Cables: Use the shortest possible path to connect the assembly to your inverter, reducing potential voltage drop.
- Test Connections: Once installed, test all connections with a multimeter to ensure correct polarity and continuity.
- Secure Assembly: Fix the MC4 assembly to a stable part of your roof structure to prevent movement and damage.
Proper installation is critical to avoid common issues such as microinverter failures and isolator faults, which can severely impact system performance.
Impact on System Efficiency and Safety
The use of 4-to-1 MC4 assemblies can significantly enhance both the efficiency and safety of your solar PV system. By consolidating connections, these assemblies reduce the risk of electrical faults and make it easier to perform regular maintenance checks. In terms of efficiency, the reduced cabling diminishes resistive losses, which can otherwise lead to lower energy output.
Safety is another critical consideration. The fewer connections and cables you have, the less likely you are to encounter issues such as electrical arcing or cable degradation. This becomes particularly important in older properties or listed buildings, where the integrity of the building fabric must be preserved.
Comparison with Other Connection Methods
| Connection Method | Pros | Cons |
|---|---|---|
| 4-to-1 MC4 Assembly | Efficient, reduced clutter, improved safety | Requires careful planning |
| Individual MC4 Connectors | Flexibility in layout | More cabling, higher risk of faults |
| Junction Boxes | Centralised connections | Complex installation, potential for higher losses |
Each method has its place, but for most residential installations in the UK, the 4-to-1 MC4 assembly offers a balanced approach of simplicity and efficiency.
Regulatory Considerations in the UK
In the UK, any solar installation must comply with specific regulations, including MCS (Microgeneration Certification Scheme) accreditation and the Smart Export Guarantee (SEG). Using standard components like MC4 assemblies can help ensure compliance with these regulations. Moreover, installations must adhere to the UK G98/G99 standards for grid connection, which may require notification or approval from your Distribution Network Operator (DNO).
For listed buildings or those in conservation areas, planning permission might be necessary. It's essential to consult with local authorities before proceeding with your installation to avoid potential legal issues.
Key Takeaways
- 4-to-1 MC4 assemblies streamline solar panel connections, enhancing efficiency and safety.
- Proper installation involves careful planning and secure, watertight connections.
- Fewer cables and connections reduce the risk of electrical faults and maintenance issues.
- Compliance with UK regulations, such as MCS and SEG, is essential for legal and efficient operation.
- Consider local planning permissions, especially for listed buildings.
- Improved efficiency can lead to higher energy yields and better financial returns.
FAQ
Why should I use a 4-to-1 MC4 assembly instead of individual connectors? A 4-to-1 MC4 assembly reduces the number of cables, which decreases resistive losses and potential points of failure. This leads to a more efficient and reliable solar installation.
Are 4-to-1 MC4 assemblies suitable for all solar panel types? Yes, they are compatible with most solar panels that use MC4 connectors. However, it's crucial to ensure that the assembly is rated for the current and voltage of your specific panels.
What are the common failure modes of MC4 assemblies? Common issues include poor connections leading to increased resistance, water ingress causing corrosion, and mechanical damage from improper installation. Regular checks can mitigate these risks.
How do I test my MC4 connections? Use a multimeter to test for continuity and correct polarity. Ensure that the connectors are securely fastened and check for any signs of wear or damage.
Do I need a professional to install a 4-to-1 MC4 assembly? While it's possible to install these assemblies yourself, hiring a professional ensures compliance with UK regulations and optimal system performance. A qualified installer can also provide a warranty on their work.
