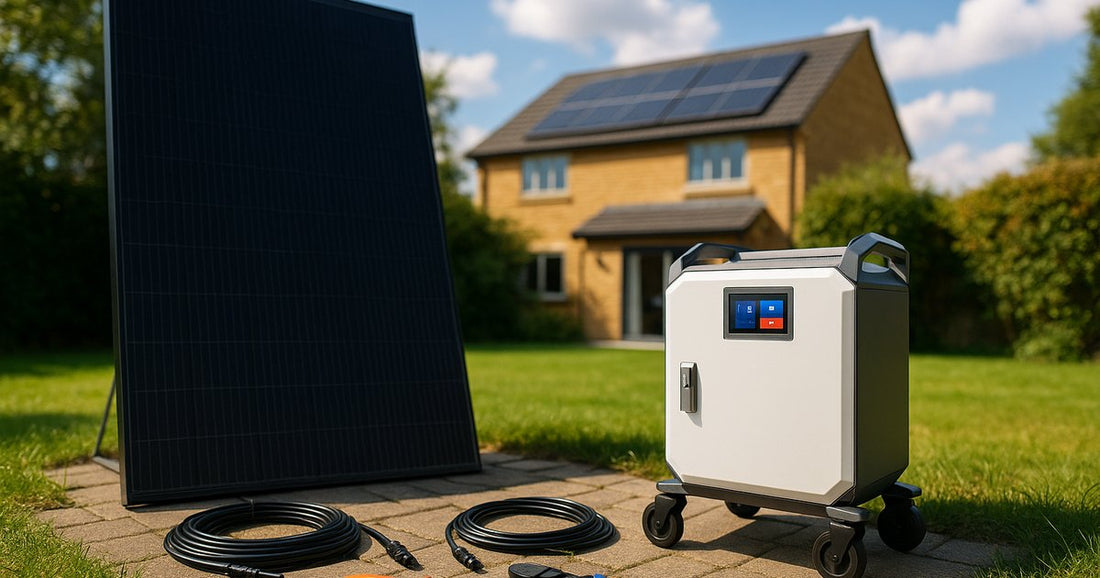

Complete 5kW Off-Grid Power System for UK Homes

Imagine your home in the heart of the UK countryside, completely independent from the national grid. A well-designed off-grid solar power system not only provides energy autonomy but also shields you from rising electricity costs. However, achieving this requires careful planning and understanding of the components involved. Mistakes can lead to inadequate power supply or costly system failures. This guide details how to effectively set up a 5kW off-grid system, ensuring you harness the maximum potential of solar energy.

Understanding the Core Components of a 5kW Off-Grid System

A 5kW off-grid solar power system typically comprises solar panels, a battery storage system, an inverter, charge controllers, and essential wiring and mounting equipment. The solar panels, usually a 3.5kW array, capture sunlight and convert it into electricity. With an average UK solar output of 850-1,100 kWh per kW per year, your panels could generate approximately 3,000-3,850 kWh annually. The battery, often a 5kWh lithium-ion unit, stores excess energy for use when sunlight is insufficient. Inverters, rated at 5kW, convert DC from the panels into AC for household use. Charge controllers regulate the power entering the battery to prevent overcharging, while robust wiring (typically 4-6mm²) ensures efficient energy transfer.

Step-by-Step Installation Process

Setting up an off-grid system involves several critical steps. Here's a detailed process:

1. Site Assessment: Evaluate your roof's orientation and angle. A south-facing roof with a 30-40° pitch is ideal.
2. System Design: Calculate energy needs to size the battery and number of panels. Consider future expansion.
3. Procurement: Purchase MCS-certified solar panels, inverters, and batteries from reputable suppliers.
4. Installation: Secure panels using appropriate mounting kits. Ensure wiring adheres to the UK G98/G99 standards.
5. Electrical Setup: Connect the inverter, charge controller, and battery. Verify all connections are secure and weatherproof.
6. Testing and Commissioning: Run comprehensive tests to ensure the system operates efficiently and safely.

Choosing the Right Components

Selecting the correct components is crucial for a successful off-grid setup. For solar panels, monocrystalline types are preferred due to their higher efficiency (18-22%) compared to polycrystalline (15-17%). Inverters come in various types: string inverters are cost-effective for uniform arrays, while microinverters offer better performance in partially shaded conditions. Hybrid inverters combine solar and battery management, providing a streamlined solution. Ensure your battery has a sufficient cycle life and depth of discharge (DoD), with lithium-ion variants often offering 80-90% DoD. Always verify warranties and support services from manufacturers.

Cost and ROI Analysis

The cost of a complete 5kW off-grid system can range from £6,000 to £12,000, depending on the quality and type of components. While this initial investment is considerable, the return on investment (ROI) can be attractive. With an average UK electricity price of £0.25 per kWh, generating 3,400 kWh annually could save approximately £850 each year. This equates to a payback period of 7-14 years. Additionally, government incentives like the Smart Export Guarantee (SEG) allow for potential earnings from excess energy exported to the grid, further enhancing financial returns.

Maintenance Tips for Longevity

Regular maintenance ensures your off-grid system operates efficiently. Clean solar panels every six months to remove dirt and debris that could reduce efficiency by up to 20%. Check for signs of wear or damage, such as delamination or microinverter failure, which can impact performance. Monitor the battery's state of charge and cycle it occasionally to maintain health. Inspect wiring and connections for corrosion or damage, particularly after adverse weather conditions. Scheduled checks by a certified technician can prevent minor issues from escalating into costly repairs.

Legal and Regulatory Considerations

Before installing an off-grid system, ensure compliance with UK regulations. Planning permission may be required, especially for listed buildings or conservation areas. The system must meet MCS standards, and installations must adhere to the UK G98/G99 grid codes. Notify your Distribution Network Operator (DNO) of your installation to avoid penalties. Additionally, ensure your installer has the necessary certifications and is familiar with relevant health and safety regulations.

Key takeaways

• Calculate your energy needs accurately to size your system effectively.
• Choose high-efficiency monocrystalline panels for better performance.
• Regular maintenance can prevent efficiency losses and extend system life.
• Understand UK regulations and secure necessary permissions before installation.
• Consider future expansion when designing your off-grid system.
• Monitor system performance regularly to identify and resolve issues promptly.
• Explore government incentives like SEG for additional financial benefits.

FAQ

How much power can a 5kW solar system generate? A 5kW system in the UK generates about 3,400 kWh annually, depending on location, orientation, and shading. This output can cover a significant portion of a typical household's energy needs, especially when combined with efficient energy management practices.

What happens when the battery is full? Once the battery is fully charged, a charge controller will divert excess energy to prevent overcharging. In some systems, this excess can be used to power additional loads or, if connected, exported to the grid under the SEG scheme.

Can I expand my off-grid system later? Yes, expansion is possible by adding more panels or larger batteries. It's advisable to choose an inverter and charge controller with a capacity that allows for future growth, avoiding the need for complete component replacement.

What are the common failure modes of off-grid systems? Common issues include microinverter failure, PID degradation, and battery performance loss over time. Regular maintenance and monitoring can help mitigate these risks, ensuring system longevity and reliability.

Do I need to notify my DNO for an off-grid system? While off-grid systems are generally independent, it's still advisable to inform your DNO as part of best practices, especially if there's a possibility of connecting to the grid in the future.
