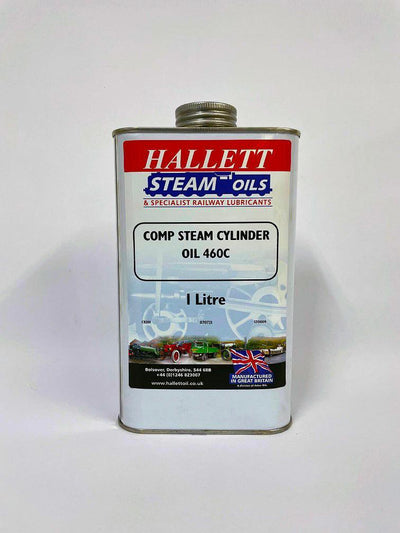

Compounded Steam

Cylinder Oil 460C

Hallett Code: STO009

A compounded steam cylinder oil formulated from a select blend of solvent refined mineral oil and a fatty compounding additive. The fatty compounding enables the oil to form an emulsification in the presence of moisture whilst retaining a consistent and strong lubrication film, this allows the lubricant to disperse where it can adhere to the internal surfaces of steam cylinders and valve blocks.

Product Benefits:
•   Does not damage paintwork or cause staining on phosphor bronze, brass or copper fittings.
•   Promotes low carbonisation of cylinders and pistons.
•   Provides a robust lubricating film to protect valves and cylinders.
•   Offers excellent corrosion resistance.
•   Exceptional lubricity, even at elevated temperatures.

• Suitable for steam models.

Steam temperature – up to 150°C (300°F)
Boiler pressure – up to 125PSI

Applications:

Designed for lower steam temperatures, pressures, and saturated steam conditions.
This product may be used for the lubrication of industrial gears and bearings where the use of an extreme pressure oil is not required.
Compounded lubricants are not recommended for use where there is condensate recovery.

Product Test Data:

Density @15?C: 0.900

Kinematic Viscosity @ 40?C (cSt) : 460.0
Kinematic Viscosity @ 100?C (cSt) : 28.9

Viscosity Index : 89
Flash Point (COC ?C) : >200
