🌞 Effortless Solar Monitoring with the Morningstar RM-1 Remote Meter! 🌞

As an official distribution partner of Morningstar products worldwide, we are proud to offer high-quality solar power equipment from this world-leading supplier. Designed with innovative technology and superior build quality, the Morningstar RM-1 Remote Meter ensures top-tier performance and reliability for your solar power systems.

Key Features:

Brand: Morningstar
Model: RM-1 Remote Meter
Compatibility:
- SunSaver Duo Controller
- SunSaver MPPT Controller
- SureSine Inverter

Comprehensive Monitoring:

Displays Key Parameters:
- Solar Panel Current
- Battery Voltages
- Amp-Hours
- Temperature
- Logged Data
- Settings
- Alarms
- Error Reporting
Inbuilt LED Indicators: Show battery level and operating state.

User-Friendly Interface:

Large Numerical Display: Easy-to-read backlit meter menu.
Simple Navigation: Buttons for easy menu navigation.
Versatile Mounting Options:
- Wall/Surface Mounting: Using provided mounting holes.
- Flush Mounting: Frame can be removed for a level surface installation.

Energy Efficient:

Low Self-Consumption:
- 6mA (Backlight Off)
- 15mA (Backlight On)

Specifications:

Connector Type: RJ-11 (6 Pin)
Cable Length: 10m (extendable to 30m)
Minimum Operating Voltage: 8V
Operating Temperature: -20°C to +60°C
Humidity: 100% Non-Condensing
Dimensions:
- Front (without mounting frame): 9.5 x 9.5 cm
- Back (without mounting frame): 7.4 cm diameter, 2.8 cm depth (fits 7.6 cm / 3 in. round hole)
- With Mounting Frame: 11.4 x 11.4 x 3.5 cm
Weight: 135 g
Warranty: 5-Year Manufacturer Warranty

Included in the Package:

Morningstar RM-1 Remote Meter
10m RJ-11 Cable
Mounting Screws
Instruction Manual

Documents Available for Download:

Why Choose the Morningstar RM-1 Remote Meter?

Innovative Design: Years of dedicated research and superior build quality.
Comprehensive Monitoring: Full visibility of your solar power system’s performance.
User-Friendly: Easy installation and operation.
Energy Efficient: Low power consumption ensures minimal impact on your system.

Need Assistance?

We provide FREE support for installation and technical questions. Contact us by email or phone for expert help.

Enhance your solar power system with the reliable and efficient Morningstar RM-1 Remote Meter. Order now and take control of your solar power like never before!

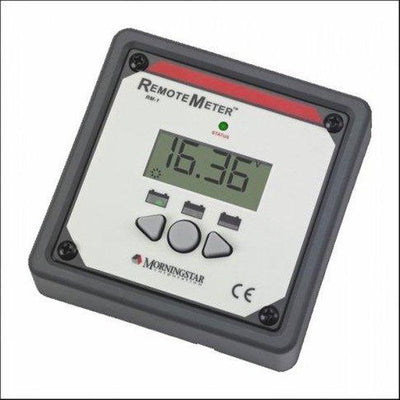

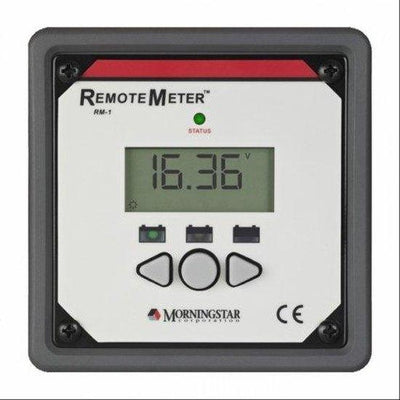

Morningstar remote LCD meter RM-1 for SunSaver Duo controllers, SunSaver MPPT controllers and SureSine inverters
