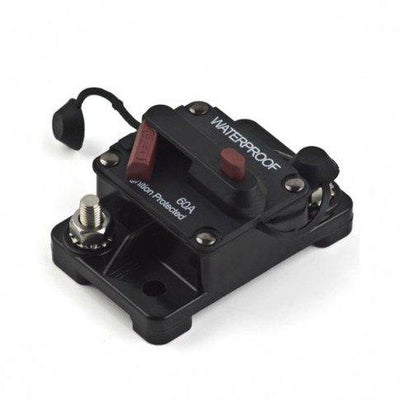

60A 12V/24V/48V Automatic over-current DC circuit breaker/switch. This 60A circuit breaker combines the functions of a resettable 60A fuse and an On/Off switch in one unit. It is ideal for any DC system that requires both over-current protection and manual isolation of the circuit. The breaker is suitable for a wide range of DC system voltages from 12V to 48V. Like any fuse, this circuit breaker is designed to protect the system from over-current events resulting from high power draw, short-circuits, wiring mistakes, equipment faults, or any other high current events.

The circuit breaker is a resettable device, making it a better option than fuses, which need to be replaced when blown. It also has a manual-break feature, allowing it to function as an On/Off switch for easy disconnection and reconnection of the system. The breaker is constructed from durable thermal plastic designed to withstand high temperatures (UL94V-0 rated). Additionally, it is water-resistant (IP67 rated) and ignition protected, meeting international standards S.A.E. J1625, J1171, UL1500. This product is suitable for various DC applications, including connecting solar or wind charge controllers to batteries, between off-grid inverter DC input and batteries, DC power distribution or charging circuits, and other DC automotive and marine applications. The details and specifications tab provides more information about the circuit breaker.

Here are the circuit breaker specifications:

- Rating: 60A

- Type: Thermal overcurrent protection device

- Material: Thermal plastic (UL rated 94V-0)

- Operating temperature: -32°C to 82°C

- Storage temperature: -34°C to 149°C

- Terminals size: M6

- Enclosure: IP67

- Size: 74 x 48 x 37 mm

- Weight: 110g

- Waterproof rating: IP67

- International standard ratings (S.A.E. J1625, J1171, UL1500)

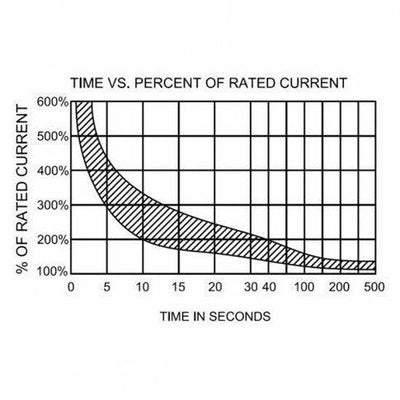

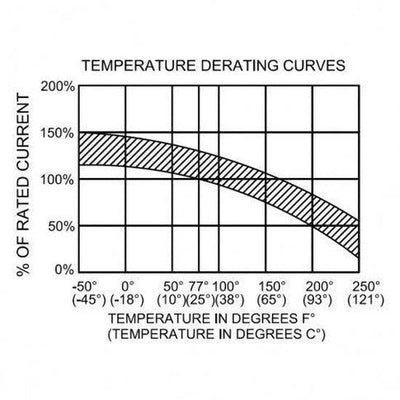

Please note that this circuit breaker is designed for surface mounting. You can download the Time vs Rated Current graph and Temperature derating graph for the Photonic Universe 60A Circuit breaker (CB60).
